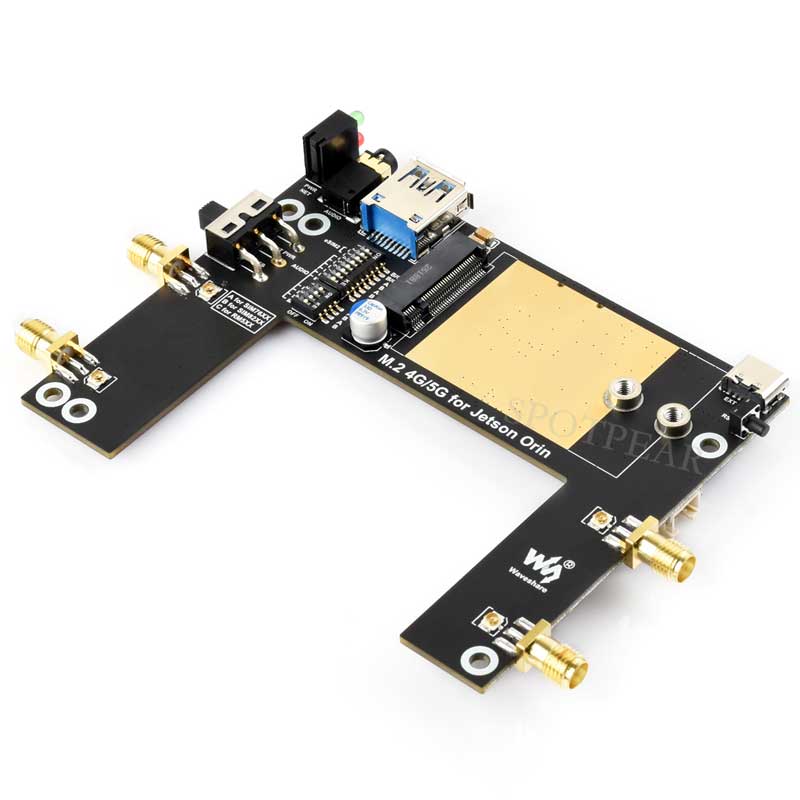

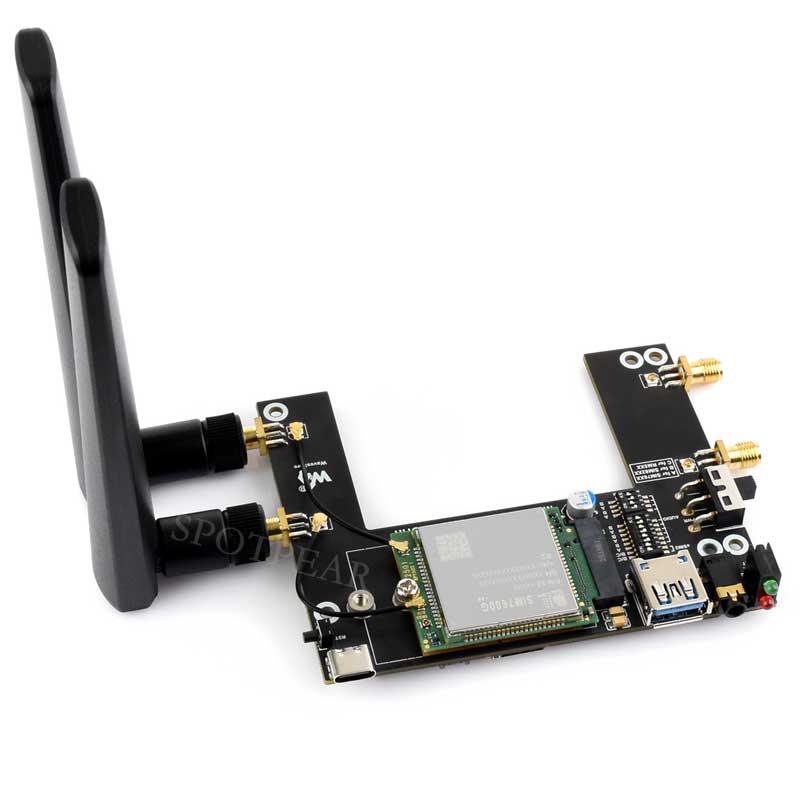

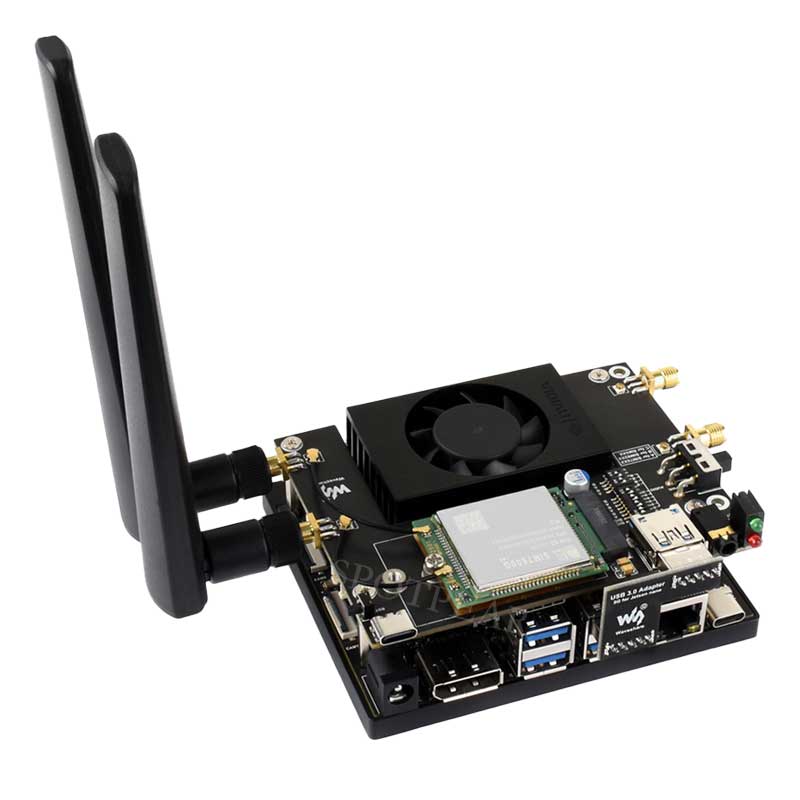

Jetson Orin 4G/3G/2G expansion board GNSS GPS SIM7600G-H-M.2
$70
Jetson Orin 4G communication expansion board supports 4G/3G/2G communication and GNSS positioning. It is compatible with all global platforms and includes the SIM7600G-H-M.2 4G communication module.

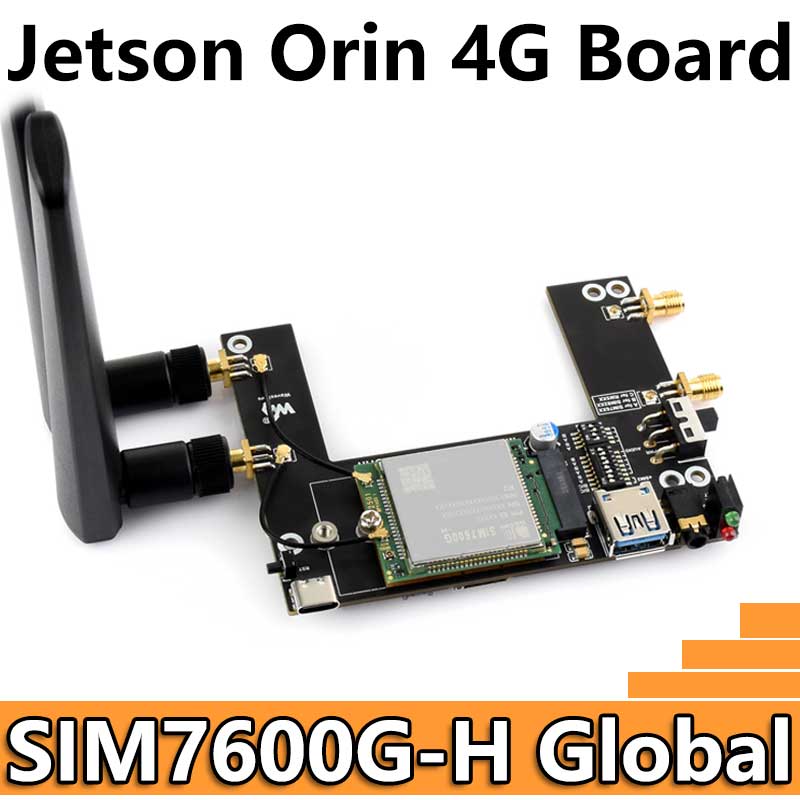

Jetson Orin 4G Board
Equipped with high-performance 4G global communication module
Supports 4G/3G/2G communications and GNSS positioning, universally applicable
Product Features
- Supports dial-up, phone calls, SMS, TCP, UDP, MQTT, HTTP(S), and FTP(S)
- Support GPS, Beidou, GLONASS, Galileo, QZSS and LBS base station positioning
- The onboard USB 3.1 interface is backward compatible with USB 2.0 and can be used to connect to the Jetson Orin motherboard, computer or Raspberry Pi for high-speed 4G Internet access.
- Onboard M.2 B KEY standard interface and pin setting switch, compatible with optional SIM8260X-M2 / SIM8262X-M2 / RM5XX / SIM7600 series modules
- Onboard 4-way SMA to IPEX antenna conversion interface, making antenna installation more convenient
- A UART pad interface is reserved to facilitate data transmission and other functions with some modules through this interface
- Onboard audio interface and audio decoding chip, can be used for voice operations such as making calls on SIMXXX series modules
- Onboard power switch, reset button and LED indicator light make it easy to control the module power on and off and check the operating status
- Onboard high-performance power circuitry capable of delivering up to 3A of current
Module parameter comparison
| 5G / 4G modules | SIM8260G-M2 | SIM8262E-M2 | RM520N-GL | SIM7600G-H-M.2 |
|---|---|---|---|---|
| Module Image |  |  |  |  |
| 5G Standards | 3GPP R16 | |||
| Chip Solutions | Qualcomm Snapdragon X62 | Qualcomm MDM9607 | ||
| Region/Operator | worldwide | Other regions except Americas | worldwide | |
| Module size (mm) | 30.0 × 52.0 × 2.3 | 30.0 × 42.0 × 2.3 | 30.0 × 52.0 × 2.3 | 42.0 × 31.4 × 3.8 |
| Operating frequency band | ||||
| 5G SA | n1, | n1, | n1, | - |
| 5G NSA | n1, | n1, | n1, | - |
| LTE-FDD | B1, | B1, | B1, | B1, |
| LTE-TDD | B34, | B38, | B34, | B34, |
| WCDMA | B1, | B1, | B1, | B1, |
| GNSS | GPS, GLONASS, BeiDou, Galileo, and QZSS | |||
| Data transfer rate | ||||
| Sub-6G SA | 2.5Gbps (DL) / 0.9Gbps (UL) | 2.4Gbps (DL) / 1Gbps (UL) | 2.4Gbps (DL) / 900Mbps (UL) | - |
| Sub-6G NSA | 3.47Gbps (DL) / 460Mbps (UL) | 3.4Gbps (DL) / 600Mbps (UL) | 3.4Gbps (DL) / 550Mbps (UL) | - |
| LTE | 1.6Gbps (DL) / 200Mbps (UL) | 150Mbps (DL) / 50Mbps (UL) | ||
| HSPA+ | 42Mbps (DL) / 5.76Mbps (UL) | |||
| Note: This table shows the models actually compatible. Please refer to the configuration list of the corresponding product SKU for the 5G module included in the package. If used with other 5G modules, confirm with the module manufacturer whether the interface and mode are supported, and the actual measurement shall prevail. | ||||
Supports 4G/3G/2G in global frequency bands
LTE Cat-4: up to 150Mbps downlink and 50Mbps uplink
3G (HSPA+): Up to 42Mbps downlink and 5.76Mbps uplink
2G (GPRS / EDGE): Up to 236.8Kbps downlink and 236.8Kbps uplink

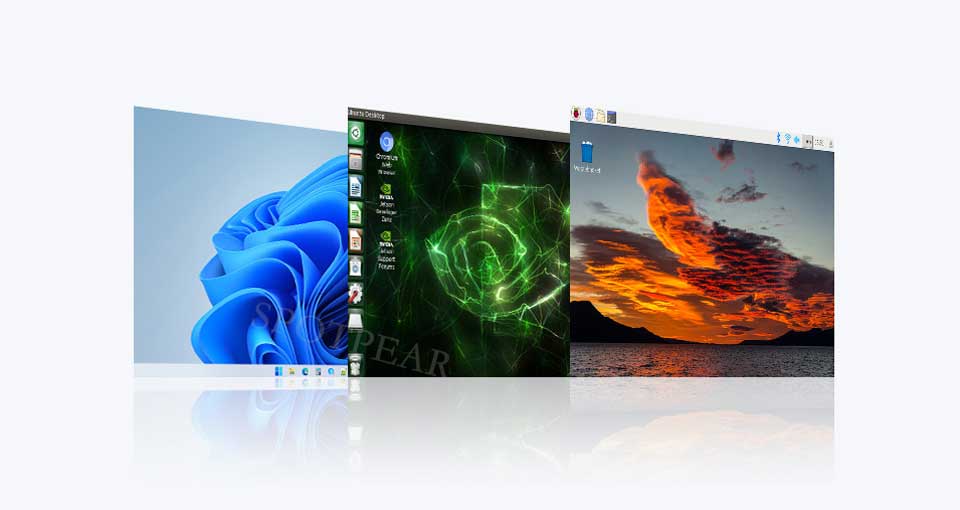

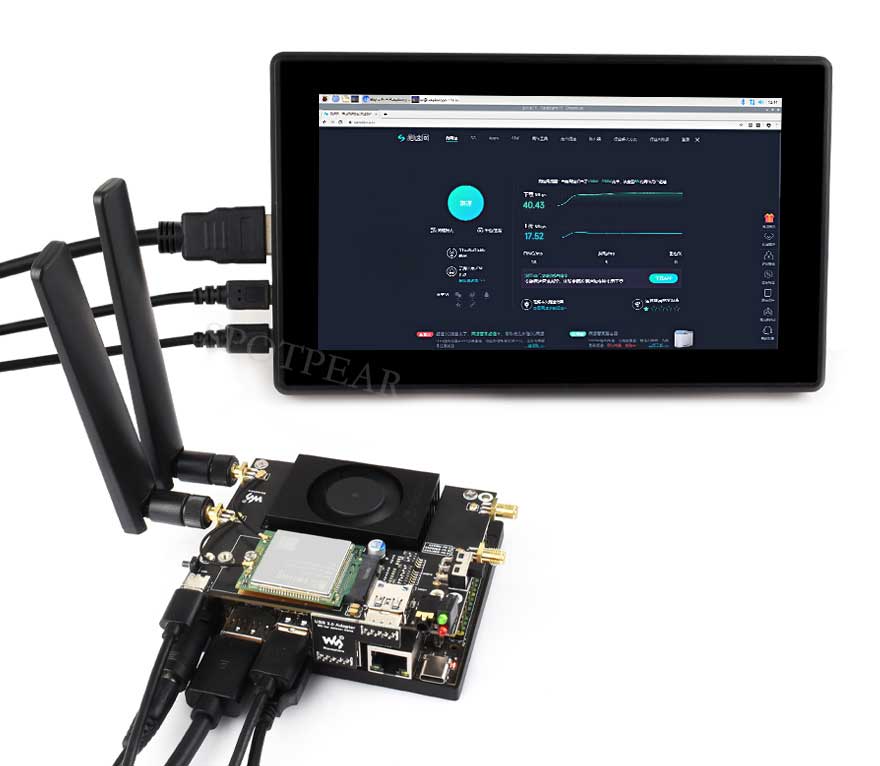

Multi-system compatible, easy to operate
Supports Windows 7/8/10/11, Ubuntu, Raspberry Pi OS, and OpenWRT. Simply plug in the USB port and configure it to connect to high-speed 4G network.

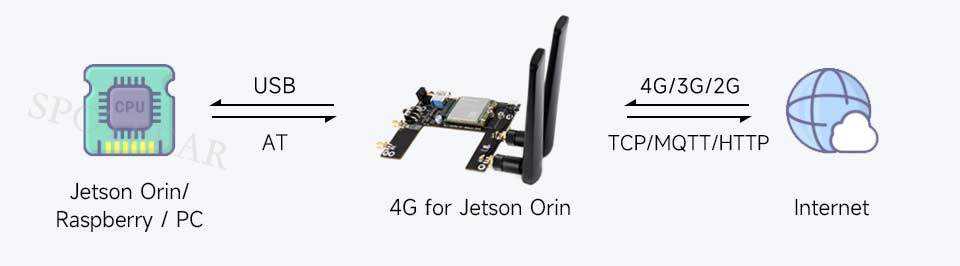

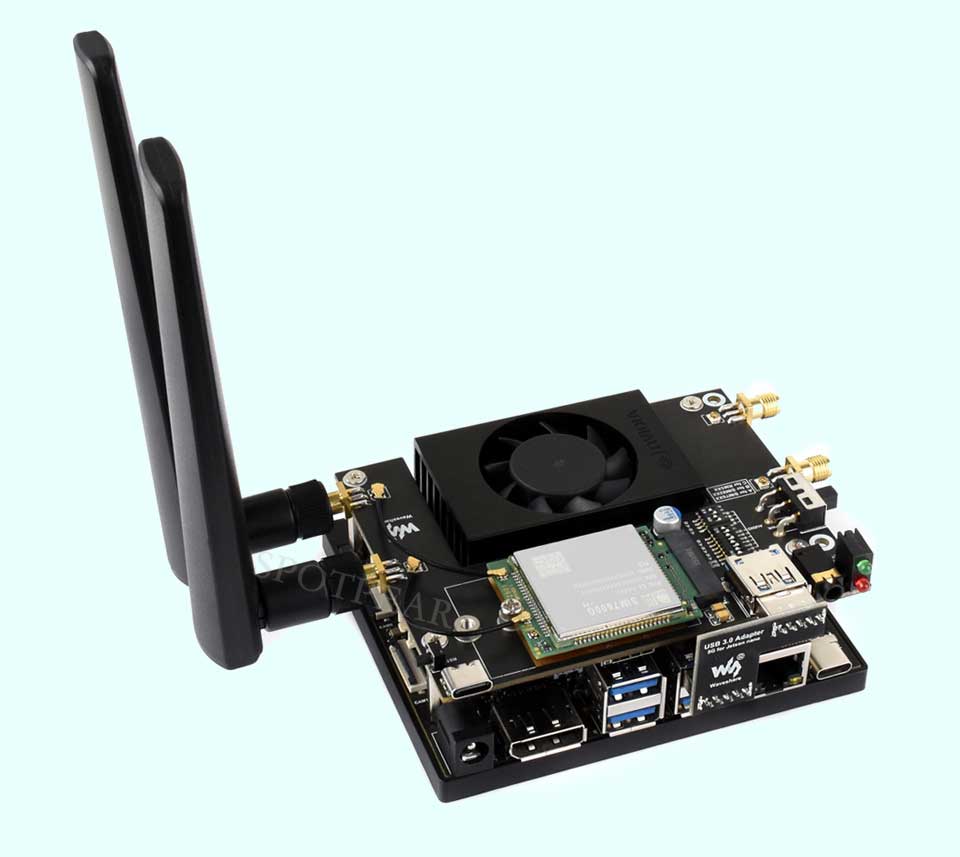

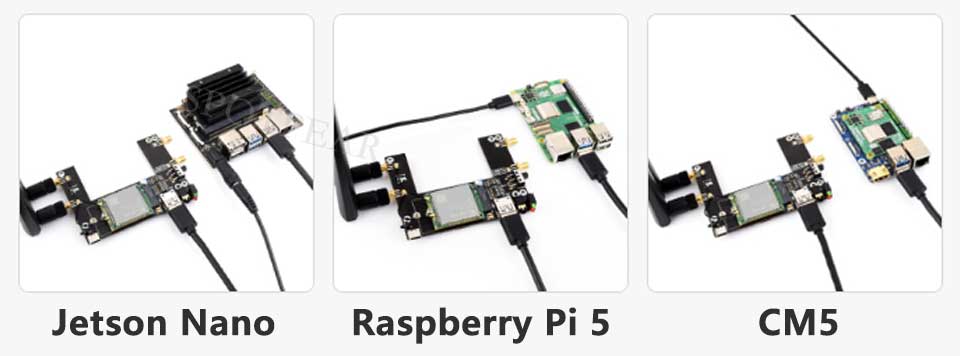

Device connection demonstration
It can be installed on Jetson Orin Nano and Jetson Orin NX boards to achieve network connectivity. A custom USB adapter is included. It supports connecting to Windows computers, Jetson Nano, Raspberry Pi 5/4B, and CM5/CM4 series boards via a dual-ended USB cable.
The above transmission rates are ideal. Actual speeds are affected by factors such as network coverage, network congestion, host performance, and base station deployment.
Images are for illustration purposes only. This product does not include a Raspberry Pi 5, CM5 expansion board, CM5 motherboard, Jetson Nano kit, or Jetson Orin kit. For detailed configuration, please refer to the product list.
Supports GNSS positioning
Support GPS, GLONASS, BeiDou, Galileo, QZSS and LBS base station positioning
Support cloud platform communication

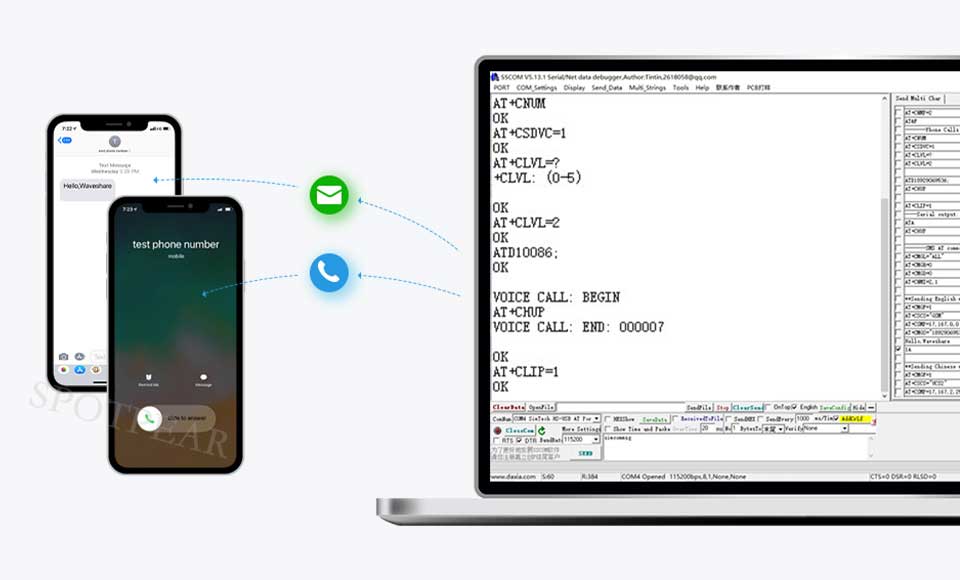

Support calling and sending text messages
Supports AT commands to make calls and send text messages, and can make calls through the headset interface

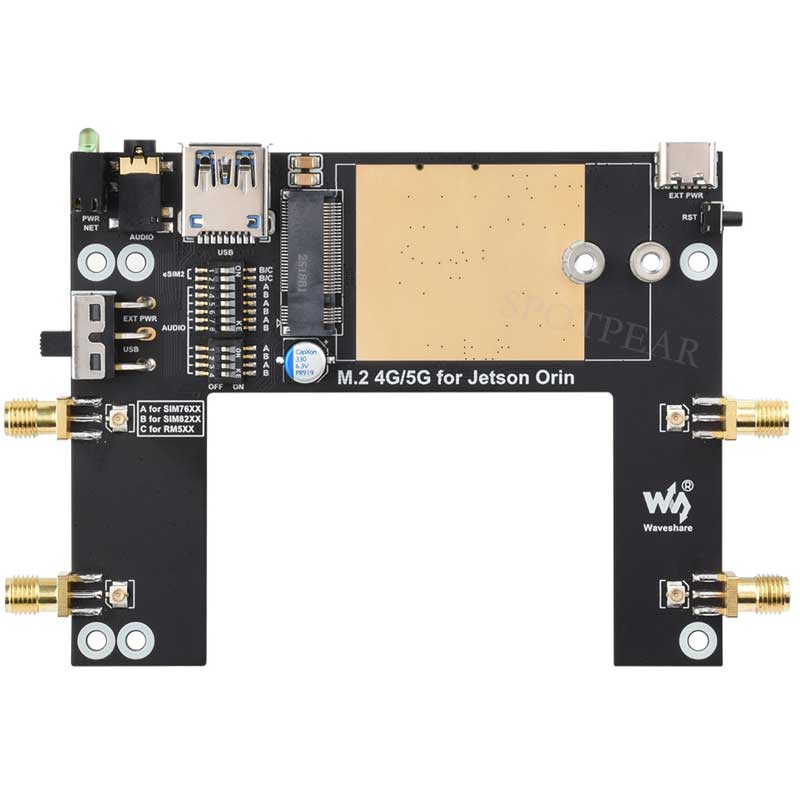

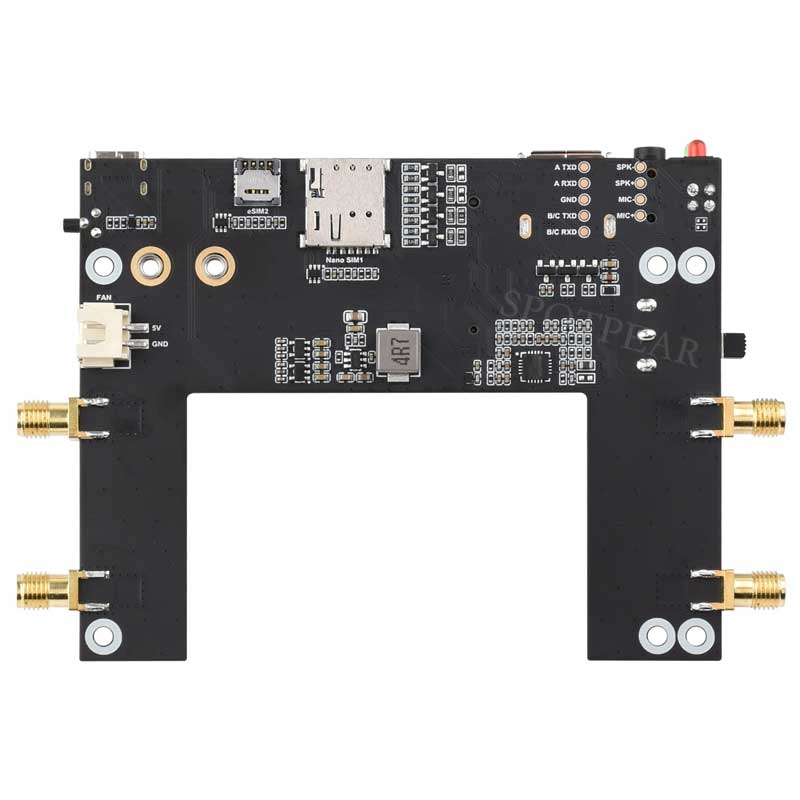

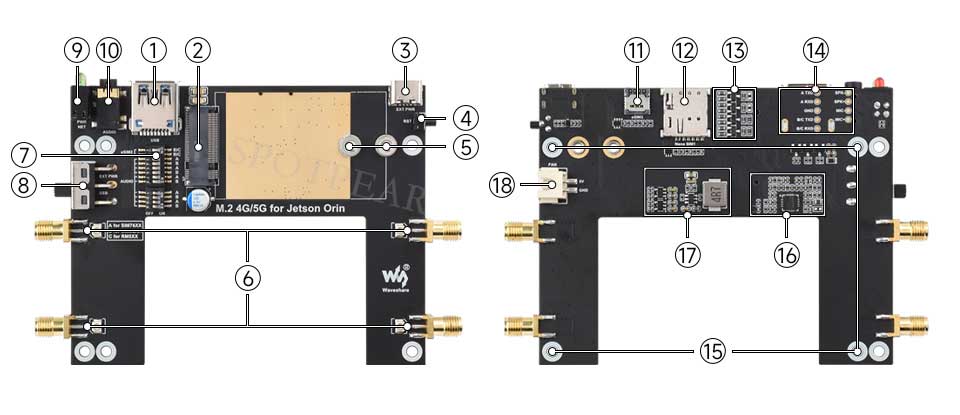

Resource Introduction
- USB 3.1 port
Backward compatible with USB 2.0, can be used to connect to various motherboards
- M.2 interface
Compatible with most SIMCom and QUECTEL M.2 packages for 4G/5G modules
- USB Type-C port
5V 3A input, stable and flexible power supply
- Reset switch
One-button reset
- Module fixing hole
Supports 3042/3052 package modules
- Antenna interface
Onboard four antennas
- Module setting switch
A silkscreen switch turned to ON, can be used for SIM7600X / A7906X / SIM7906X / SIM7912X series 4G M.2 modules
B. Turn the silkscreen switch to ON and it can be used with SIM8202X / SIM8200EA / SIM8262X / SIM8260X series 5G M.2 modules.
C silkscreen switch turned to ON, can be used with RM520N-GL / RM530X / EM06X series 5G / LTE-A M.2 modules
- Power switch
If set to USB, the module will be powered by "① USB3.1 interface"
If set to EXT PWR, the module will be powered by the external power supply through the "③ USB Type-C port"
- pilot lamp
Conveniently view the module operation status
- Audio Interface
SIM82XX and SIM7600X series support audio function, but RM5XX series does not support this audio function.
- eSIM card slot
Can be configured and selected through AT commands. Applicable to SIM8XXX, RM5XX and EM06XX series modules. Does not support SIM7600X series modules.
- Nano SIM card slot
Please turn off the power before installing or removing the SIM card.
- Level conversion circuit
- Reserved UART and audio interface pads
- Mounting holes
Mounted to Jetson Orin with screws
- Audio driver circuit
- Power supply circuit
- Fan connector
Can be used to connect to a 5V cooling fan

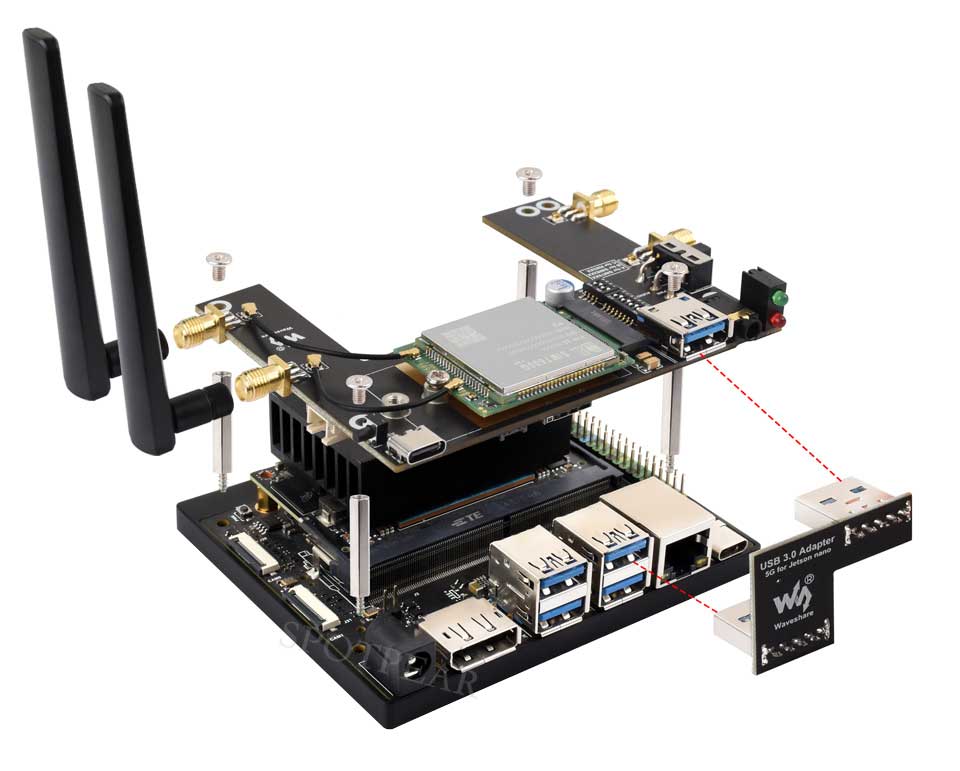

Installation Instructions

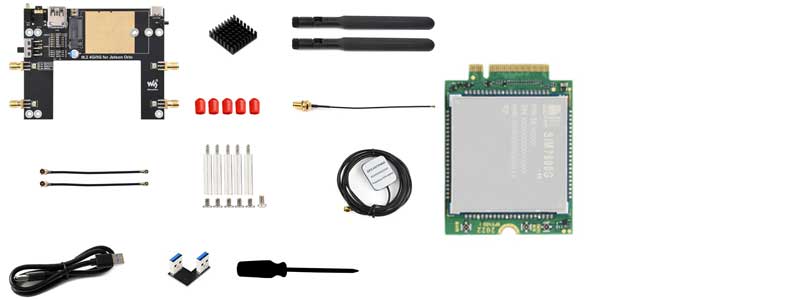

The pictures are for display only. Please refer to the configuration list for detailed configuration.

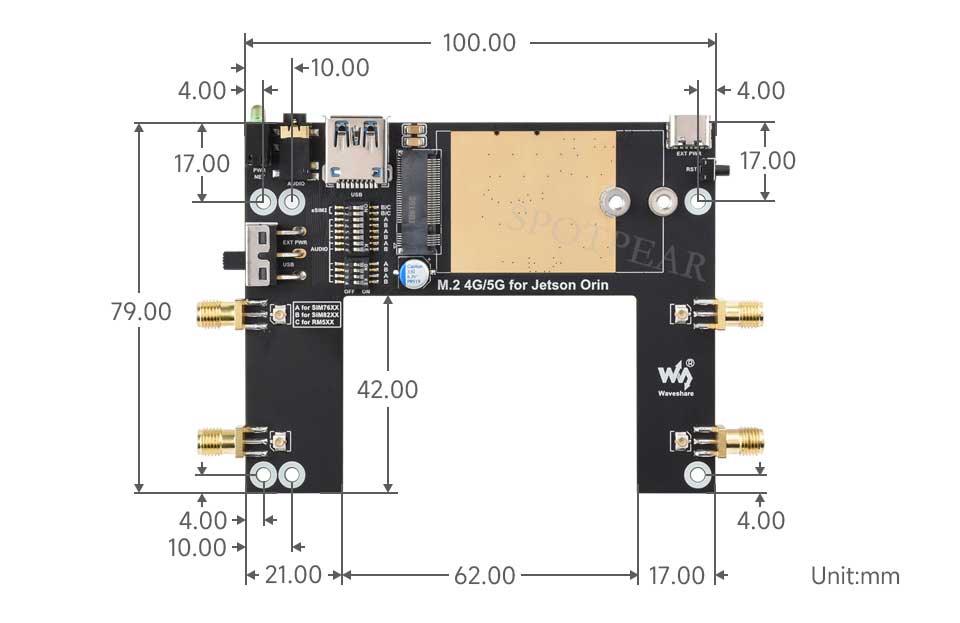

Product size
