Industrial CAN FD RS232/RS485 bidirectional converter CAN2.0A/B

Industrial CAN FD RS232/RS485 bidirectional converter CAN2.0A/B

$39.9

Brand：SpotPear

SKU：020310100000

Date：2025-11-03 10:29

Part Number：

CAN FD TO RS232/RS485

No：

- +

In Stock

Buy It Now

Add to cart

Ask a Question

Copy Link

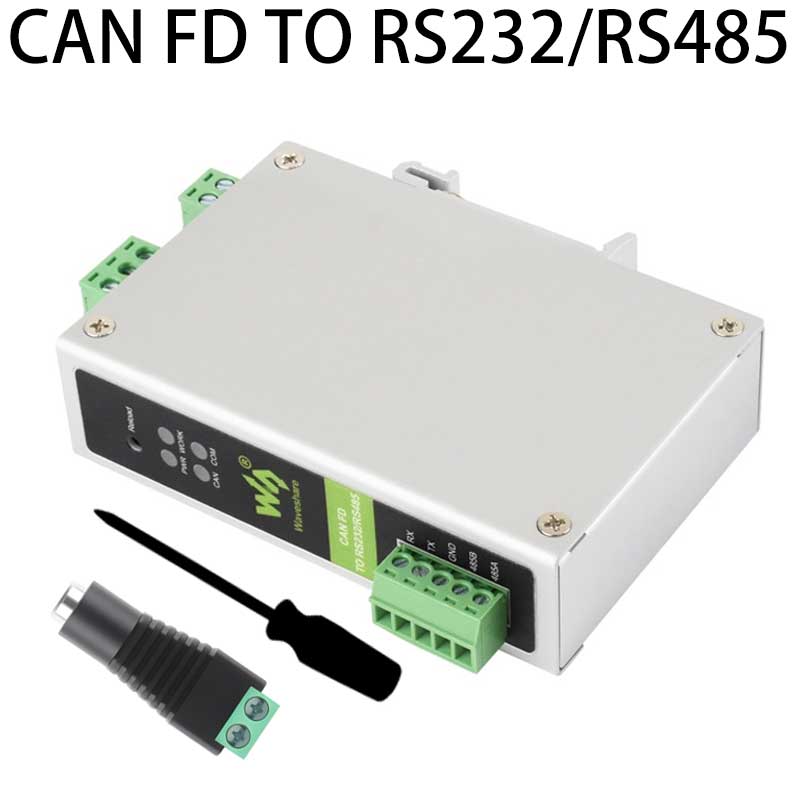

CAN FD Protocol Converter: Bidirectional Conversion Between CAN FD and RS232/RS485, Supports 5 Conversion Modes, Compatible with CAN 2.0A/2.0B Protocols, DIN Rail Mountable

CAN FD Protocol Converter

CAN FD Protocol | 5 Data Conversion Modes | Industrial Performance

Features At A Glance

The CAN FD TO RS232/RS485 is a DIN-rail CAN FD to RS232/RS485 bidirectional converter, featuring high-speed, low-latency, stable performance, ease of use, and cost-effectiveness. It supports five data conversion modes: transparent conversion, transparent conversion with ID, standard protocol conversion, Modbus protocol conversion, and custom protocol conversion. Enables interconnection between CAN and serial devices, compatible with CAN FD and CAN 2.0A/2.0B protocols.

Features industrial-grade design, supports -40°C ~ 85°C stable working, 9V ~ 36V wide power input, 5Kbps~1Mbps CAN FD arbitration domain baud rate, and 100Kbps~5Mbps CAN FD data domain baud rate.

Supports parameter configuration via host computer, built-in 120Ω terminal resistors (switchable via DIP switches), supports DIN-rail mounting, easy to configure and install.

Specifications

CLASSIFY	PARAMETER	DESCRIBE
PARAMETER	WORKING VOLTAGE	DC 9V ~ 36V, recommended use 12V 1A
	SIZE	110 × 27 × 85.6 (mm)
	WAY TO INSTALL	DIN-rail installation
	RELOAD BUTTON	Long press to restore factory settings
	INDICATOR LIGHT	POWER, WORK, COM and CAN
INTERFACE PARAMETERS	CAN PORT SPECIFICATION	1-ch CAN port, supports CAN FD, compatible with CAN 2.0A/2.0B
	CAN PORT BAUD RATE	Arbitration domain baud rate: 5Kbps ~ 1Mbps Data domain baud rate: 100Kbps ~ 5Mbps
	TERMINAL RESISTOR	Built-in 2 × 120Ω terminal resistors, Switching either DIP switch to ON connects one 120 Ω resistor in parallel. Switching both to ON connects two 120Ω resistors in parallel
	SERIAL PORT SPECIFICATION	Supports 1-ch RS485 or RS232
WORK ENVIRONMENT	WORKING TEMPERATURE	-40℃ ～ 85℃
	STORAGE TEMPERATURE	-40℃ ～ 105℃
	WORKING HUMIDITY	5% ～ 95% RH (no condensation)
	STORAGE HUMIDITY	5% ～ 95% RH (no condensation)
SOFTWARE FUNCTION	MODBUS GATEWAY	CAN FD to Modbus RTU (Master/Slave)
	SEND THE MESSAGE	Supports 64 transmission messages
	RECEIVE MESSAGES	Supports 64 receiving messages
	PROTOCOL CONVERSION	Transparent conversion, transparent conversion with ID, standard protocol conversion, Modbus protocol conversion, and custom protocol conversion
	CAN ID	Supports standard frame and extended frame
	FRAME ID FILTERING	Supports only standard frames, only remote frames, and custom input frame ID (up to 32 groups)
	CHANGE DIRECTION	Supports bidirectional conversion, only serial port to CAN, and only CAN to serial port;
	FIRMWARE UPGRADE	Supports the host computer for firmware upgrade
	PARAMETER CONFIGURATION	AT instruction and host computer software configuration
PROTECTION PARAMETERS	ESD PROTECTION	Air discharge: 8 KV, Contact discharge: 6 KV
	EFT/BURST	Power circuit: 2KV; RS485/RS232 circuit: 1KV; CAN circuit: 1KV
	SURGE IMMUNITY TEST	Power circuit: 1KV differential mode, 2KV common mode; CAN circuit: 2KV common mode

Basic Function

Supports CAN FD To RS232/RS485 Bidirectional Data Communication

Arbitration Domain Baud Rate

CAN FD Arbitration Domain Baud Rate : 5Kbps ~ 1Mbps

Data Domain Baud Rate

CAN FD Data Domain Baud Rate：100Kbps ~ 5Mbps

Industrial-Grade Design

Supports Multiple Conversion Modes

Transparent Conversion, Transparent Conversion With ID, Standard Conversion, Modbus Protocol Conversion, And Custom Frame Headers And Trailers Conversion

Transparent Conversion

Achieve Original Conversion Between CAN FD Frames And Serial Frames

Transparent Conversion With ID

Transfer The ID Information In Serial Frames To CAN FD Frames

Standard Conversion

Conversion Between 13-Byte Standard CAN Frame Format And 69-Byte Standard CAN FD Frame Format

Modbus Protocol Conversion

Realize Modbus Data Transmission Over CAN Bus Through Packet Segmentation And Reassembly

Custom Protocol Conversion

Users Can Customize Frame Headers And Trailers To Enable Bidirectional Data Conversion

3 Frame Filtering Methods, 32 Sets Of Configurable Filters

Supports Only Receive Extended Frame, Only Receive Standard Frame, And Custom Receive Frame ID. In Custom Mode, Users Can Set Up To 32 Sets Of Filter Methods To Avoid Large Amounts Of Data Interference

Configuration Parameters Via Host Computer

Application Scenarios

Interface Introduction

Outline Dimensions
