ESP32-C6-Zero-B Mini Wi-Fi 6
Wide Voltage Development Board

Based on ESP32-C6FH8, onboard multi-function GPIO pins

Castellated Module, Suitable For SMD Applications,
Compatible With The ESP32-C6-Zero Pins

Board Specifications

• Equipped with a high-performance 32-bit RISC-V processor with clock speed up to 160 MHz, and a low-power 32-bit RISC-V processor with clock speed up to 20MHz
• Built-in 320KB ROM, 512KB HP Static RAM, 16KB LP Static RAM and 8MB Flash memory
• Integrated Wi-Fi 6, Bluetooth 5 and IEEE 802.15.4 (Zigbee 3.0 and Thread) wireless communication, with superior RF performance
• Onboard ceramic antenna (default) and IPEX 4 antenna socket, allowing antenna selection via GPIO7
• Supports 5 ~ 36V wide voltage power supply for industrial applications
• Castellated module, allows soldering directly to carrier boards
• Supports flexible clock, module power supply independent setting, and other controls to realize low power consumption in different scenarios
• Onboard USB Type-C port, adapting 22 × GPIO pins for flexible peripheral function configuration

Version Options

ESP32-C6 Suitable For AIoT Applications

Powered By A High-Performance 32-Bit RISC-V Processor And A Low-Power 32-Bit RISC-V Processor, The Main Frequency Is Up To 160 MHz, Powerful AI Computing Capability & Reliable Security Features

Wi-Fi 6 And BLE 5 Support

Supports Wi-Fi 6, Bluetooth 5 And IEEE 802.15.4 (Zigbee 3.0 And Thread)
Its Bluetooth Low Energy Subsystem Supports Bluetooth 5 (LE) And Bluetooth Mesh

Supports ESP-IDF, Arduino

Comprehensive SDK, Dev Resources, Tutorials To Help You Easily Get Started

What's On Board

1. ESP32-C6FH8
   Built-in dual processors, up to 160MHz operating frequency
2. SY8301
   Step-down DC/DC converter , supports up to 1A output
3. USB Type-C port
   for downloading program and debugging
4. WS2812 cool RGB LED
5. BOOT button
   Press it and then press the RESET button to enter download mode



6. RESET button
7. 2.4G ceramic antenna
8. Antenna selection chip
   supports switching between the onboard ceramic antenna (default) and the IPEX 4 antenna socket via GPIO7
9. IPEX 4 antenna socket
   for connecting external antenna
10. Adapting ESP32-C6FH8 pins

Pin Definition

Outline Dimensions

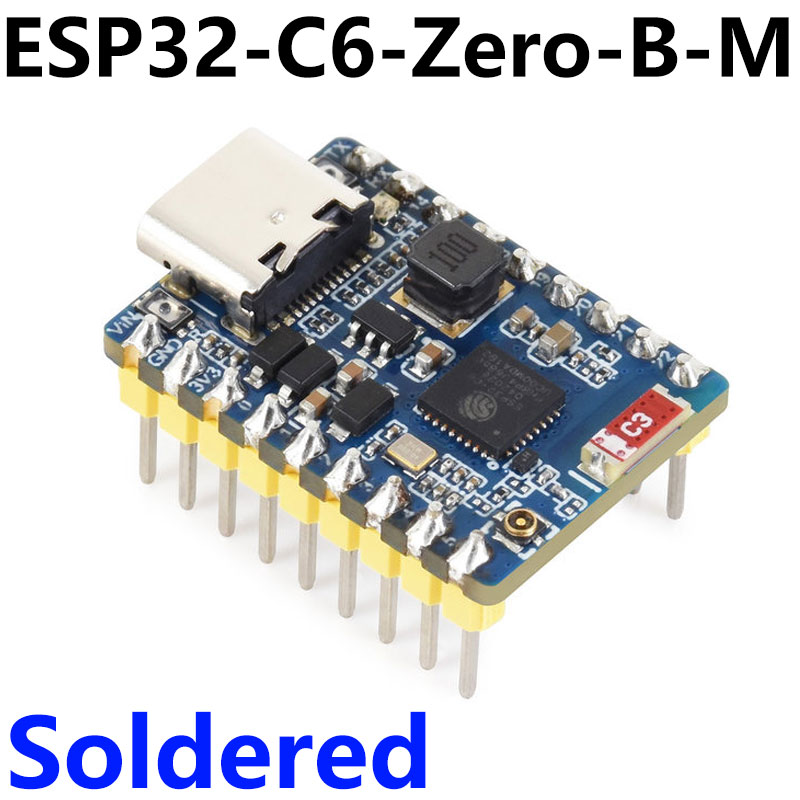

[] ESP32-C6-Zero-B

[] ESP32-C6-Zero-B-M
