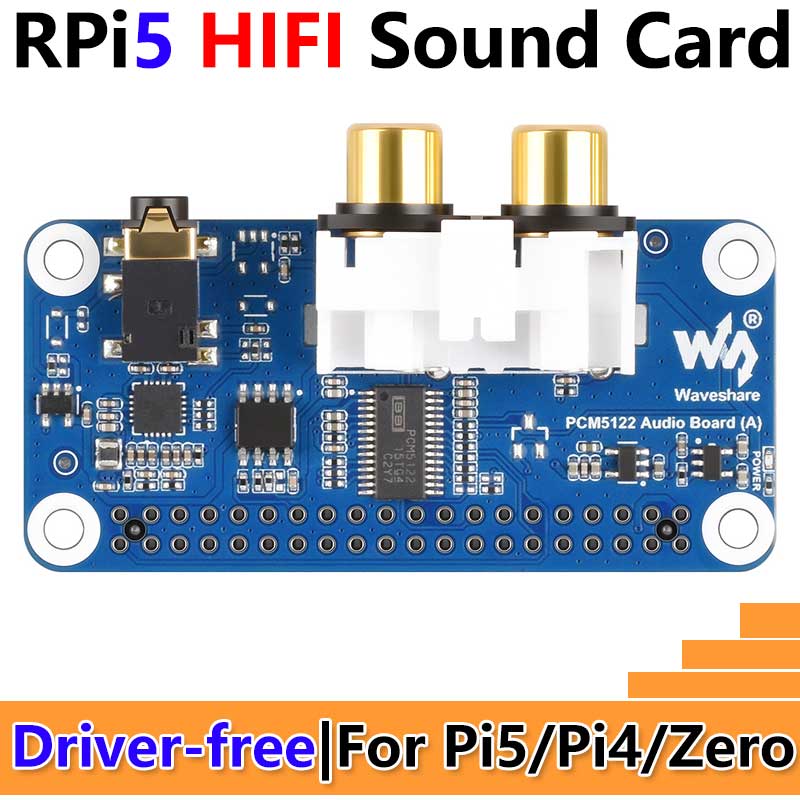

Raspberry Pi PCM5122 I2S DAC HIFI Sound Card DAC Audio expansion Board Free-Driver For PI5/PI4/Zero

Raspberry Pi PCM5122 I2S DAC HIFI Sound Card DAC Audio expansion Board Free-Driver For PI5/PI4/Zero

$10.9

Brand：SpotPear

SKU：010314600000

Date：2025-08-16 14:01

Part Number：

PCM5122 Audio Board (A)

No：

- +

In Stock

Buy It Now

Add to cart

Ask a Question

Copy Link

Raspberry Pi PCM5122 HiFi I2S DAC Audio Sound Card Designed for Raspberry Pi Based on the Raspberry Pi 40-pin GPIO interface, stereo codec supports high-quality playback

Raspberry Pi PCM5122 Hi-Fi I2S DAC
Audio sound card

Audio sound card expansion board designed specifically for Raspberry Pi, with stereo codec and support for high-quality sound playback

My characteristics

Based on the Raspberry Pi 40PIN GPIO interface, suitable for Raspberry Pi series motherboards
Adopt PCM5122 professional stereo codec chip, controlled by I2C interface, and audio transmitted via I2S interface
Onboard standard 3.5mm headphone jack, you can play music through external headphones
Onboard RCA port, suitable for various working scenarios such as speakers and amplifiers
The maximum supported sampling frequency is 384KHz
Supports up to 32-bit resolution

Designed specifically for Raspberry Pi

Based on the Raspberry Pi 40PIN GPIO interface, suitable for Raspberry Pi series motherboards

The pictures are for display only. Please refer to the configuration list for detailed configuration.

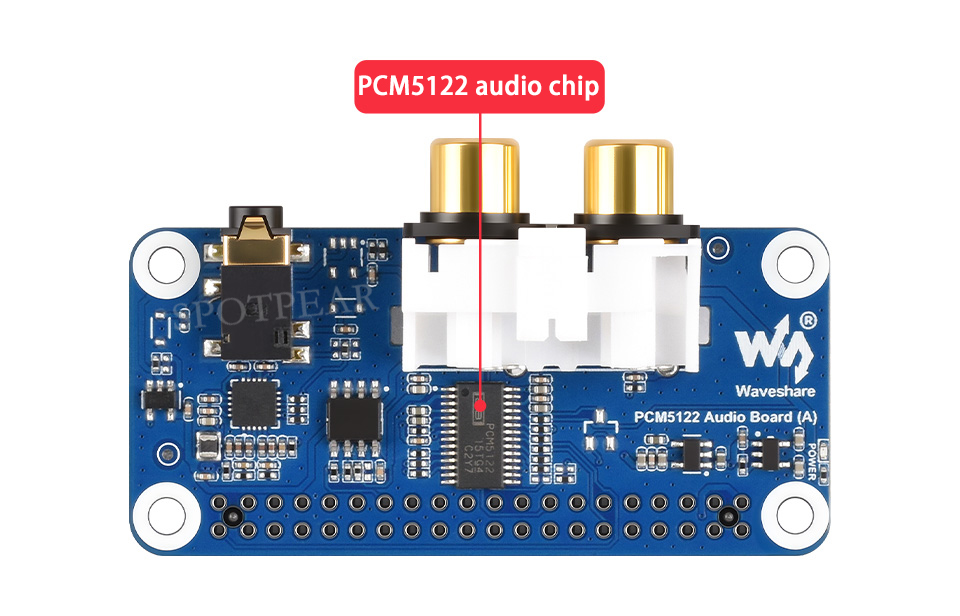

PCM5122 audio chip

Stereo decoder, controlled by I2C interface, audio transmitted via I2S interface

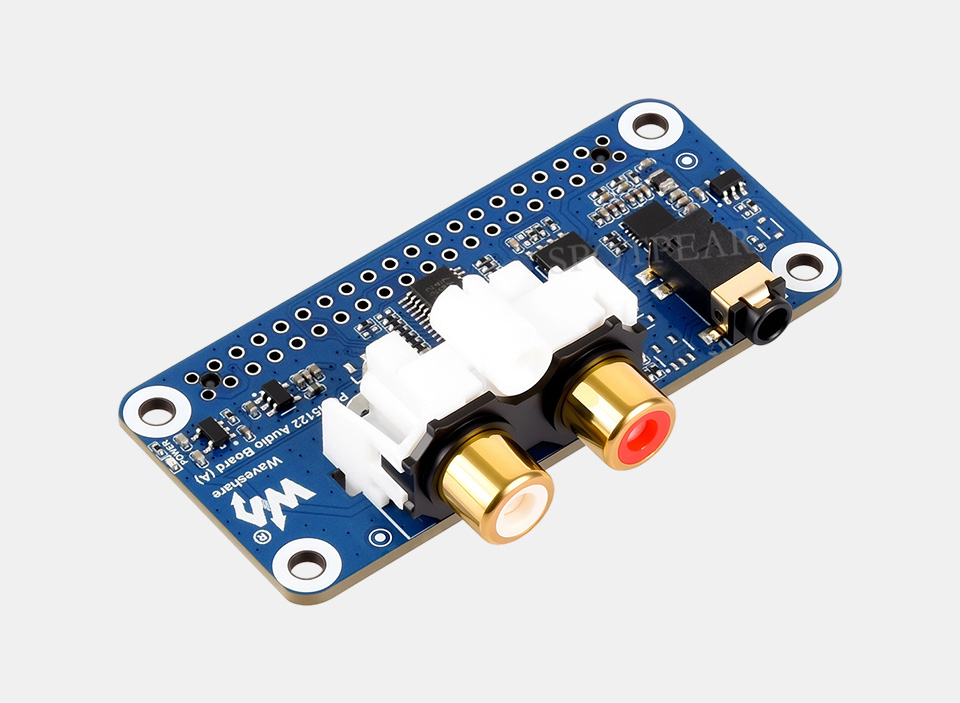

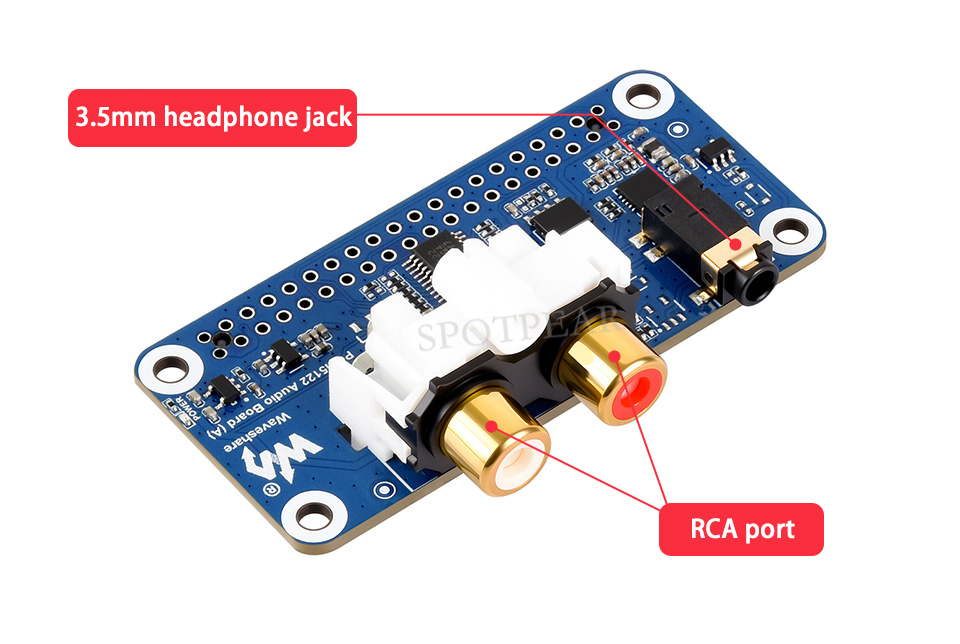

Onboard headphone and RCA ports

A standard 3.5mm headphone jack allows you to play music through external headphones.

You can also connect an external speaker or amplifier via the RCA port.

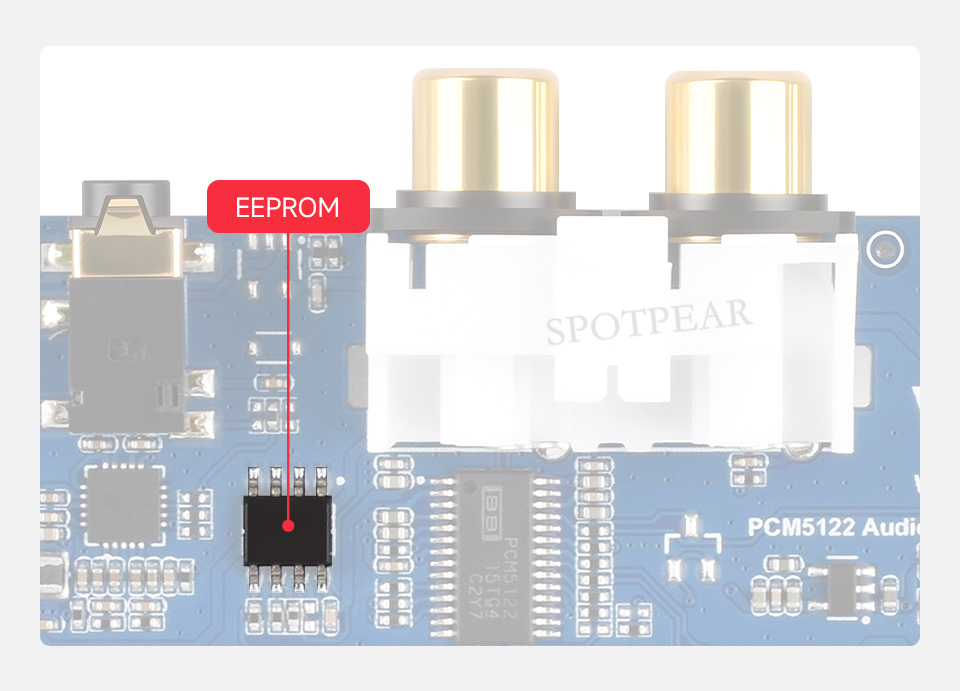

Onboard EEPROM firmware

Automatically load drivers for Raspberry Pi OS

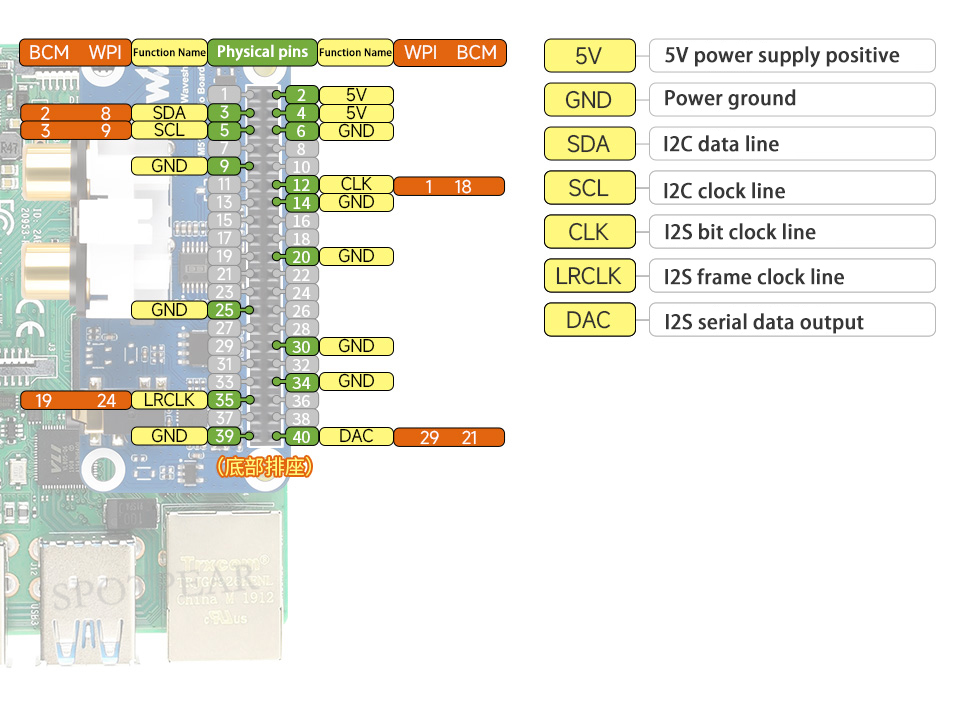

Interface Definition

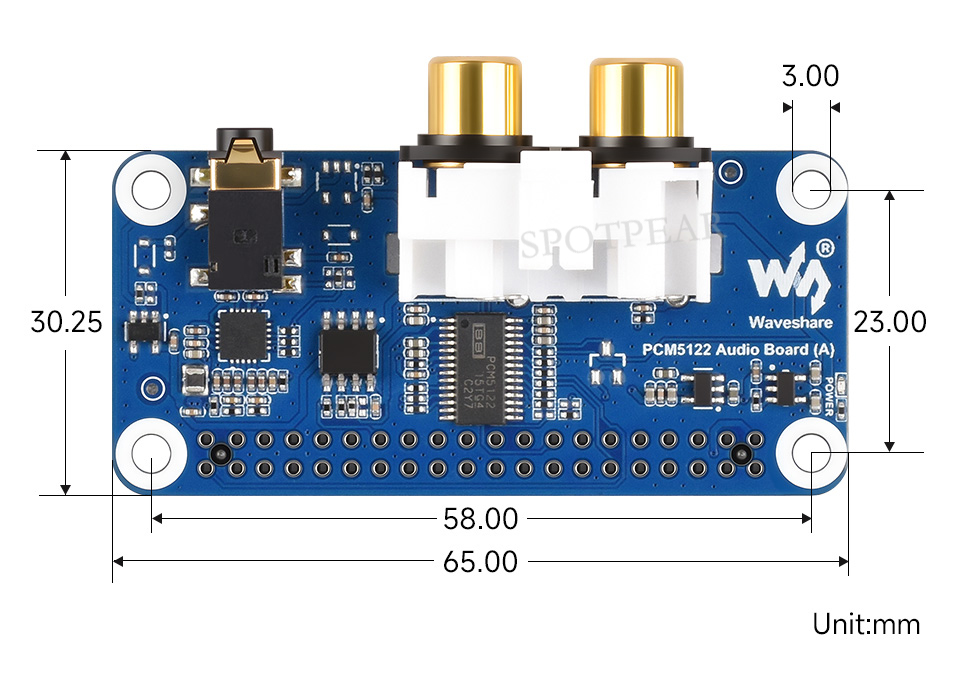

Product size

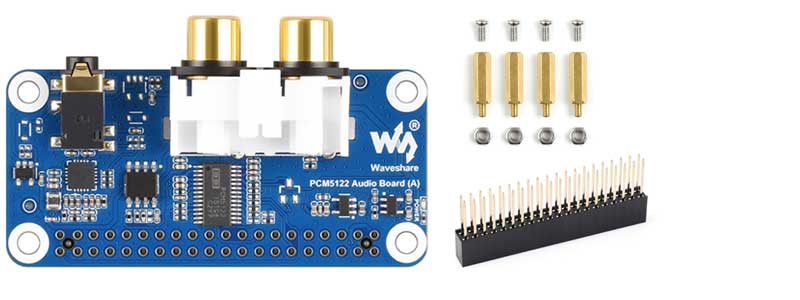

[] PCM5122 Audio Board (A)
