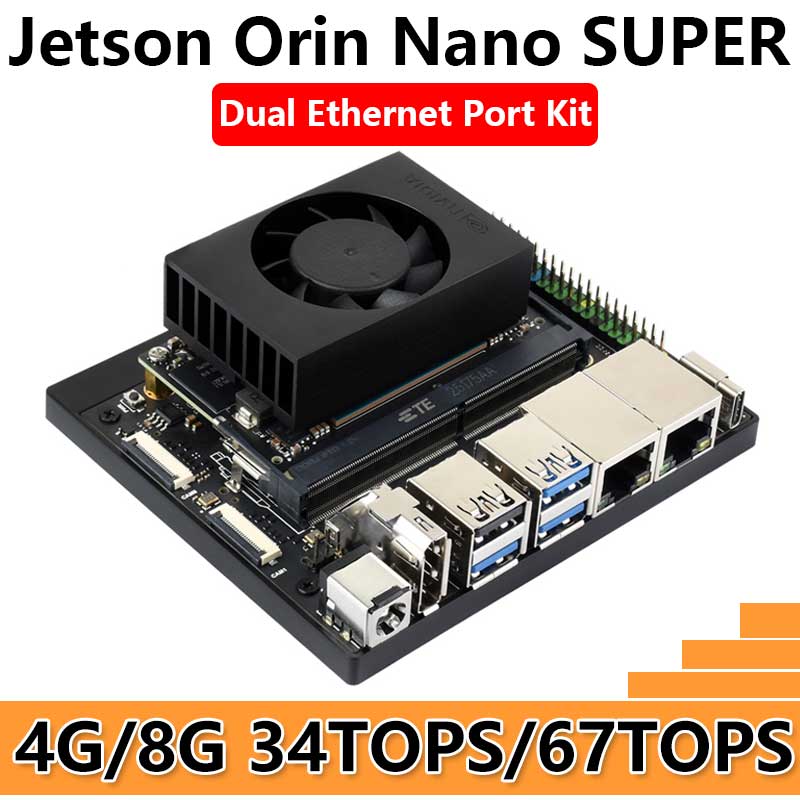

Jetson Orin Nano SUPER 4GB/8GB 34TOPS/67TOPS Dual Ethernet AI Development Board

Jetson Orin Nano SUPER 4GB/8GB 34TOPS/67TOPS Dual Ethernet AI Development Board

$527

Brand：SpotPear

SKU：050115200000

Date：2025-11-22 10:54

Part Number：

JETSON-ORIN-NANO-4G-ETH-DEV-KIT JETSON-ORIN-NANO-8G-ETH-DEV-KIT

No：

- +

In Stock

Buy It Now

Add to cart

Ask a Question

Copy Link

Jetson Orin Nano AI SUPER Developer Dual Ethernet Port KitSuitable for Embedded Systems and Edge SystemsBuilt-in Jetson Orin Nano 4GB VRAM Core Board

Jetson Series Recommend

Jetson-Nano-Module

Jetson-TX2-NX

Jetson-Xavier-NX-8GB/16GB

Jetson-Orin-Nano-4GB/8GB

Jetson-Orin-NX-8GB/16GB

Jetson-Nano-Developer-Kit-(B01)

JETSON-NANO-DEV-KIT

JETSON-TX2-NX-DEV-KIT

Jetson-Xavier-NX-Developer-Kit

JETSON-XAVIER-NX-DEV-KIT

Jetson-Orin-Nano-Developer-Kit

Jetson Orin Nano Super Developer Kit

NVIDIA Jetson Orin Nano Developer Kit 4GB/8GB AI 40Tops China-Kit For Embedded and Edge Systems

JETSON-ORIN-NANO-4G-ETH-DEV-KIT

JETSON-ORIN-NX-DEV-KIT

JETSON-ORIN-NX-8G-ETH-DEV-KIT

Jetson-AGX-Orin-Developer-Kit

Jetson AGX Thor Developer Kit

For Jetson NANO

For Xavier/TX2 NX

For Orin Nano/NX

JETSON-ORIN-NANO-ETH-DEV-KIT

Orin Nano Dual ETH Development Kit

This Is Not The N-VIDIA Official Developer Kit

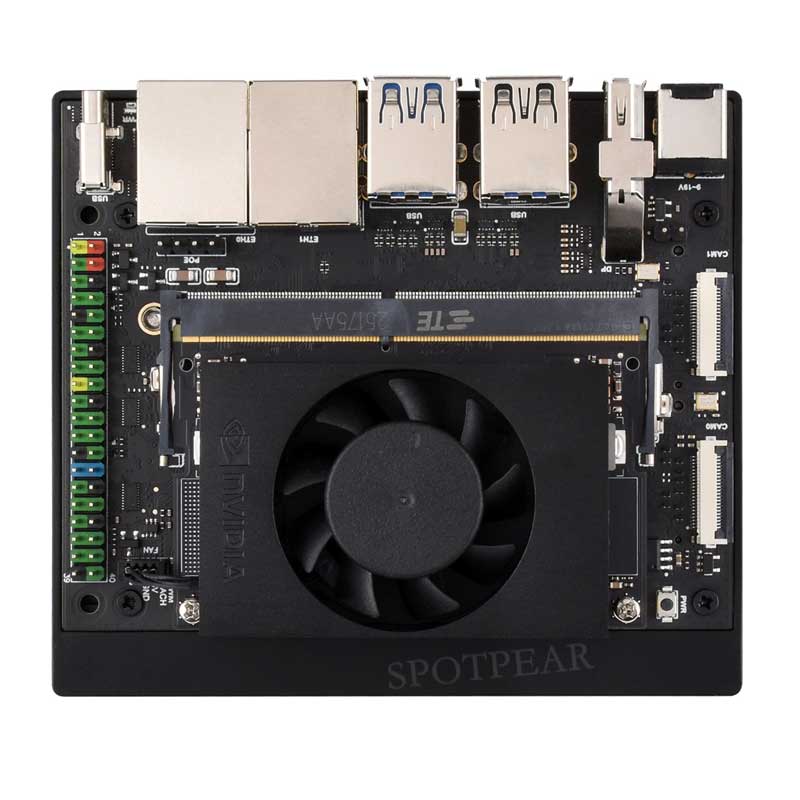

Based on Jetson Orin Nano Module, with JETSON-ORIN-IO-BASE-B base board, providing rich peripheral interfaces such as M.2, DP, USB, dual ETH ports, etc., which is more convenient for users to realize the product performance.

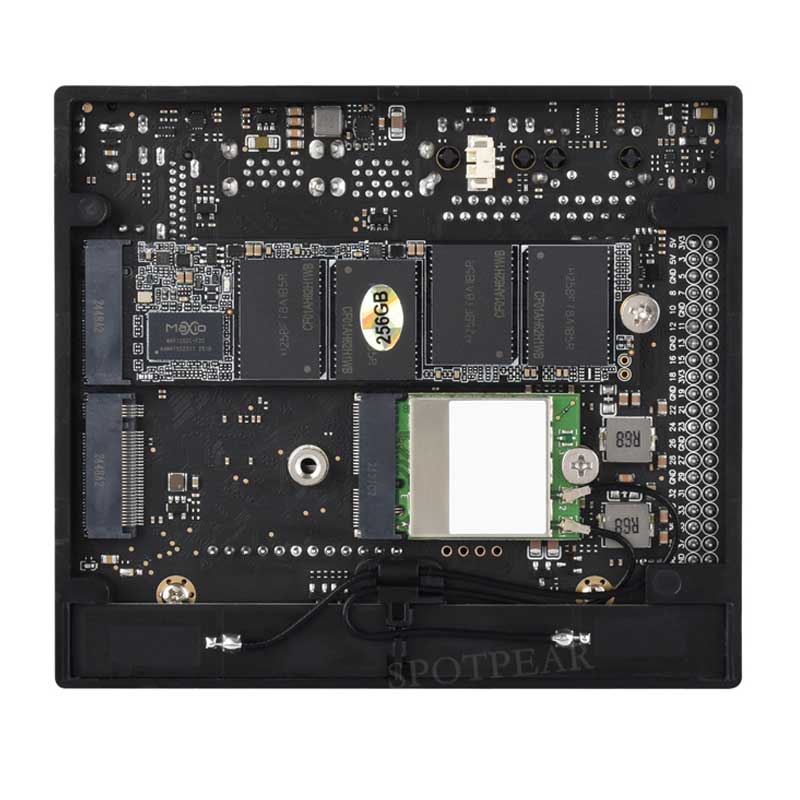

This kit includes the Orin Nano Module with options for 4GB / 8GB memory, no built-in storage module, provides up to 20 TOPS / 40 TOPS AI performance, and up to 34 TOPS / 67 TOPS after upgrading to the SUPER version. Comes with a 256GB NVMe Solid State Drive, high-speed reading/writing, meet the needs of large AI project development.

* for reference only, the actual appearance of the Solid State Drive may be different

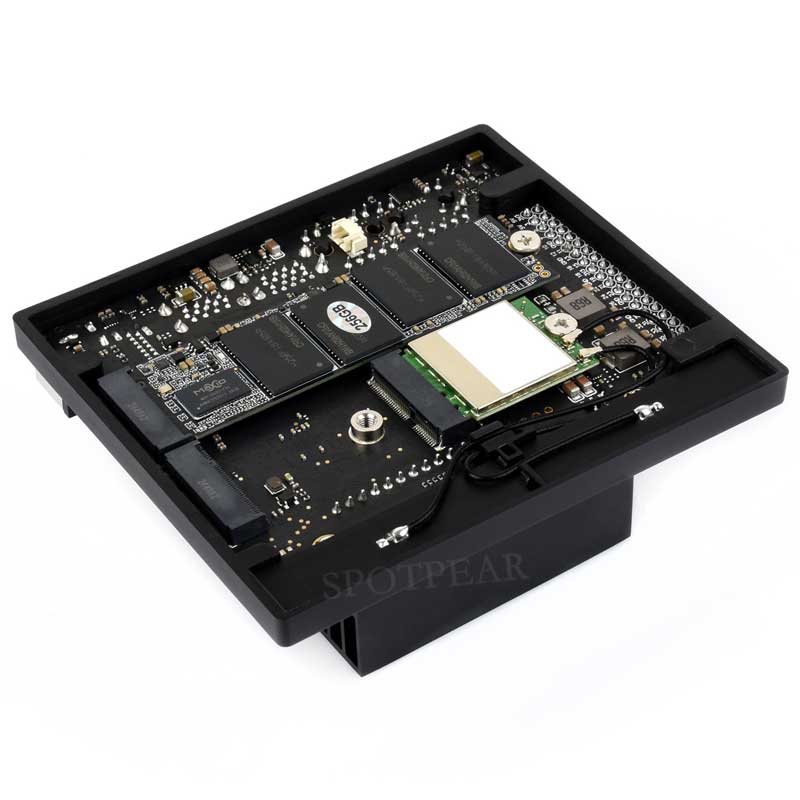

This kit also comes with a pre-installed dual-band wireless network card that supports Bluetooth 5.0 and dual-band WIFI, with two additional PCB antennas, for providing high-speed and reliable wireless network connection and Bluetooth communication.

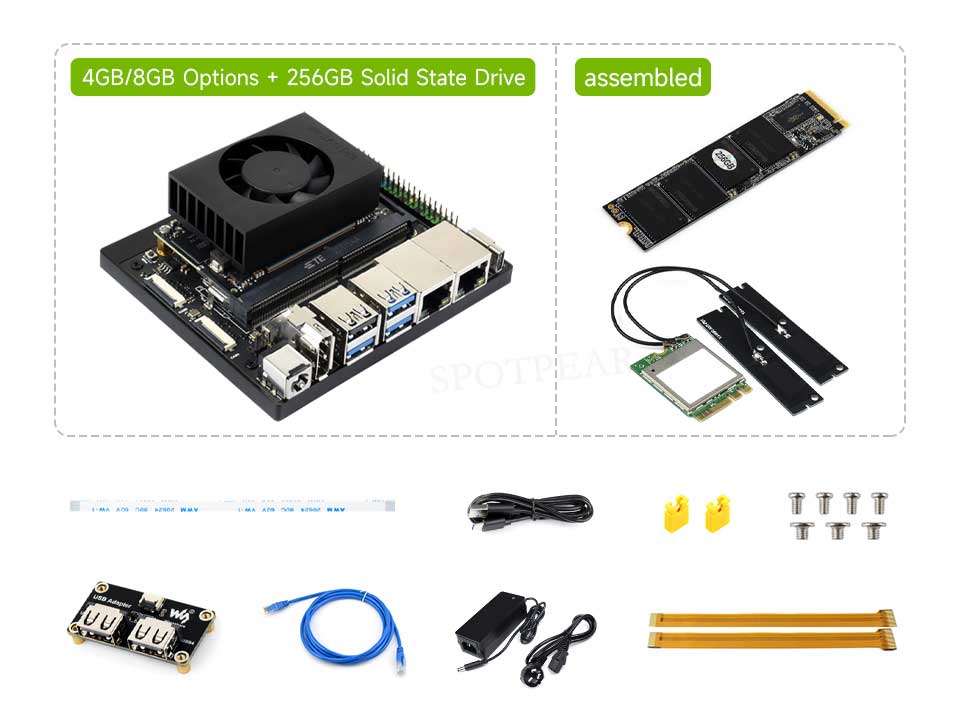

Kit Selection Guide

JETSON-ORIN-NANO-ETH-DEV-KIT

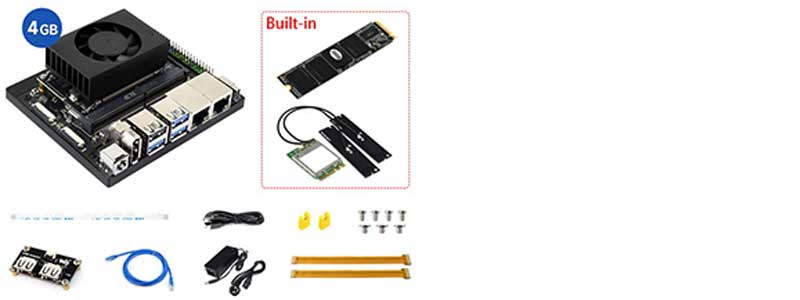

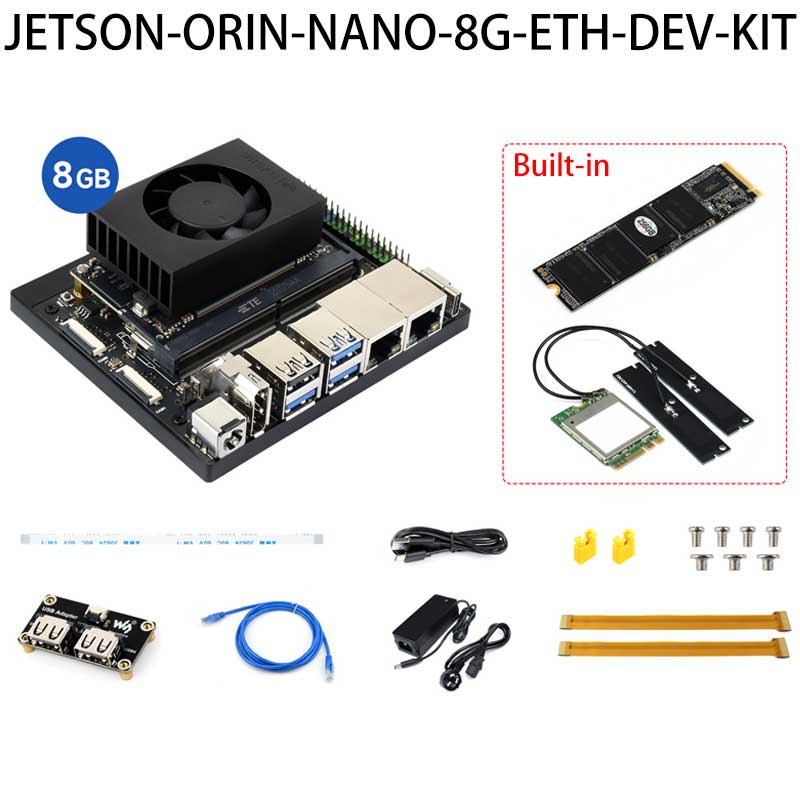

Includes Jetson Orin Nano Module (options for 4GB/8GB), JETSON-ORIN-IO-BASE-B base board, cooling fan, 256GB NVMe Solid State Drive, AW-CB375NF dual-band wireless network card, FFC cable, USB cable, USB expansion board, Network cable, power supply adapter, etc.

Parameter Comparison

MODULE	4GB Module SUPER	8GB Module SUPER
AI PERFORMANCE	34 TOPS (sparse) 17 TOPS (dense)	67 TOPS (sparse) 33 TOPS (dense)
GPU	512-core N-VIDIA Ampere architecture GPU with 16 Tensor Cores	1024-core N-VIDIA Ampere architecture GPU with 32 Tensor Cores
GPU FREQUENCY	1020MHz (Max)
CPU	6-core Cortex-A78AE v8.2 64-bit CPU, 1.5MB L2 + 4MB L3
CPU FREQUENCY	1.7GHz (Max)
MEMORY	4GB 64-bit LPDDR5, 51GB/s	8GB 128-bit LPDDR5, 102GB/s
STORAGE	Supports external NVMe
POWER	7 W \| 10 W \| 25W	7 W \| 15 W \| 25W
PCIE*	1 x4 + 3 x1 (PCIe 3.0, Root Port & Endpoint)
USB*	3x USB 3.2 2.0 (10 Gbps) 3x USB 2.0
CSI CAMERA	Up to 4 cameras (8 via virtual channels**)/ 8 lanes MIPI CSI-2/ D-PHY 1.2 (up to 20 Gbps)
VIDEO ENCODE	1080p30 supported by 1-2 CPU cores
VIDEO DECODE	1x 4K60 (H.265) 2x 4K30 (H.265) 5x 1080p60 (H.265) 11x 1080p30 (H.265)
DISPLAY	1x 8K30 multi-mode DP 1.4a (+MST)/eDP 1.4a/HDMI 2.1
OTHER	3x UART, 2x SPI, 2x I2S, 4x I2C, 1x CAN, DMIC & DSPK, PWM, GPIO
NETWORKING	1x GbE
DIMENSIONS	69.6 mm x 45 mm 260-pin SO-DIMM connector
* USB 3.2, MGBE, and PCIe share UPHY Lanes. See the Product Design Guide for supported UPHY configurations ** Virtual Channels for Jetson Orin Nano are subject to change

7 × USB Ports

4 × Type-A + 1 × Type-C + 2 × USB2.0 FFC connectors

Supports Connecting To More Peripherals, USB 3.2 Gen 2 Ports For Data Transmission Up To 10Gbps, Type-C Port Can Be Used For System Burning, And Onboard 2 × USB 2.0 FFC Connectors

Connect To CSI Camera

Expands 2 × CSI Camera Interfaces For AI Applications Such As Face Recognition, Road Sign Detection, Lane Line Detection, And License Plate Recognition

* for reference only, please refer to the package content for detailed part list.

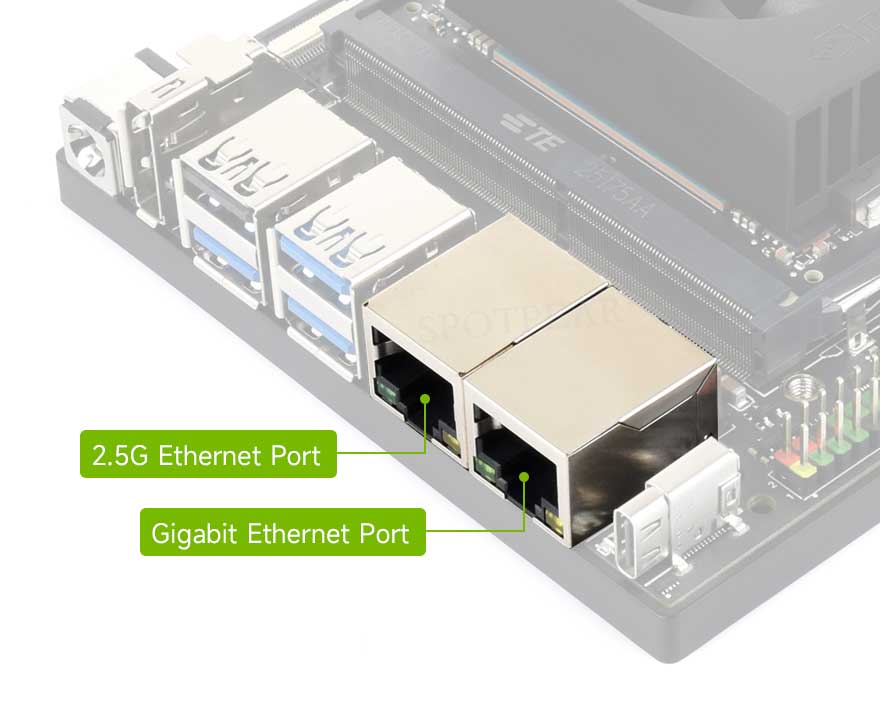

Onboard Dual Ethernet Ports

Expands 1 × RJ45 2.5G Ethernet Port And 1 × RJ45 Gigabit Ethernet Port

* for reference only, please refer to the package content for detailed part list.

4K High Definition Output

Supports DP High-Definition Port

* for reference only, please refer to the package content for detailed part list.

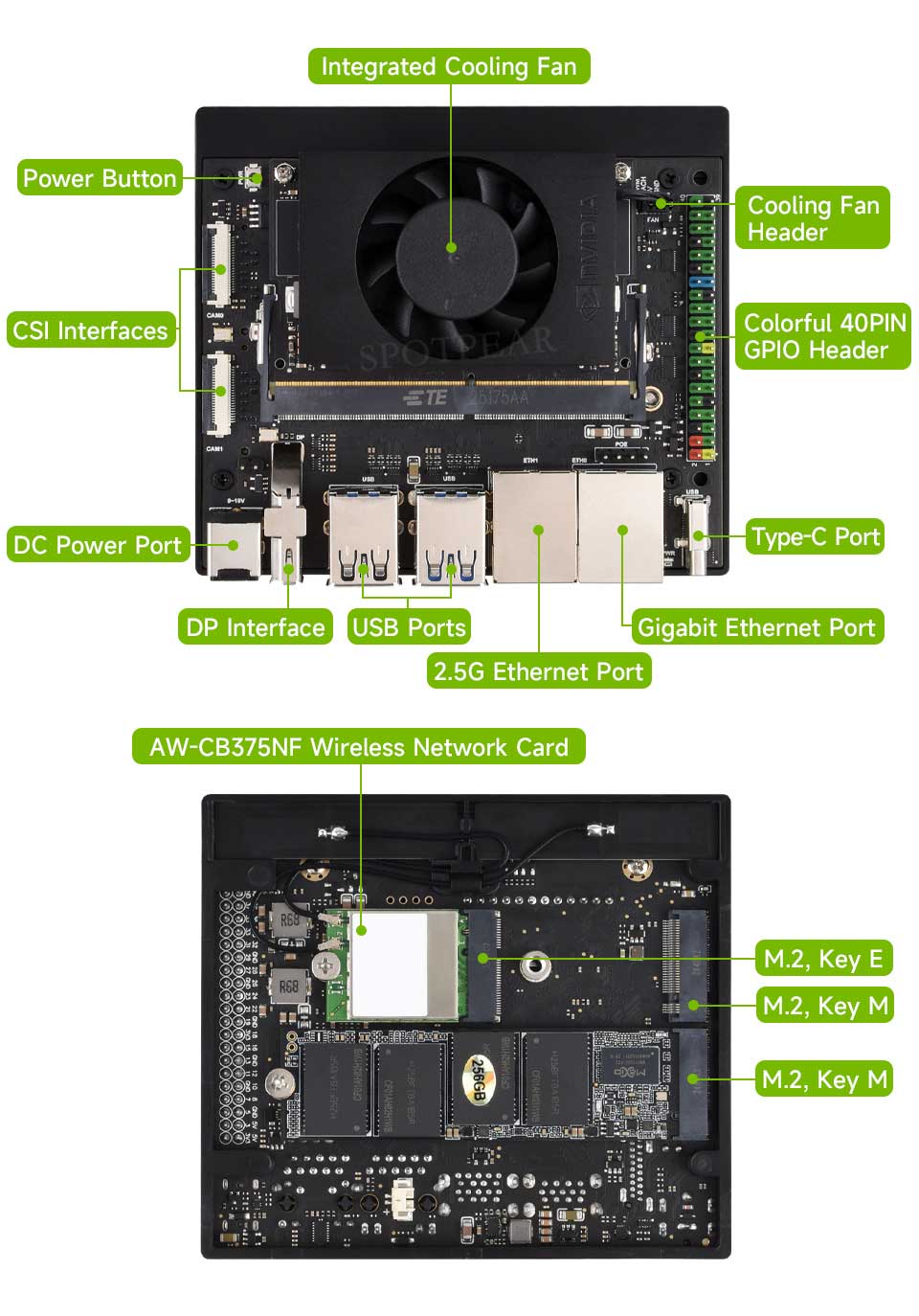

Onboard Resources

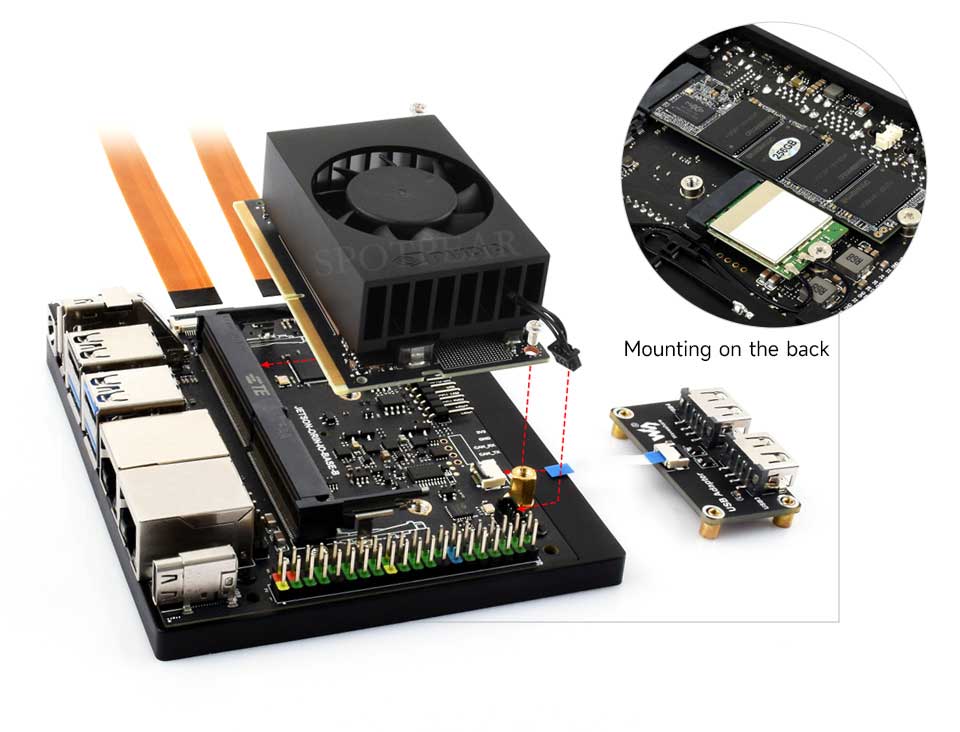

Installation Demonstration

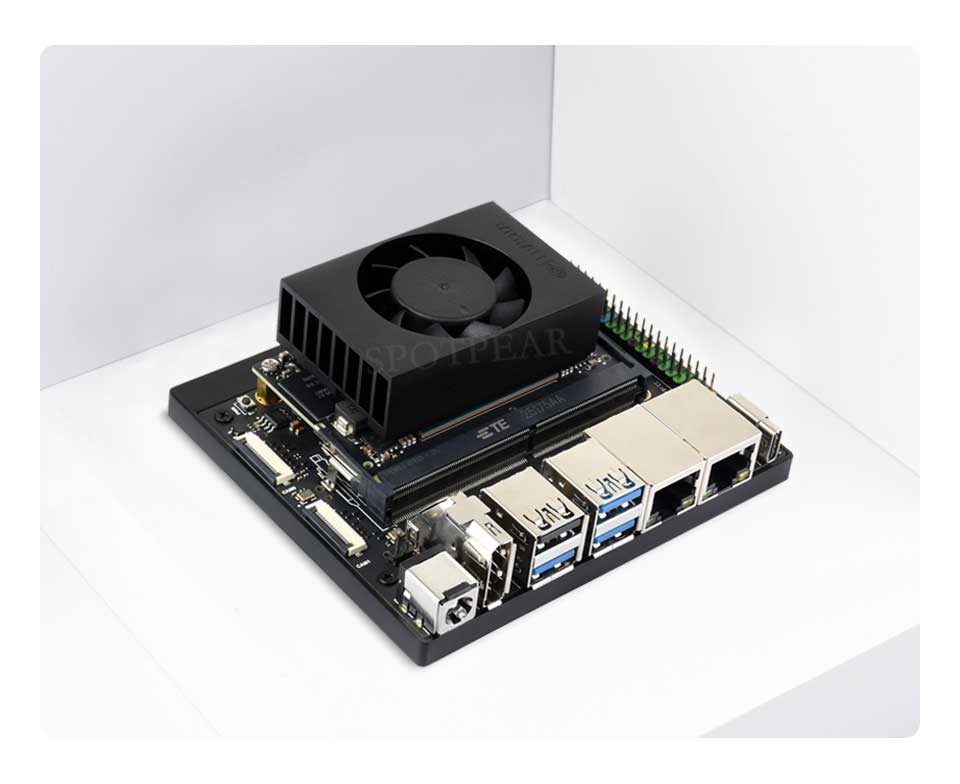

Product Show

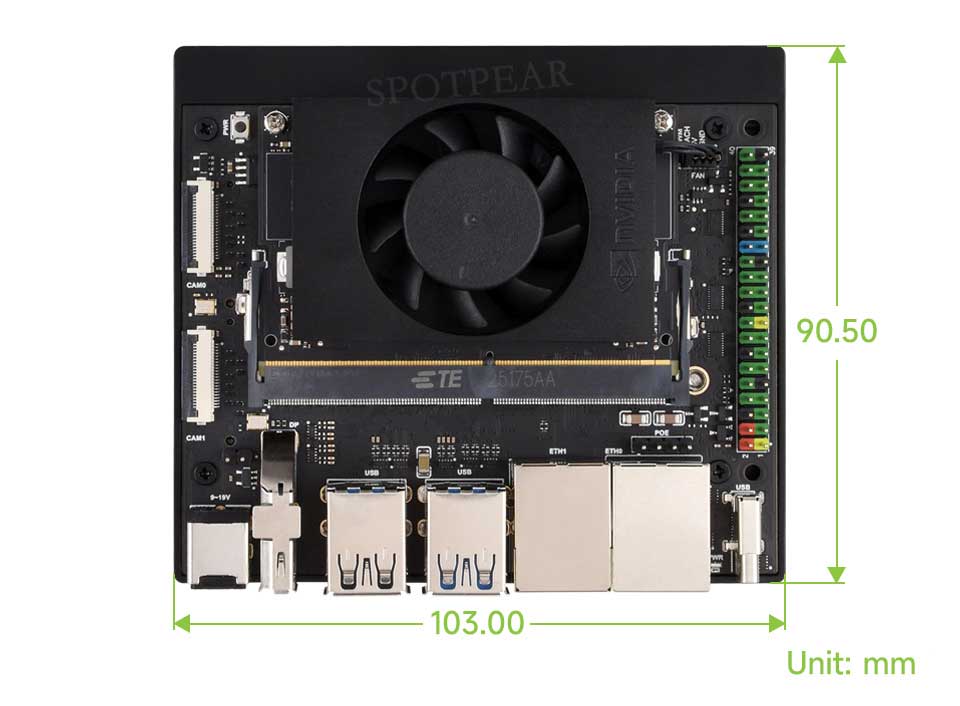

Outline Dimensions
