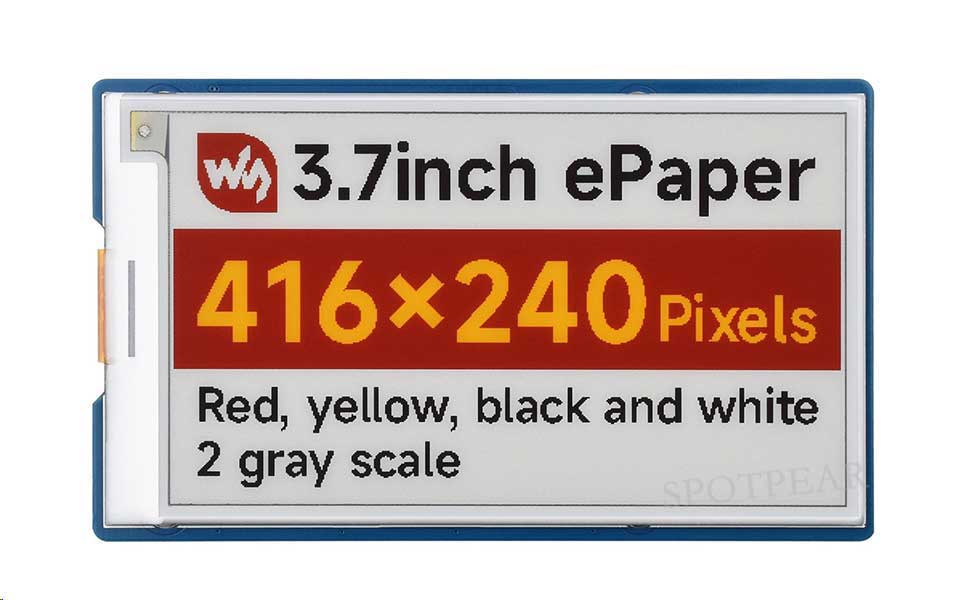

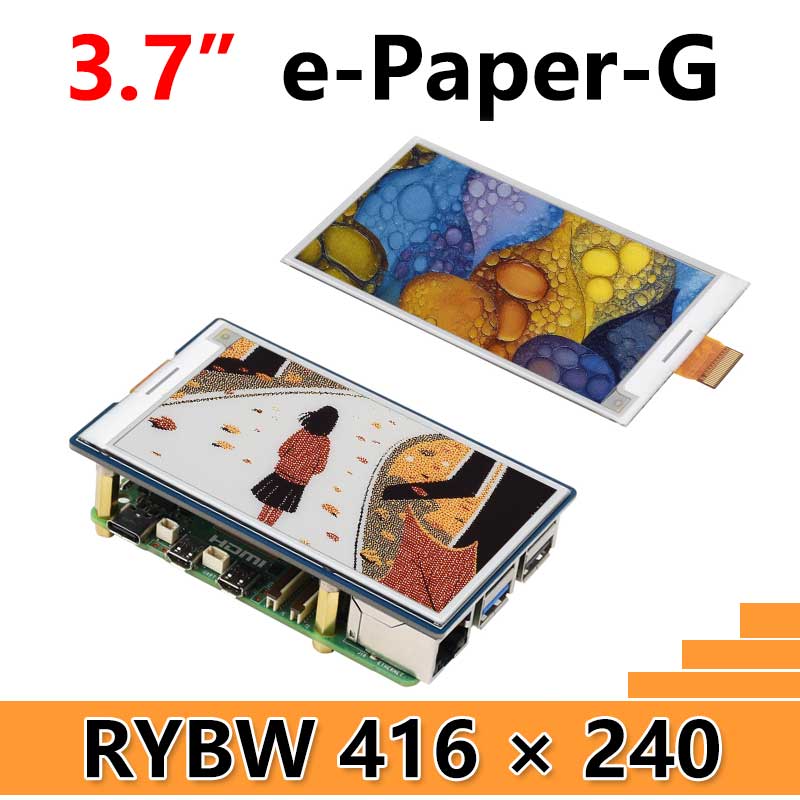

Raspberry Pi 3.7 inch e-Paper link (G) RYBW 416x240 For Arduino / Jetson Nano / STM32
$11.99
3.7inch E-Paper Display (G), E-Ink Display, 416 × 240 Pixels, Red/Yellow/Black/White, SPI Interface, Standard Raspberry Pi 40PIN GPIO header
Low Power, Wide Viewing Angle, Paper-Like Effect Without Electricity
Ideal for price tags, shelf labels, industrial instruments...
- No backlight, keeps displaying last content for a long time even when power down
- Ultra low power consumption, basically power is only required for refreshing
- Comes with online development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32/ESP32)
- Optional for e-Paper driver board

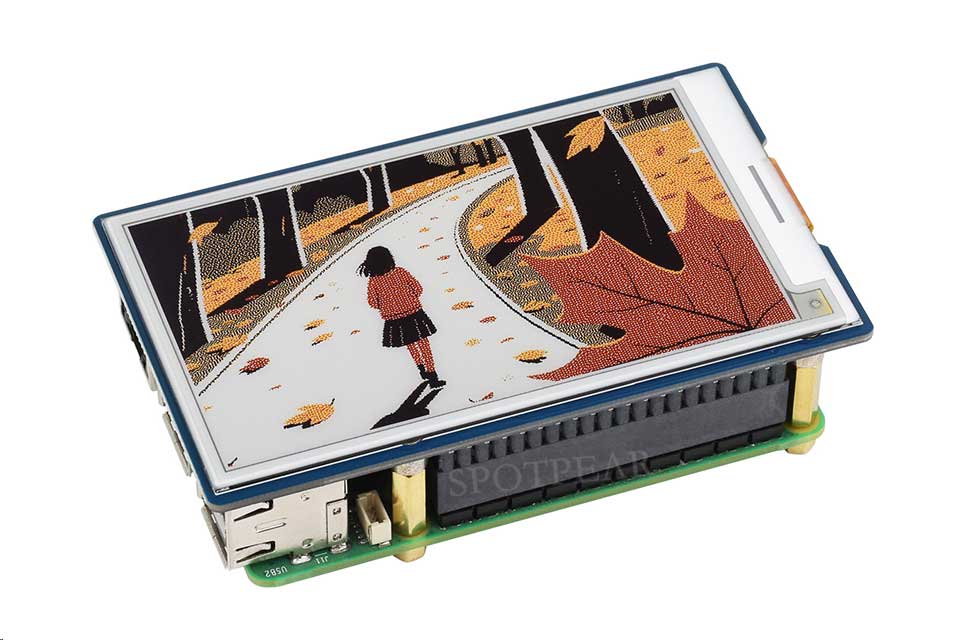

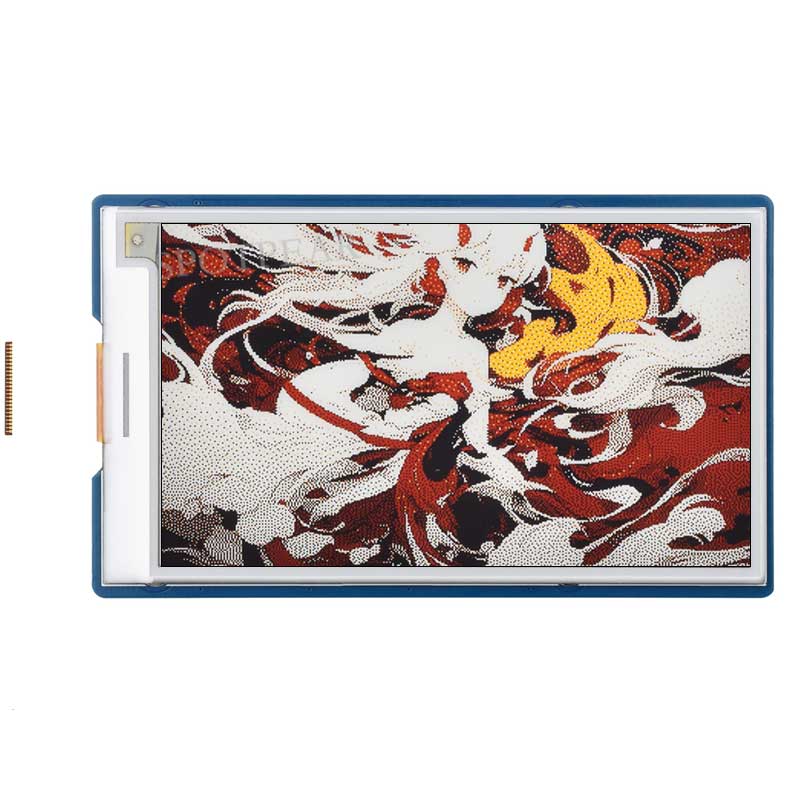

- Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi and Jetson Nano series boards

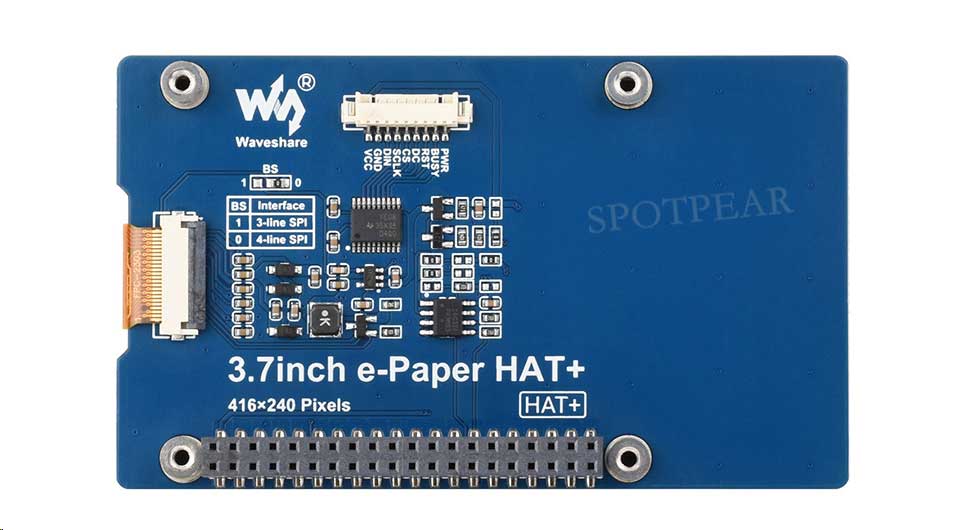

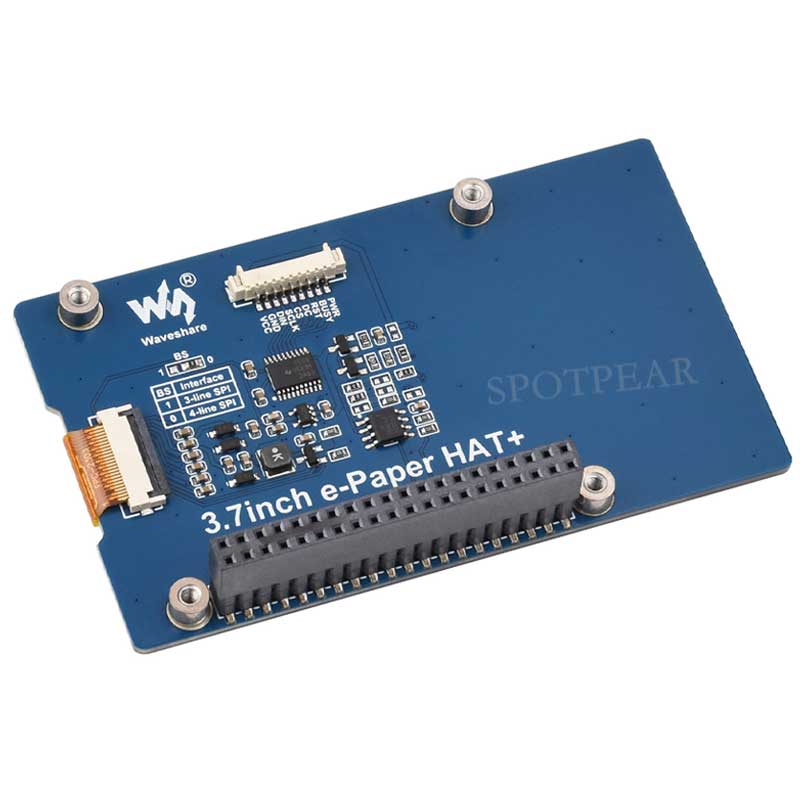

- Adopts Raspberry Pi HAT+ standard to improve interoperability, helping the users to design and develop faster, easy to use with other peripherals and extend more functions for Raspberry Pi
- Adapting SPI interface for connecting with controller boards like Raspberry Pi/Arduino/STM32/ESP32, etc.

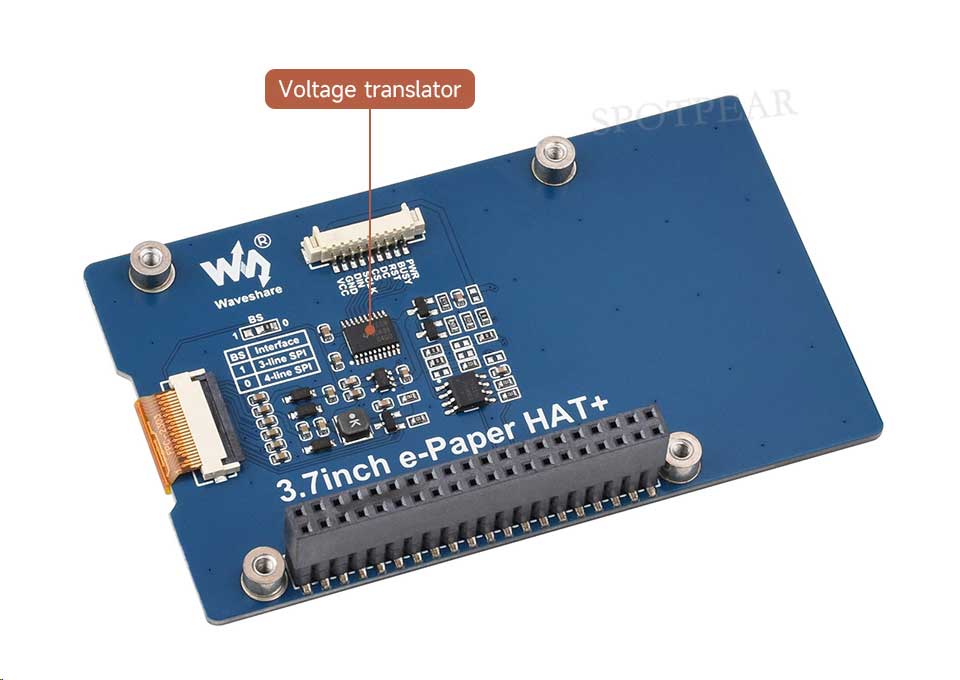

- Onboard voltage translator, compatible with 3.3V / 5V MCUs

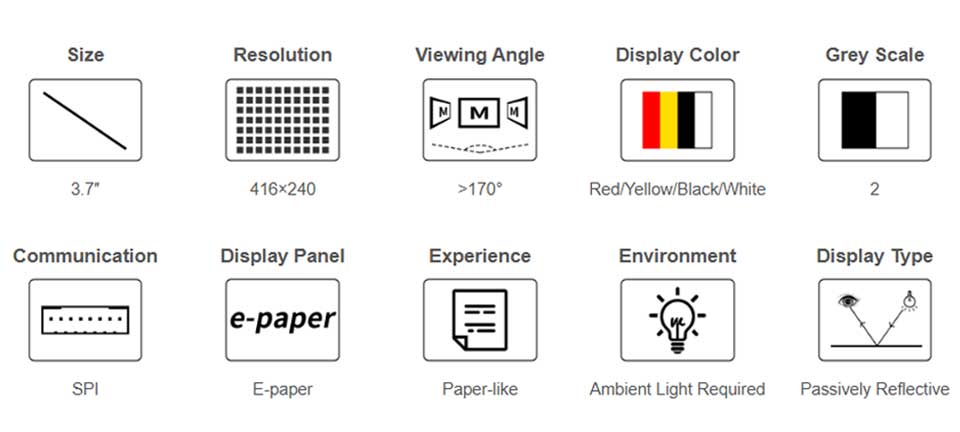

| operating voltage | Raw display: 3.3V | display color | Red/Yellow/Black/White |
|---|---|---|---|
| with driver board: 3.3V/5V | |||
| interface | 3-wire SPI, 4-wire SPI | grey scale | 2 |

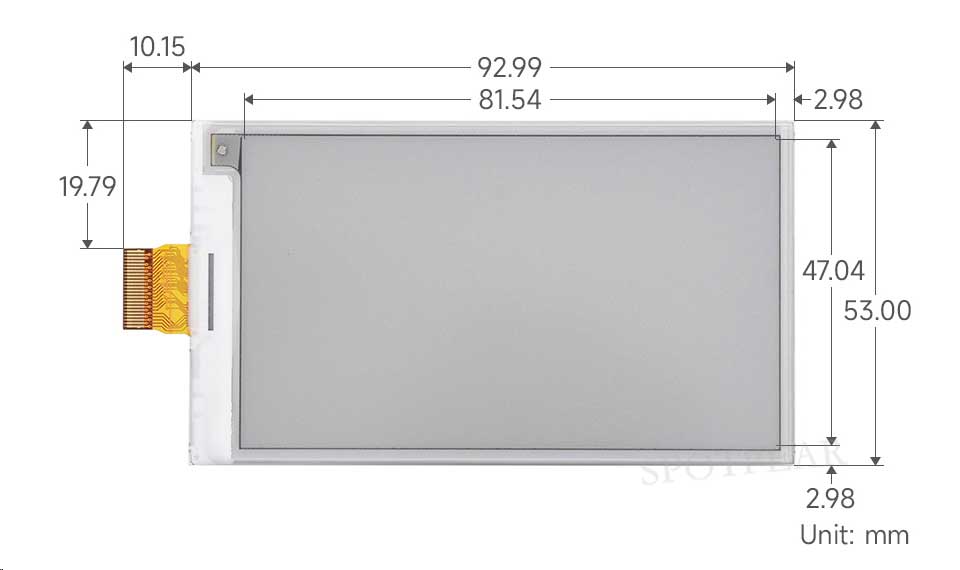

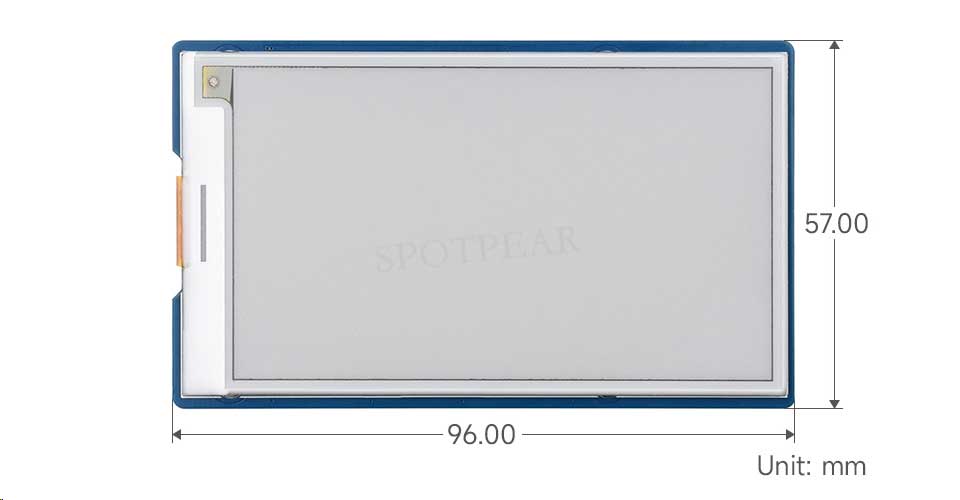

| outline dimensions | Raw display: 92.99 × 53.00 × 1.00 (mm) | fast refresh time | 12s |
| with driver board: 96.00 × 57.00 (mm) | full refresh time | 20s | |
| display size | 81.54 × 47.04 (mm) | refresh power | <30mW |
| DOT PITCH | 0.196 × 0.196 (mm) | standby current | <0.01uA (almost none) |
| RESOLUTION | 416 × 240 pixels | viewing angle | >170° |

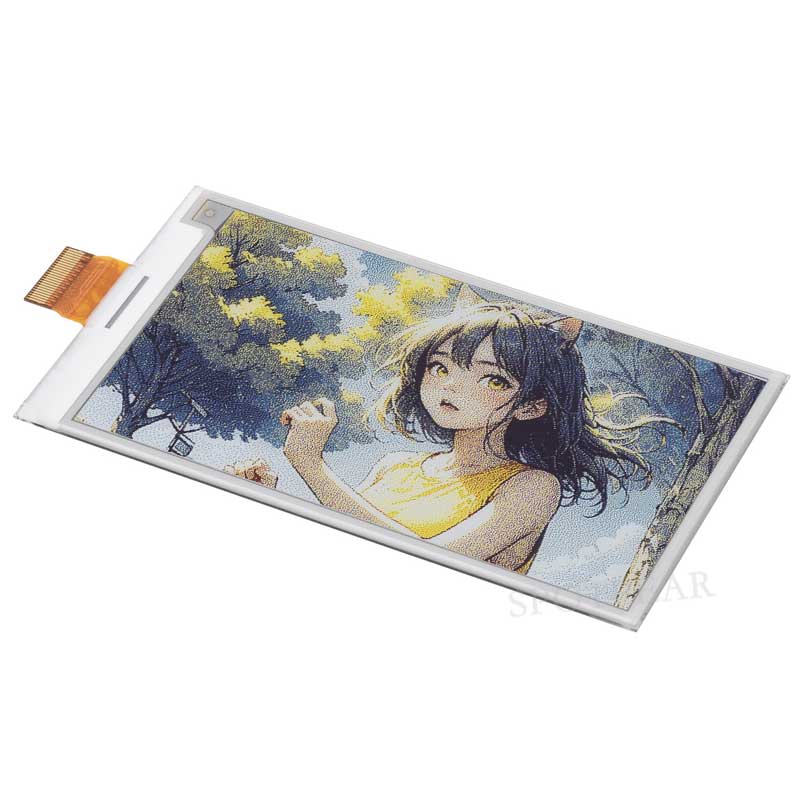

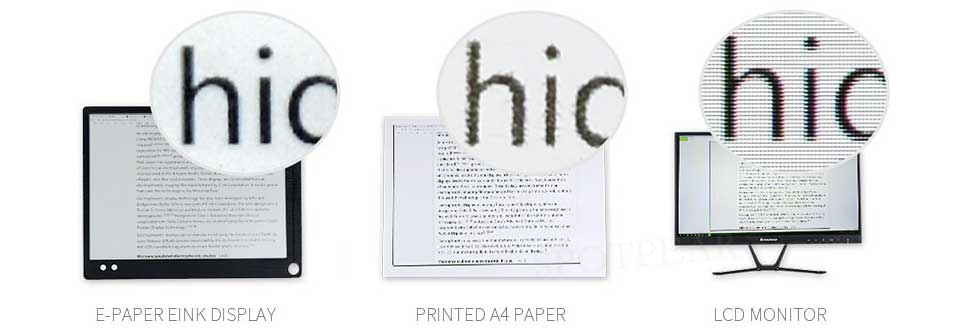

E-paper display utilizes microcapsule electrophoretic technology for displaying, the principle is: charged particles suspended in clear fluid will move to sides of microcapsule when electric field is applied, making the microcapsule become visible by reflecting ambient light, just as traditional printed paper.
E-paper display will clearly display images/texts under lamplight or natural light, requires no backlight, and features nearly up to 180° viewing angle. It is usually used as e-reader due to its paper-like effect.
Onboard SPI Control Interface, for use with controller boards like Raspberry Pi/Jetson Nano/Arduino/STM32/ESP32
| VCC | Power (3.3V / 5V input) |
|---|---|
| GND | Ground |
| DIN | SPI MOSI pin |
| SCLK | SPI SCK pin |
| CS | SPI chip selection, low active |
| DC | Data/Command selection (high for data, low for command) |
| RST | External reset, low active |
| BUSY | Busy status output pin |
| PWR | Power on/off control |
compatible with Raspberry Pi series boards, Jetson Nano
* for reference only, the Raspberry Pi is NOT included.
Compatible With 3.3V / 5V MCUs
Application examples

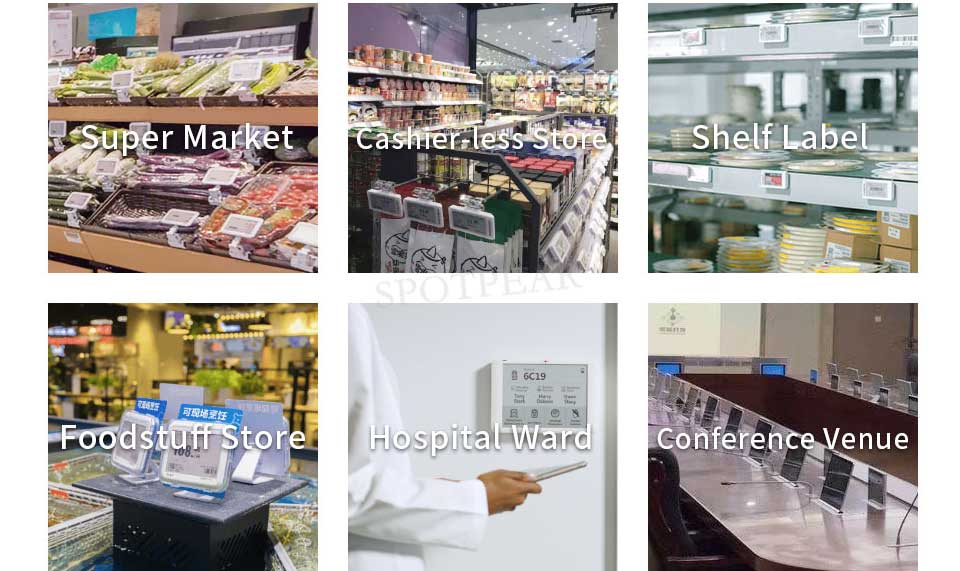

Suitable for price Tags, asset/equipment Tags, shelf labels, conference name tags...

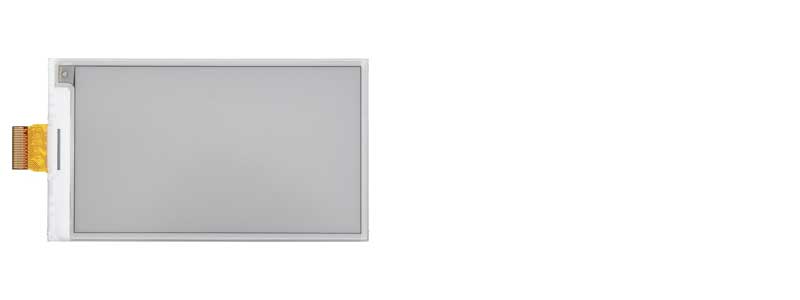

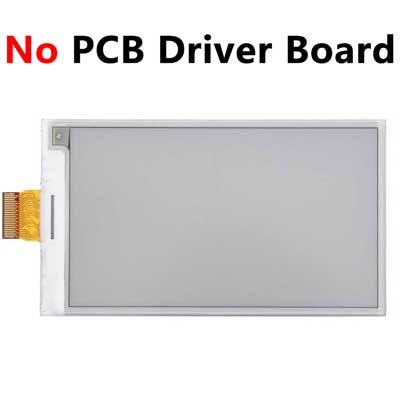

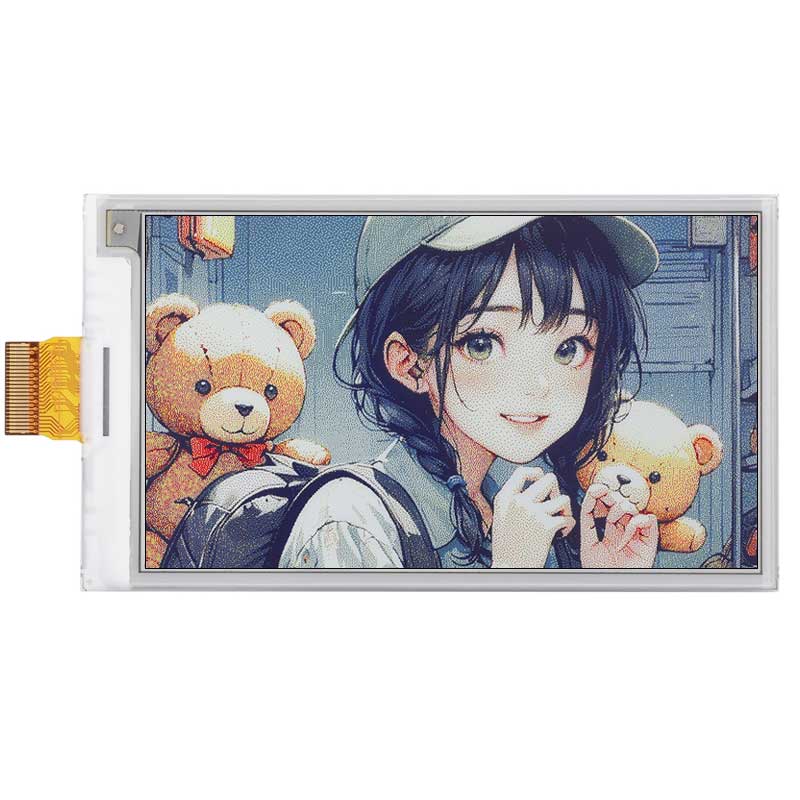

3.7inch e-Paper (G)

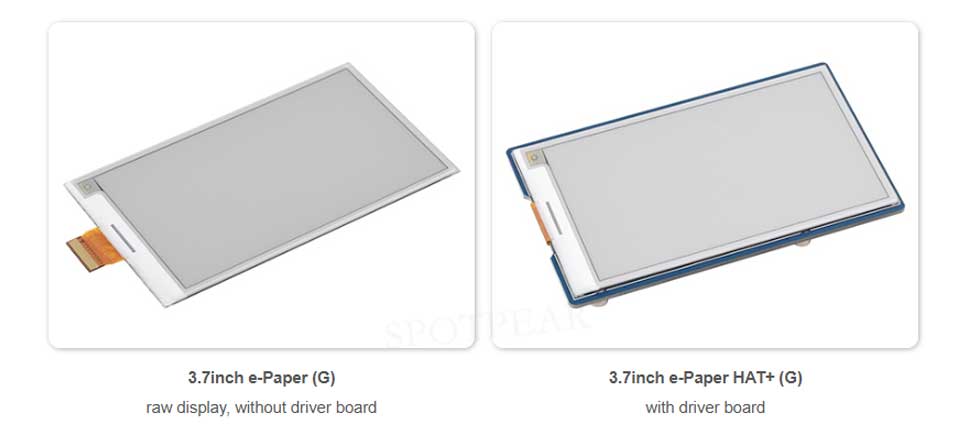

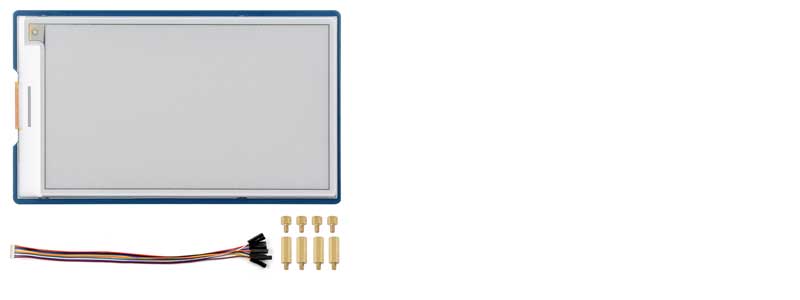

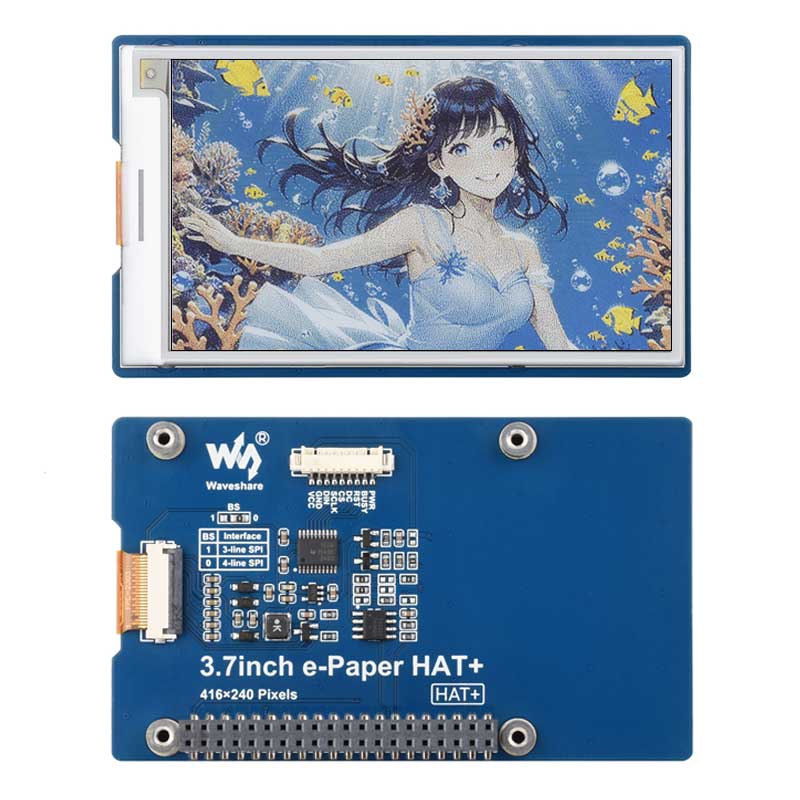

3.7inch e-Paper HAT+ (G)
