VisionFive2 Lite RISC-V Single Board Computer, JH-7110S Processor With Integrated 3D GPU, Based On Linux

VisionFive 2 Recommend

VisionFive2-4/8GB

VisionFive2 Lite 4/8GB

ICE-Tower-Fan-for-VF2

VisionFive2-CASE-A

VisionFive2-Case

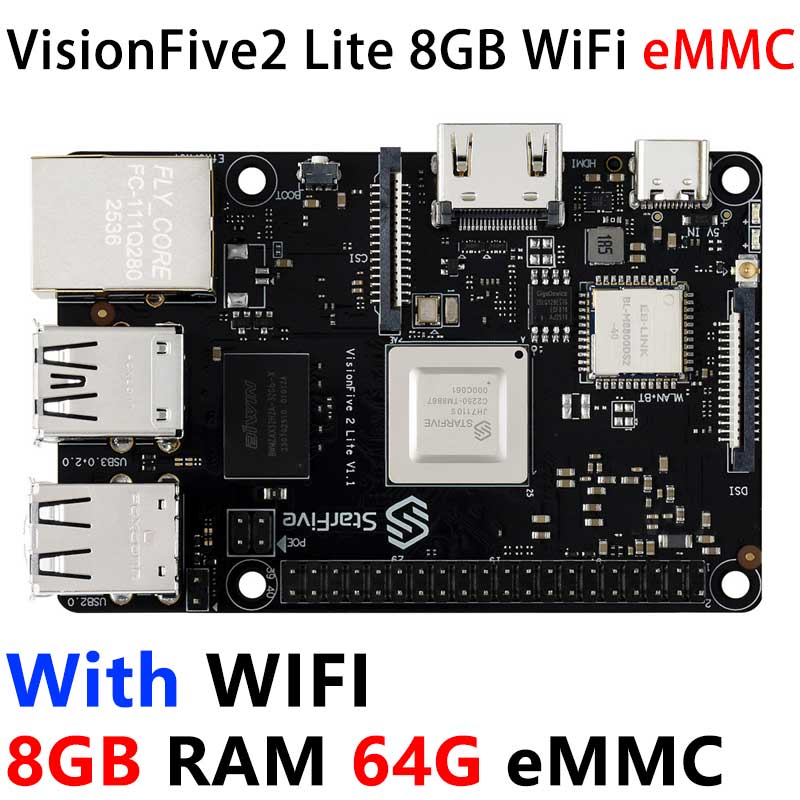

VisionFive2 Lite RISC-V Single Board Computer

Integrated 3D GPU | Based On Linux | Mini-Computer

Onboard RV64GC ISA Quad-Core 64-Bit SoC, Operating Frequency Up To 1.25GHz

Features At A Glance

VisionFive 2 Lite is a budget-friendly and feature-rich RISC-V single board computer tailored for education, AIoT, smart home, and IIoT applications. Powered by StarFive JH-7110S quad-core processor, it features robust image and video processing capabilities along with versatile expansion interfaces including PCIe, HDMI, USB 3.0, and Gigabit Ethernet. With full support for mainstream Linux distributions and open-source toolchains, it enables fast development and smooth integration. Whether for learning, prototyping, or embedded deployment, VisionFive 2 Lite delivers an exceptional balance of performance and affordability.

Multiple memory and storage options: Available with 2GB / 4GB / 8GB LPDDR4 RAM and only the 8GB LPDDR4 RAM version offers optional onboard 64GB eMMC storage
Compact size: Measuring just 56 × 85 (mm), its small form factor makes it easy to integrate into tight spaces
Integrated connectivity: Includes a Wi-Fi 6 + BT5.4 dual-band wireless module
Expandable storage: An onboard M.2 M-Key slot supports SATA3 or PCIe 2.0 NVMe Solid State Drives, meeting high-speed read/write and mass storage requirements
Rich I/O interfaces: Features a wide range of popular peripheral interfaces, including MIPI DSI, MIPI CSI, USB 3.0, USB 2.0, HDMI 2.0, and GMAC, for controlling and expanding external devices

Specifications

PROCESSOR	StarFive JH-7110S	StarFive JH-7110S with RISC-V quad-core CPU with 2 MB L2 cache and a monitor core, supporting RV64GC ISA, working up to 1.25 GHz
PROCESSOR	Imagination GPU	IMG BXE-4-32 MC1 with work frequency up to 400MHz
MEMORY	2GB / 4GB / 8GB	LPDDR4 SDRAM, up to 2800 Mbps
STORAGE	Onboard TF card slot or eMMC	Options for eMMC or the TF card
STORAGE	QSPI flash	The firmware to store U-Boot and BootLoader
MULTIMEDIA	Video output	1× 2-lane MIPI DSI display port, supporting up to 1080p@30fps 1× HDMI 2.0, supporting up to 4K@30fps or 2K@60fps
	Camera	1× 2-lane MIPI CSI camera port, supporting up to 1080p@30fps
	Encoder/Decoder	Video decoder supports up to 4K@60fps Video encoder supports up to 1080p@30fps JPEG encoder/decoder
CONNECTIVITY	Ethernet	1 × RJ45 Gigabit Ethernet port
	USB host	3 × USB 2.0 and 1 × USB 3.0/USB 2.0 ports (multiplexed with a PCIe 2.0 1 × lane)
	USB device	1 × USB device port (by reusing the USB-C port)
	M.2 connector	M.2 M-Key, size: 2242
	Wireless	Onboard Wi-Fi 6 & BT 5.4
POWER	Type-C port	USB Type-C 5V / 3A
	GPIO power in	5V DC via GPIO header
	PoE (power over Ethernet)	Power function is enabled and requires separate PoE HAT
GPIO	40PIN GPIO header	1 × 40PIN GPIO header, supporting various interface options: 3.3V (2PIN), 5V (2PIN), Ground (8PIN), GPIO, CAN bus, DMIC, I2C, I2S, PWM, SPI, UART
BUTTON	Boot button	Used for recovering the BootLoader
DIMENSIONS	56 × 85 (mm)
COMPLIANCE	RoHS, FCC, CE
ENVIRONMENT	Recommended operating temperature	0℃ ～ 50℃
OTHER	Debug function	UART TX and UART RX are available through the 40PIN GPIO header
OTHER	Fast boot mode	Used for flashing the OS image to the eMMC

Parameters Comparison

Model	VisionFive2	VisionFive2 Lite
CPU	StarFive JH-7110 with RISC-V U74 quad-core CPU with 2 MB L2 cache and a S7 core, supporting RV64GC ISA, working up to 1.5 GHz	StarFive JH-7110S with RISC-V quad-core CPU with 2 MB L2 cache and a monitor core, supporting RV64GC ISA, working up to 1.25 GHz
GPU	IMG BXE-4-32 MC1 with work frequency up to 600MHz	IMG BXE-4-32 MC1 with work frequency up to 400MHz
MEMORY	4GB / 8GB options	2GB / 4GB / 8GB options
INTERFACE	external USB dual-band Wi-Fi, no Bluetooth	onboard Wi-Fi 6 + BT5.4 dual-band wireless module
	dual Gigabit Ethernet (1-ch port with PoE function)	Gigabit Ethernet (with PoE function)
	1 × PCIe 2.0 port (2280)	1 × PCIe 2.0 port (2242)
	4 × USB3.0	1 × USB3.0 / USB2.0 + 3 × USB2.0
	standard 40PIN GPIO header
	1 × HDMI 2.0 4K@30FPS, 2K@60FPS
	1 × 2-lane MIPI-DSI 1080p@30FPS 1 × 4-lane MIPI-DSI 2K@30FPS	1 × 2-lane MIPI-DSI 1080p@30FPS
	MIPI-CSI 1080p@30FPS
	H.264 & H.265 4K@60FPS Decoding H.265 1080p@30FPS Encoding JPEG Codec
	BOOT button
OPERATING SYSTEM AND DATA STORAGE	TF Card Slot, eMMC and PCIe Solid State Drive
POWER INPUT	5V 3A DC (via Type-C port, PD supported), 5V DC via GPIO header, PoE (Power over Ethernet)
POE	requires separate PoE HAT
DIMENSIONS	74 × 100 (mm)	56 × 85 (mm)

Onboard Resources

StarFive JH-7110S RISC-V quad-core processor
Supporting RV64GC ISA
PoE header
Fastboot pins
2 × USB 2.0 ports
2GB / 4GB / 8GB LPDDR4 SDRAM
1 × USB 3.0 port + 1 × USB 2.0 port
1 × Gigabit Ethernet port (RJ45)
Recovery button
2-lane MIPI-CSI camera interface
HDMI 2.0 port
USB Type-C port
2.4GHz / 5.8GHz antenna connector

2-lane MIPI-DSI display interface
Wi-Fi / BT module
40PIN GPIO header
QSPI flash
EEPROM
Power Management IC (PMIC)
TF card slot
for version without eMMC only
M.2 M key slot
Onboard 64GB eMMC
for eMMC version only
USB2.0 Hub FE1.1S
Gigabit Ethernet PHY IC

Application Scenarios

Education & Development
Lightweight open-source RISC-V educational platform supporting toolchains like Python/OpenCV, enabling efficient development of AI vision algorithms and robotic control applications, helping students learn open-source ISA and embedded development.

IIoT / Industrial Control Systems
Edge Connectivity: Features Gigabit Ethernet, Wi-Fi 6, and PCIe-based M.2 expansion for industrial sensor/device integration
Control Systems: Supports OpenPLC with IgH EtherCAT Master Stack.

Smart Home & Security Solutions
Peripheral Control: Directly drives home automation devices (sensors/access systems) via GPIO/USB interfaces
AIoT: Implements person detection using USB-connected Hailo-8 AI accelerator modules, with alerts pushed to Home Assistant via RTSP streams.

Lightweight Home Server
Native support for OpenWrt (router OS)/CasaOS (container management)/Buildroot (embedded Linux) frameworks, with 24/7 low-power operation.

Product Show

* for reference only, please refer to the Package Content for the detailed part list

Dimensions

[] VisionFive2 Lite 4GB WiFi

[] VisionFive2 Lite 8GB WiFi

[] [] VisionFive2 Lite 8GB WiFi eMMC
