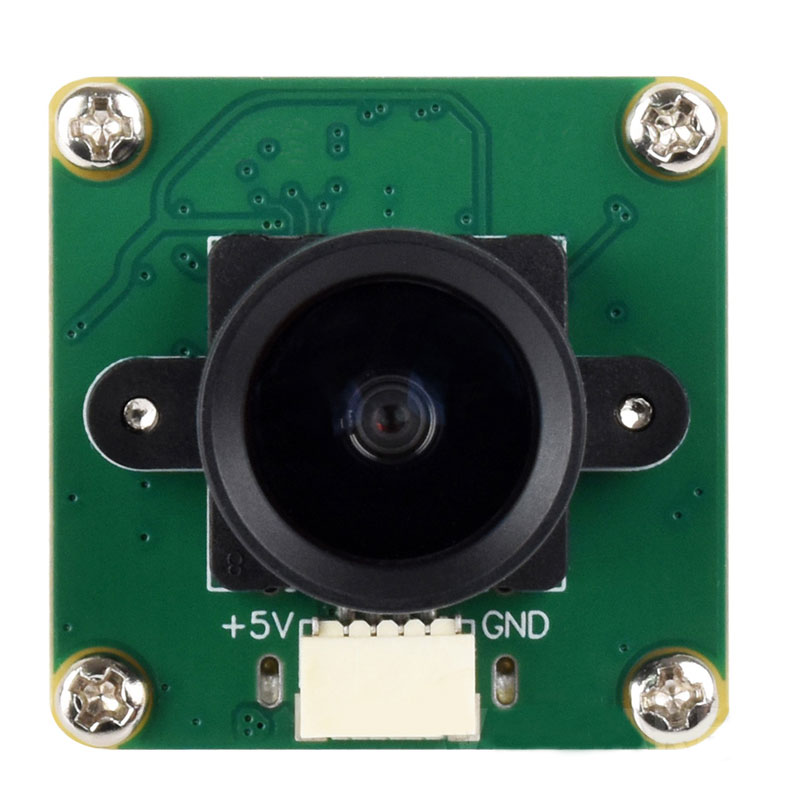

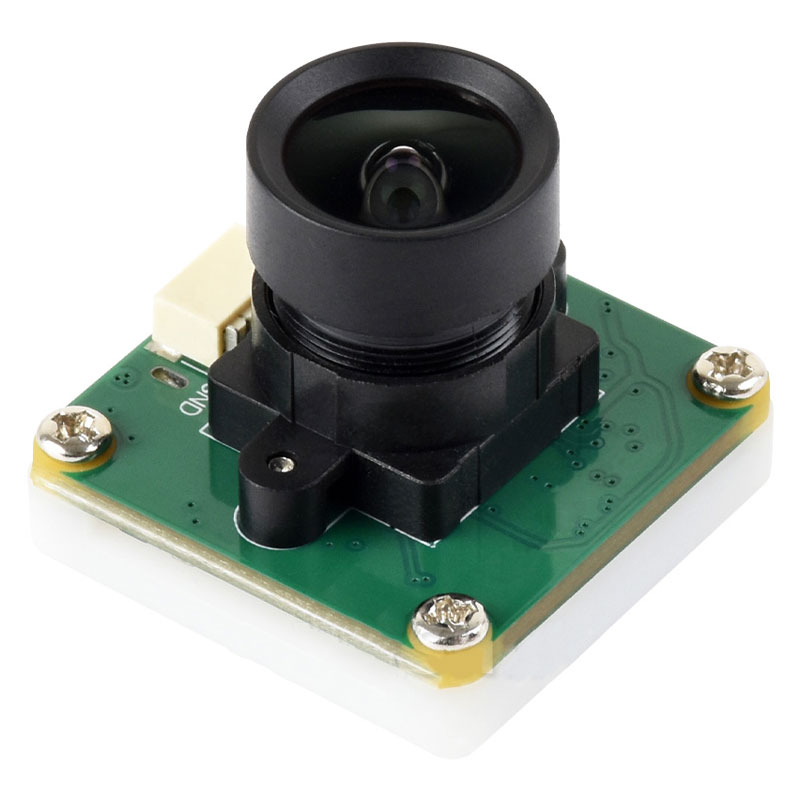

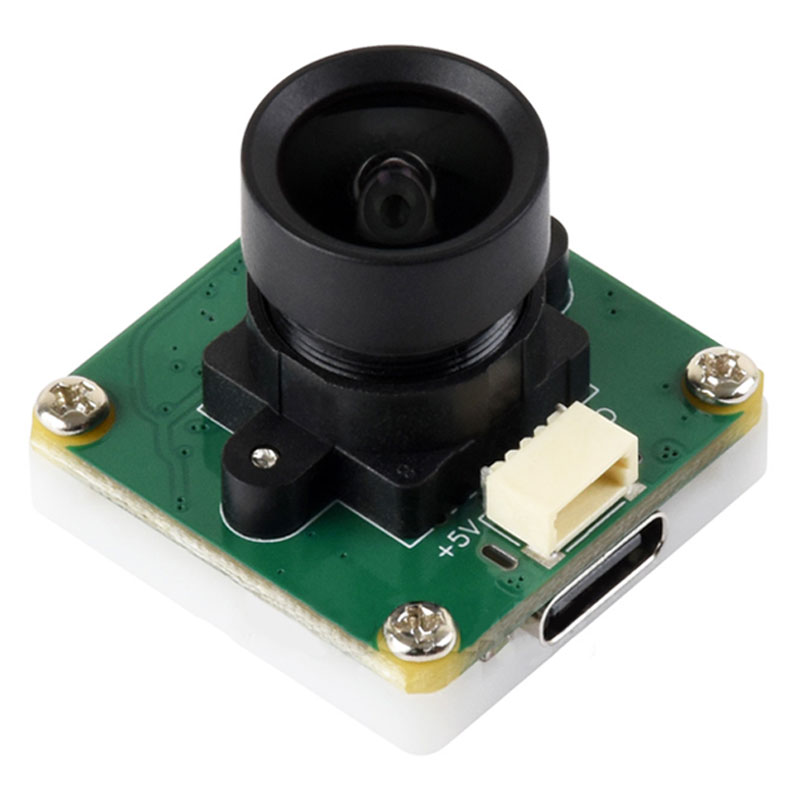

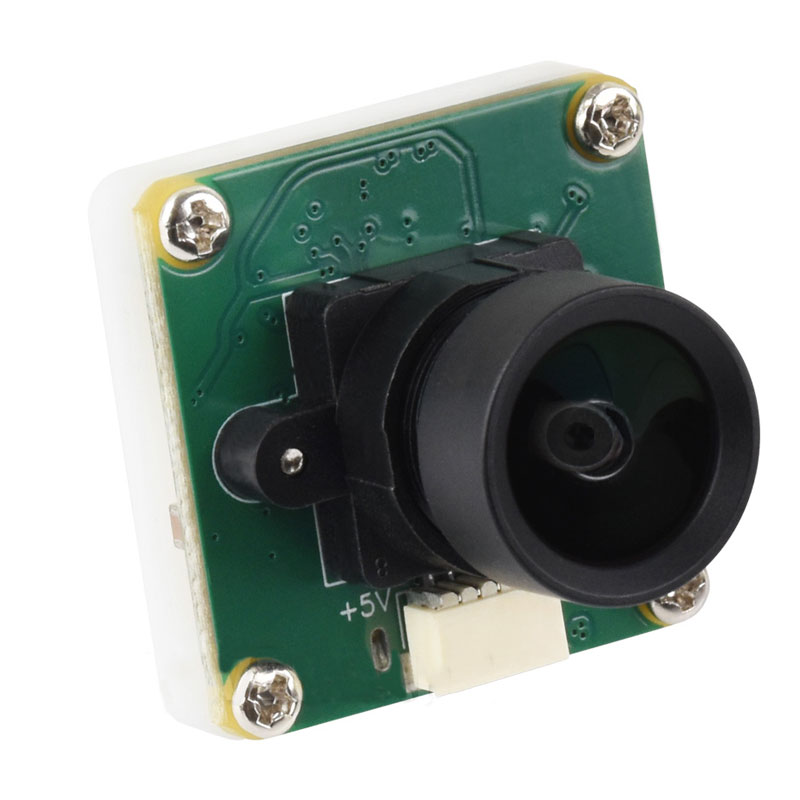

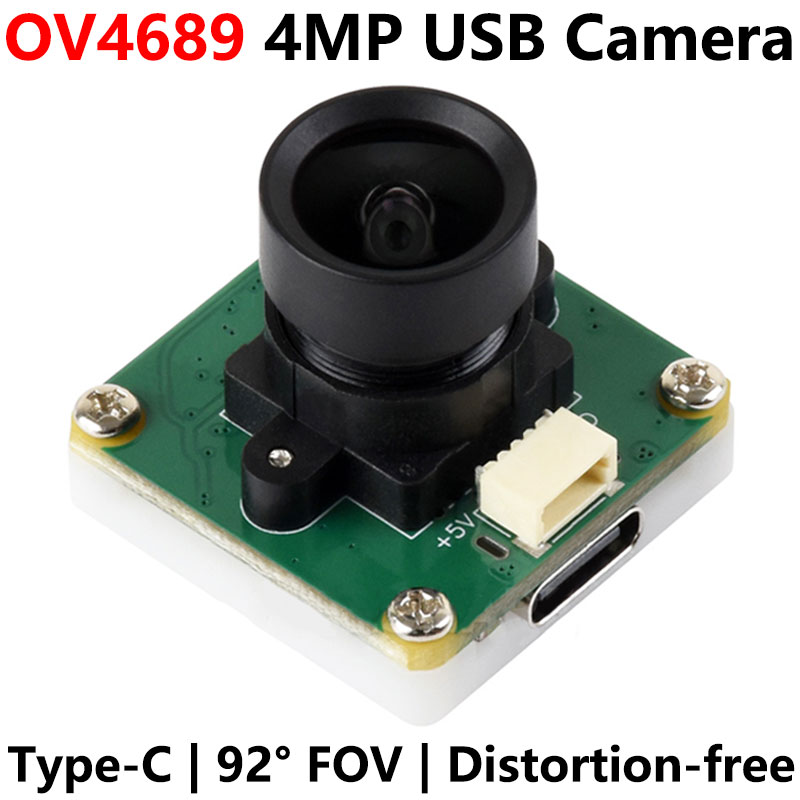

Raspberry Pi USB Camera 4MP OV4689 Distortion-Free For Jeston RDK

Raspberry Pi USB Camera 4MP OV4689 Distortion-Free For Jeston RDK

$21.9

Brand：SpotPear

SKU：010310400000

Date：2026-07-06 13:47

Part Number：

OV4689 4MP USB Camera (A)

No：

- +

In Stock

Buy It Now

Add to cart

Ask a Question

Copy Link

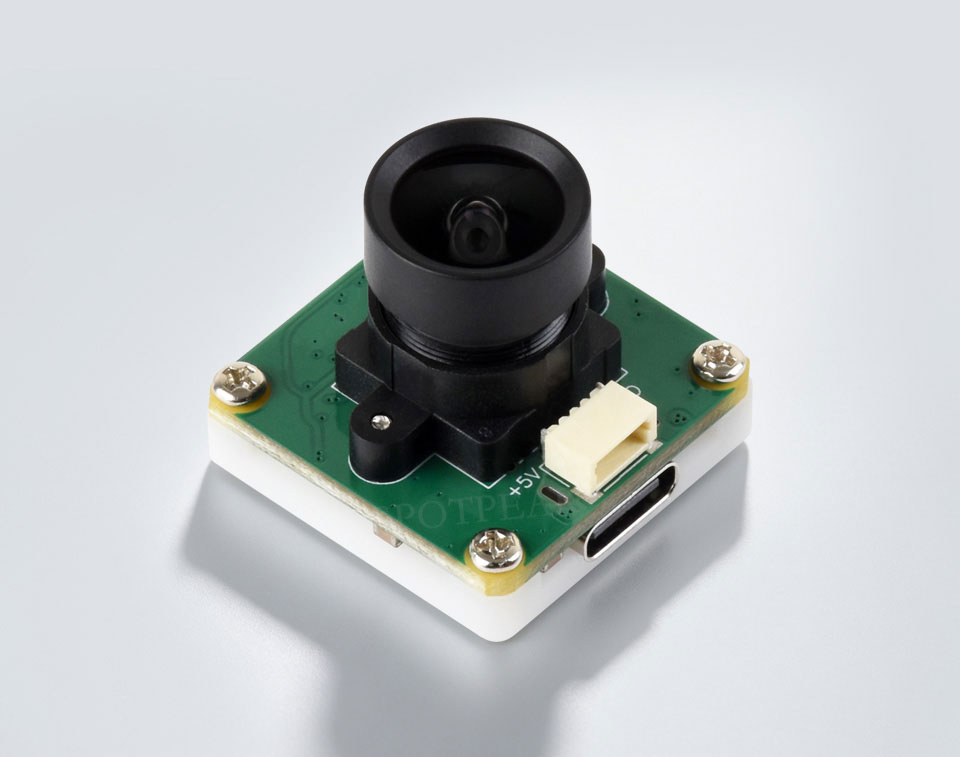

OV4689 4MP USB Camera (A), 92° FOV, Supports Type-C Port And SH1.0 4PIN Header, Distortion-free, Plug And Play

OV4689 4MP USB CAMERA

OV4689 Sensor | USB 2.0 Type-C Port | 92° Distortion-Free Lens

Specifications

PIXELS	4MP
SENSOR	OV4689
INTERFACE	USB2.0 Type-C port / SH1.0 4PIN header
CAMERA	Sensor size	1/3 inch
	Aperture (F)	2.7
	Focal length (EFL)	2.88mm
	Field of view (FOV)	92°
	Distortion	<-0.2%
	Focusing	Fixed-focus
MOUNT	M12
IMAGE	Format support	MJPG, YUY2
	Static image resolution	2688 × 1520
	Video recording	MJPG: 30 FPS 2688 × 1520 30 FPS 2560 × 1440 60 FPS 1920 × 1080 60 FPS 1280 × 720 60 FPS 640 × 480 YUY2: 2 FPS 2688 × 1520 2 FPS 2560 × 1440 5 FPS 1920 × 1080 10 FPS 1280 × 720 30 FPS 640 × 480
OPERATING VOLTAGE	5V ± 5%
OPERATING TEMPERATURE	-10°C ~ 60°C
MODULE SIZE	25.00 × 25.00 (mm)

4MP High Resolution

Supports 60 FPS Output, Suitable For Capturing Details

Better Low-Light Sensitivity

OV4689 Adopts Backside-Illuminated (BSI) Technology, Providing Better
Imaging Effect In Low Light Condition

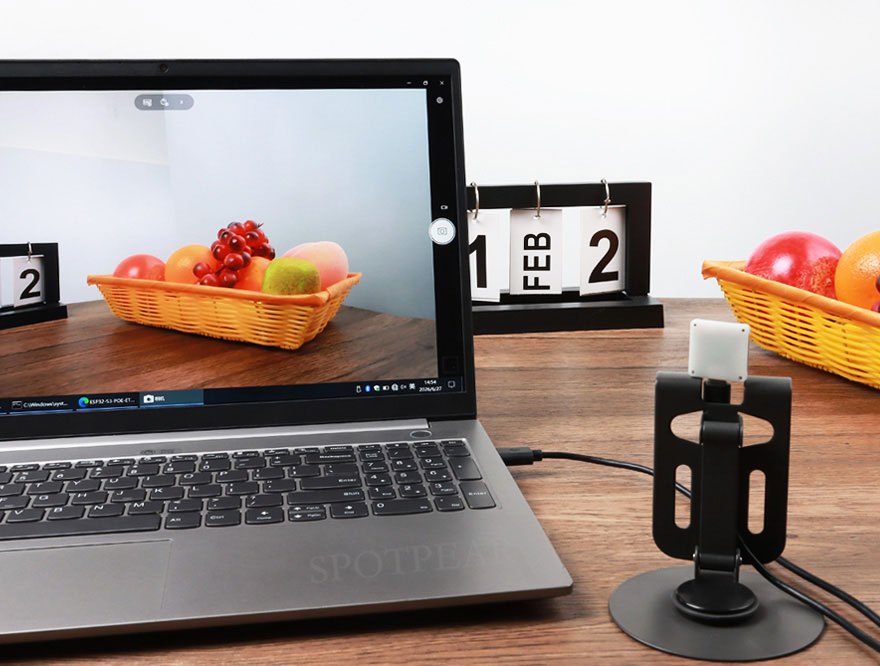

Plug And Play, Easy Connection

Onboard USB 2.0 Port, Driver-Free, Compatible With Various USB Hosts Such As PC And Smart Devices, Simply Plug It In To Start Using

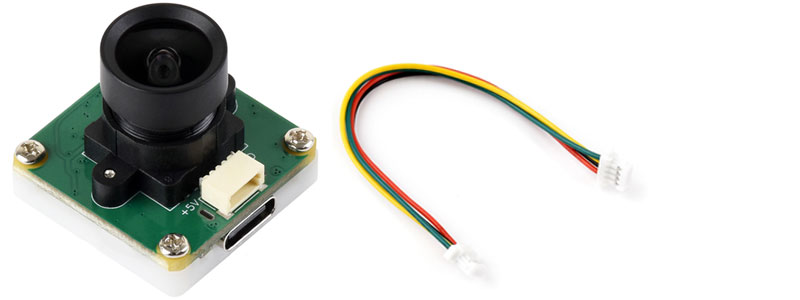

* for reference only, please refer to the package content for the detailed part list.

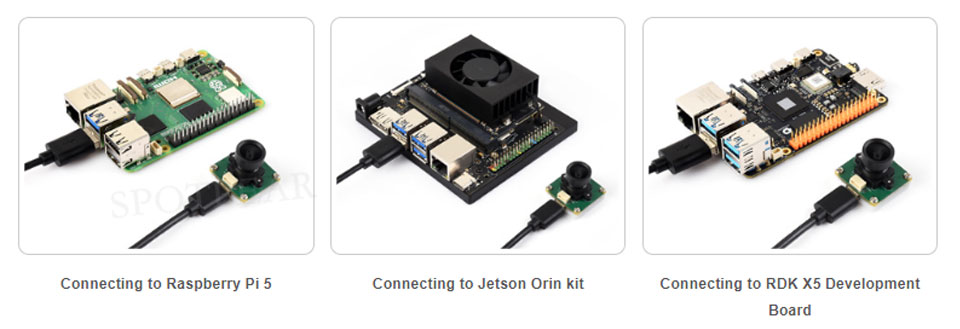

Connecting With USB Cable

* for reference only, the Raspberry Pi 5, Jetson Orin kit and RDK X5 Development Board are NOT included

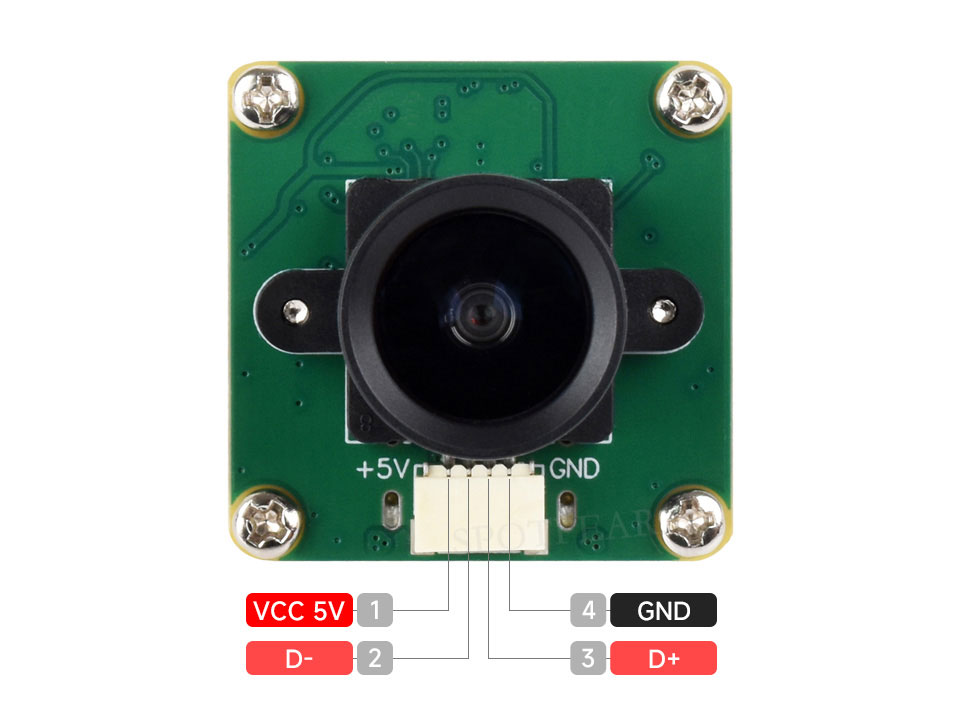

Pinout Definition

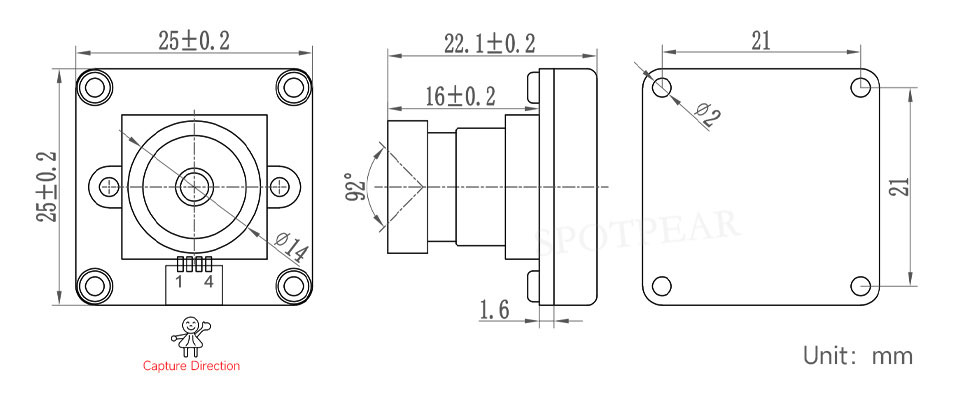

Outline Dimensions

[] OV4689 4MP USB Camera (A)
