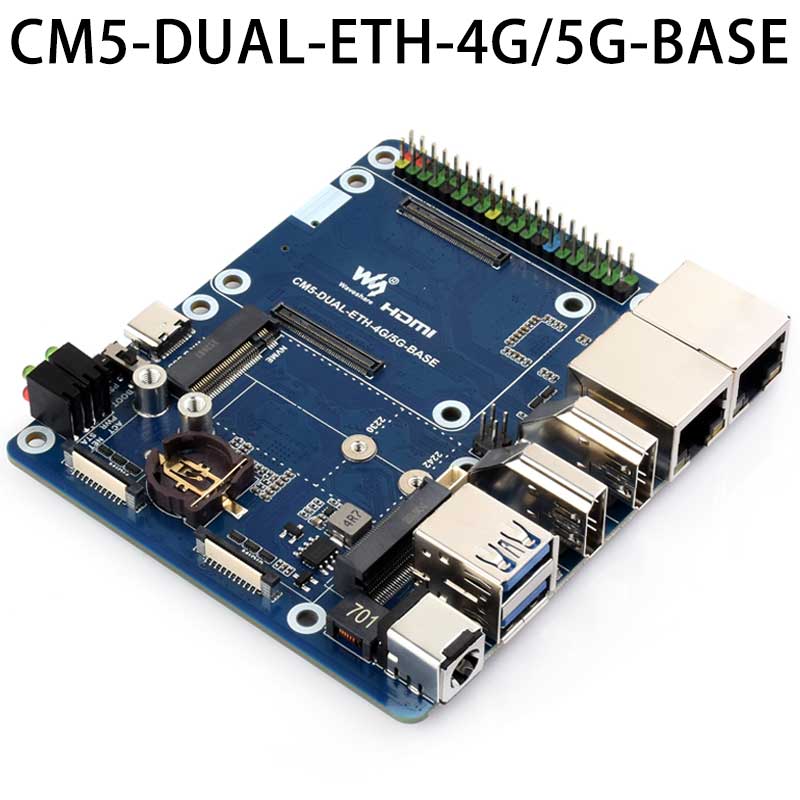

Raspberry Pi CM5 4G/5G Dual Ethernet Port ETH Gigabit/2.5G Expansion Board with RJ45 IO Base and GPIO

Raspberry Pi CM5 4G/5G Dual Ethernet Port ETH Gigabit/2.5G Expansion Board with RJ45 IO Base and GPIO

$59.9

Brand：SpotPear

SKU：010147100000

Date：2025-10-24 15:37

Part Number：

CM5-DUAL-ETH-4G/5G-BASE

No：

- +

In Stock

Buy It Now

Add to cart

Ask a Question

Copy Link

Raspberry Pi CM5 dual-port Ethernet expansion board supports 4G/5G modules, dual 4K output/dual MIPI, 40-pin GPIO, onboard USB 3.2 Gen1 × 2, and supports PoE modules.

Raspberry Pi Compute Module 5 CM5 Recommend

Compute Module 5

Compute Module 5 IO Board

Compute Module 5 Development Kit

CM5-IO-BASE-A

CM5-IO-BASE-B

CM5-NANO-A

CM5-NANO-B

CM5-to-Pi5-Adapter

CM5-DUAL-ETH-BASE

CM5-DUAL-ETH-4G/5G-BASE

CM5-PoE-BASE-A

CM5-DUAL-ETH-MINI

CM5-IO-BOARD-CASE-A

Compute Module 5 IO Case

CM5-FAN-3007-5V

CM5-FAN-3007-B-5V

Dual Ethernet Base Board For CM5

Designed For Raspberry Pi Compute Module 5

Specifications

CM5 SOCKET	Suitable for all variants of Compute Module 5
NETWORKING	1000M Ethernet RJ45 port × 1 2500M Ethernet RJ45 port × 1
CONNECTOR	Raspberry Pi 40PIN GPIO header
USB	USB 3.2 Gen1 × 2
MIPI	4-lane MIPI interface × 2 (22PIN 0.5mm FFC connector)
VIDEO	HDMI port × 2, supports dual 4K display outputs
M.2	M.2 M KEY (PCIe Gen2/3 x 1)
M.2 (4G / 5G)	M.2 M KEY, supports connecting 4G / 5G communication module
STORAGE	TF card socket for Compute Module 5 Lite (without eMMC) variants
FAN HEADER	5V, 4PIN JST-SH PWM fan connector
POWER INPUT	7V~36V wide voltage range DC jack, 5V 5A Type-C port
DIMENSIONS	the base board: 99.60 × 87.00 (mm)

Connecting With Compute Module 5

Standard CM5 Socket And Color-Coded Raspberry Pi 40PIN GPIO Header
Suitable For Compute Module 5 Lite / EMMC Series Module

* for reference only, please refer to the package content for detailed part list

4G / 5G Module Compatibility

Compatible With Communication Modules With M.2 B KEY Interface

* An additional communication module is required to enable 5G/4G/3G/2G cellular network function, recommended: SIM8200EA-M2, and SIM8262E-M2.

Supports Connecting To M.2 NVMe Drive

Faster Reading/Writing Speed Compared To The TF Card Slot Of Raspberry Pi, Greatly Improving Reading/Writing Efficiency Of The System Or Files, Supports Booting Pi5 From NVME Solid State Drive

* for reference only, please refer to the package content for detailed part list

Applicable M.2 Drive Sizes

NVMe Drive Slot Support

* Only supports the NVMe Protocol Solid State Drives.

More Rich Interfaces

What's On Board

CM5 socket
suitable for all variants of Compute Module 5
40PIN GPIO header
suitable for connecting to various HAT / HAT+ modules
M.2 M key
supports 2242 / 2230 NVMe Solid State Drives or AI modules
Programming
used for eMMC burning or USB OTG
BOOT switch
switch to ON: burning mode
switch to OFF: system normal startup mode
PSW power button
Long press to force power off, short press to soft power off or on
System indicators
M.2 M key status indicators
RTC battery holder
supports CR / ML 1220 button cell
Dual MIPI interfaces
for connecting to DSI displays or CSI cameras
DC power jack
DC 5.5 2.1 jack, supports DC 7V ~ 36V power supply
M.2 B key
supports connecting 4G/5G communication module
Dual USB 3.2 Gen1 ports
USB 3.2 Gen1 Type-A ports, up to 5Gbps

FAN header
for connecting cooling fan, 5V, 4PIN JST-SH PWM fan connector
M.2 M key status indicator
keeps blinking when NVMe drive is reading / writing
Dual HDMI ports
supports dual 4K outputs
PoE header
for connecting PoE module, supports PoE power supply through 1000M Ethernet port using PoE switch
1000M Ethernet RJ45 port
supports 10M / 100M / 1000M network connections
2500M Ethernet RJ45 port
supports 10M / 100M / 1000M / 2500M network connections
USB to 2500M Ethernet chip
IO-VREF selection
CM5 IO logic level: 3.3V (default) or 1.8V
Other function pins
Hardware disable function, write protection and chip address selection
TF card slot
for connecting a TF card with pre-burnt image (Lite variant ONLY)
NANO SIM card slot
USB3.0 HUB

Outline Dimensions
