【Overview】

[] 1.32inch OLED Display Module, Embedded SSD1327 Driver Chip, SPI / I2C Communication, Comes with examples for Raspberry Pi, Arduino, STM32, etc.

【Features】

[] Ultra-narrow bezel, conpact size, with onboard voltage translator

[] Adopts 4-wire SPI and I2C interfaces, better compatibility, fast data rate

[] Comes with online development resources (examples for Raspberry Pi/Arduino/STM32)

【Specifications】

[] OPERATING VOLTAGE : 3.3V / 5V

[] RESOLUTION : 128 × 96 pixels

[] COMMUNICATION INTERFACE : 4-wire SPI / I2C

[] DISPLAY SIZE : 26.86 × 20.14mm

[] DISPLAY PANEL : OLED

[] PIXEL SIZE : 0.19 × 0.19 mm

[] DRIVER : SSD1327

[] MODULE SIZE : 34.30 × 30.50mm

【Control Interface】

[] RES : Reset, low active

[] DC : Data/Command selection (high for data, low for command)

[] CS : Chip selection, low active

[] CLK : Clock input

[] DIN : Data input

[] GND : Ground

[] VCC : Power (3.3V / 5V input)

【Hardware Connection】

[] Connecting With Raspberry Pi Via SPI Interface

[] Connecting With Arduino Board Via SPI Interface

【Usage Example】

【Outline Dimensions】

【Video】

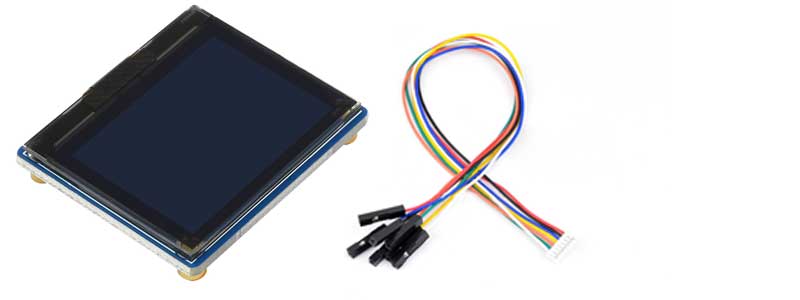

1. 1.32inch OLED Module x1
2. GH1.25 7PIN cable x1
