ESP32-C6 1.83-inch Touch LCD Development Board with 240×284 Resolution, Onboard Audio Codec Chip, Built-in Microphone and Speaker, Supporting Wi-Fi 6 and BLE 5

ESP32-C6 1.83inch Touch Display
Development Board

Embedded with ST7789P Display Driver and CST816D Capacitive Touch Chip

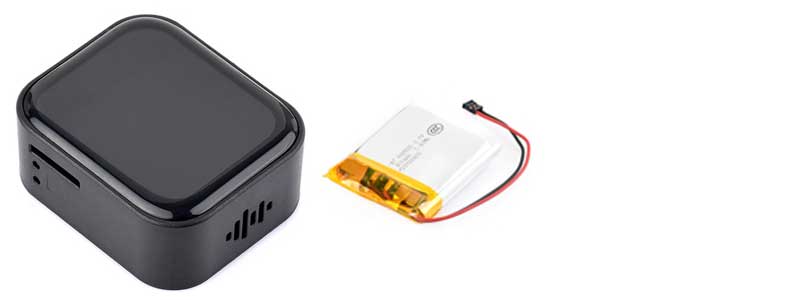

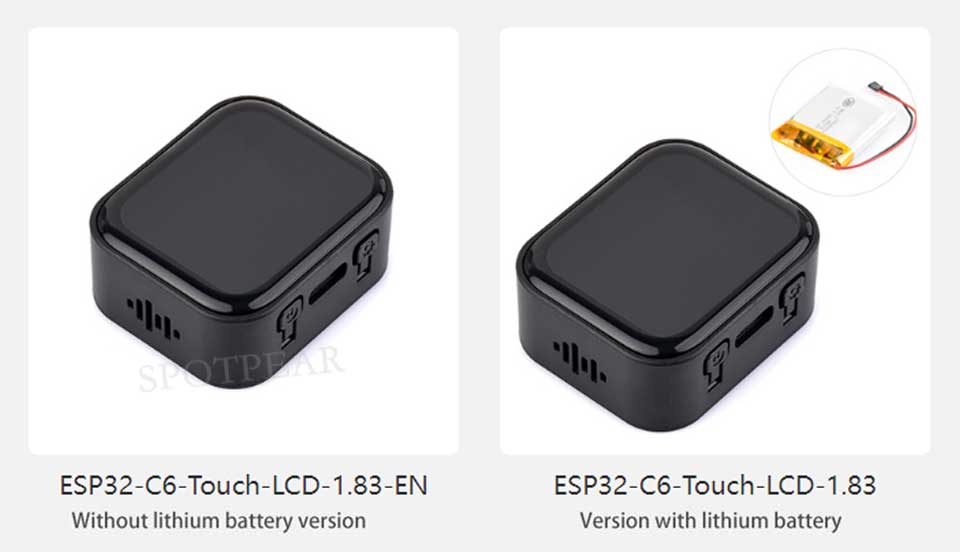

Version Options

Features

ESP32-C6-Touch-LCD-1.83 is a low-cost, high-performance microcontroller development board designed by Waveshare. In a compact form factor, it integrates a 1.83-inch capacitive touch LCD screen, lithium battery charging chip, audio codec chip, six-axis sensor (3-axis accelerometer and 3-axis gyroscope), RTC, and other peripherals. It is specifically engineered for prototyping and functional verification of AI voice conversation agents in wearable applications.
Key Features:

Equipped with a high-performance 32-bit RISC-V processor and a low-power 32-bit RISC-V processor. The high-performance processor has a clock speed of up to 160MHz, while the low-power processor can reach 20MHz.
Integrates Wi-Fi 6, Bluetooth 5, and IEEE 802.15.4 (Zigbee 3.0 and Thread) wireless communications, delivering excellent RF performance.
Onboard 320KB ROM, 512KB HP SRAM, 16KB LP SRAM, and external 16MB Flash.
Features a Type-C interface, supporting reversible connection (no need to worry about plug orientation).
Onboard 1.83-inch capacitive touch LCD screen with a resolution of 240 × 284 and 65K colors.
Integrates the built-in ST7789P driver chip and CST816D capacitive touch chip, communicating via SPI and I2C interfaces respectively without occupying excessive GPIO resources.
Onboard QMI8658 six-axis inertial measurement unit (3-axis accelerometer, 3-axis gyroscope), enabling motion posture detection, step counting, and other functions.
Onboard PCF85063 RTC chip, connected to the battery via the AXP2101 to achieve uninterrupted power supply.
Features two side buttons (PWR and BOOT) with customizable functions, facilitating custom function development via the buttons.
Onboard 3.7V MX1.25 lithium battery charging and discharging interface.
Equipped with a dual digital microphone array, supporting audio algorithms such as noise reduction and echo cancellation, suitable for near-field/far-field voice wake-up applications.
Onboard ES8311 audio codec chip, microphone, and speaker, enabling seamless AI application development.
Exposes GPIO, I2C, USB, and UART pads for external device connection and debugging, supporting flexible peripheral function configuration.
Supports precise controls such as flexible clock configuration and independent module power setting, enabling low-power modes for multiple scenarios.
The touch screen offers high transmittance, fast response speed, and long service life.

LCD Screen Parameters

DISPLAY PANEL	IPS	DISPLAY SIZE	1.83inch
RESOLUTION	240 × 284 pixels	COLOR	65K
BRIGHTNESS	300cd/㎡	CONTRAST RATIO	1200:1
COMMUNICATION INTERFACE	SPI	Driver IC	ST7789P
TOUCH TYPE	Supports	Touch IC	CST816D

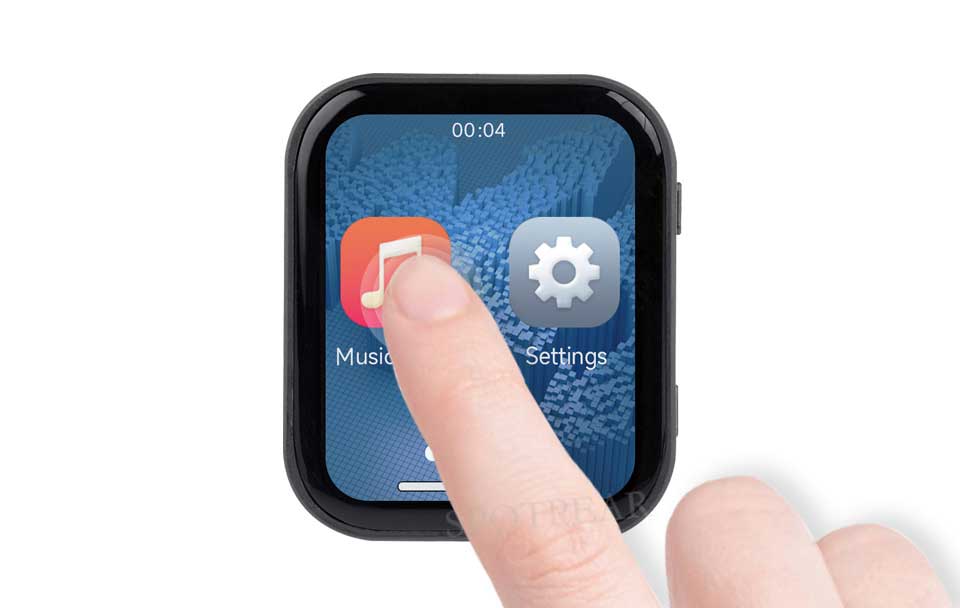

Tiny Size, Touch More Possibilities

Suitable For Various Smart Device Development, Enabling Human-Machine Interaction Function, Supports Connecting To A Battery For Independent Operation

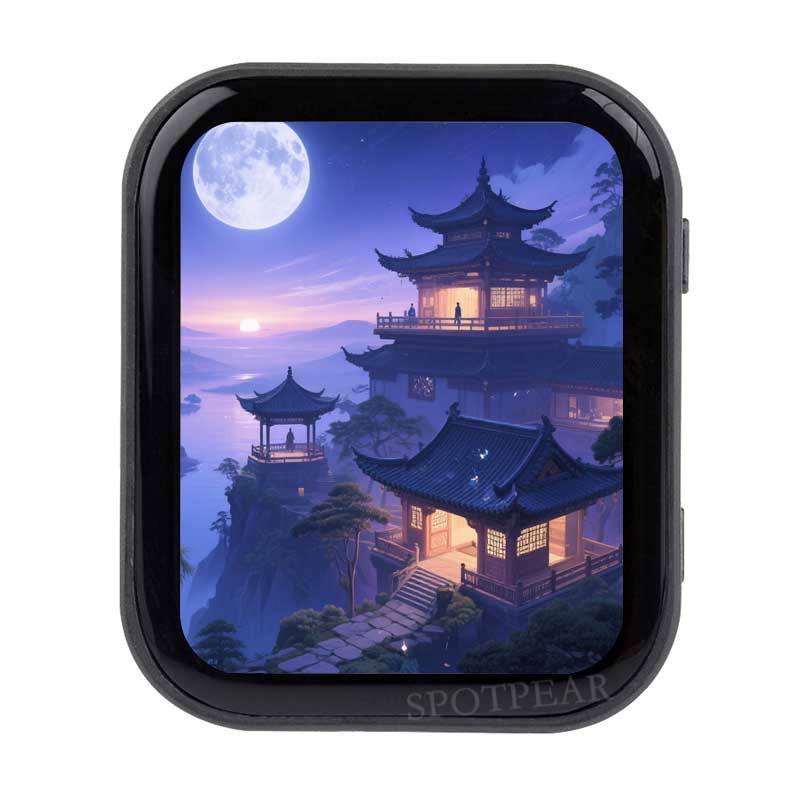

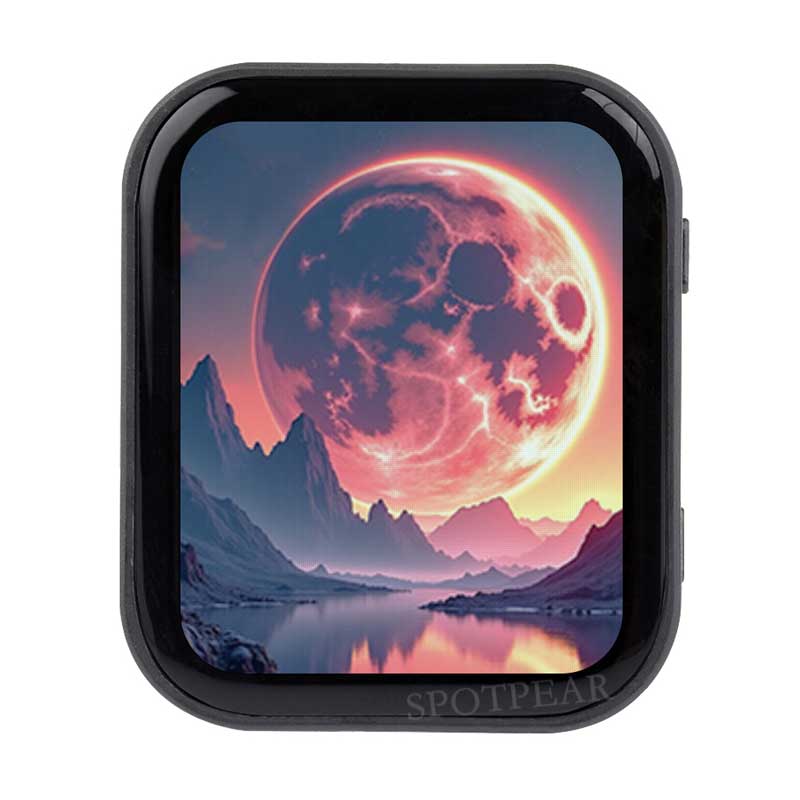

IPS Display Panel

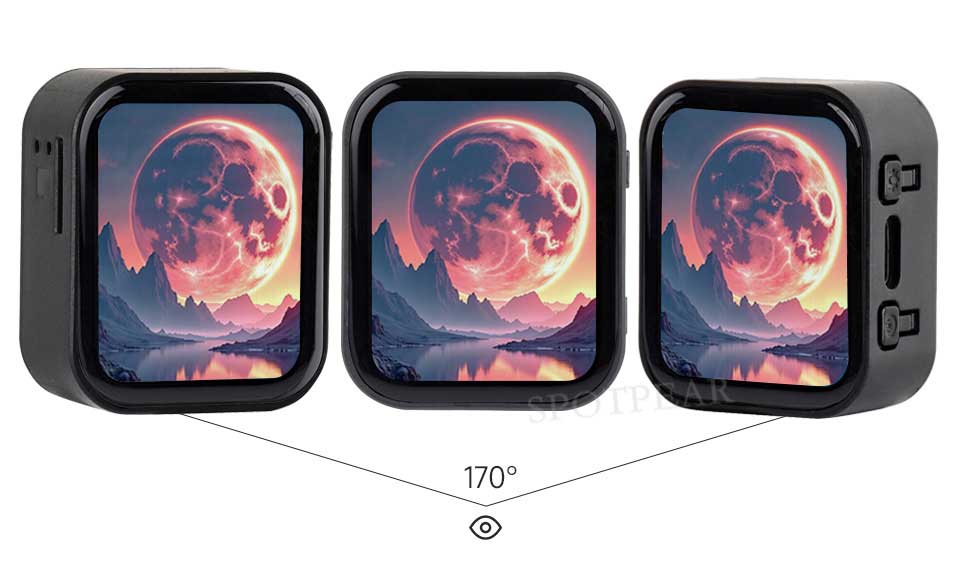

Excellent Display Performance, Wide Viewing Angle

Onboard Audio Codec Chip

Onboard ES8311 Audio Codec Chip And ES7210 Echo Cancellation Circuit To Meet Daily Audio Application Scenarios

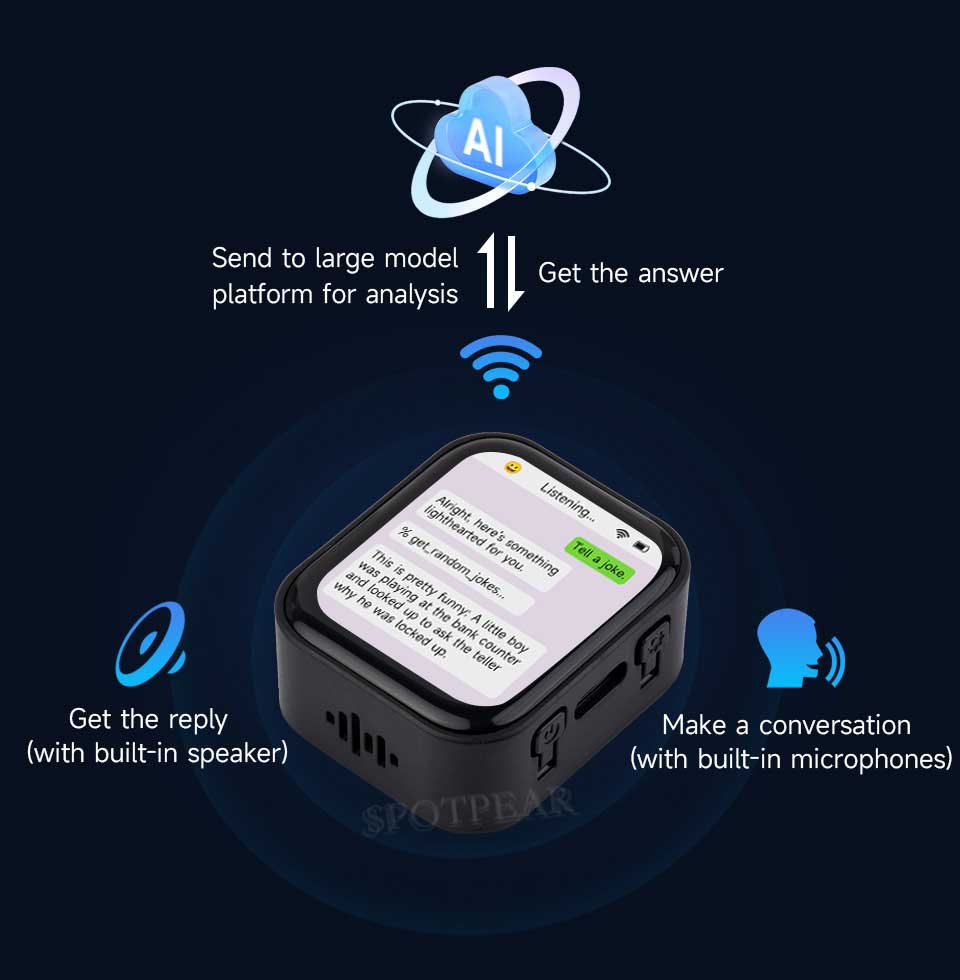

Supports AI voice interaction.

Allows Access To Online Large Model Platforms Such As DeepSeek, Doubao, Etc

Supports ESP-IDF, Arduino

Comprehensive SDK, Dev Resources, Tutorials To Help You Easily Get Started

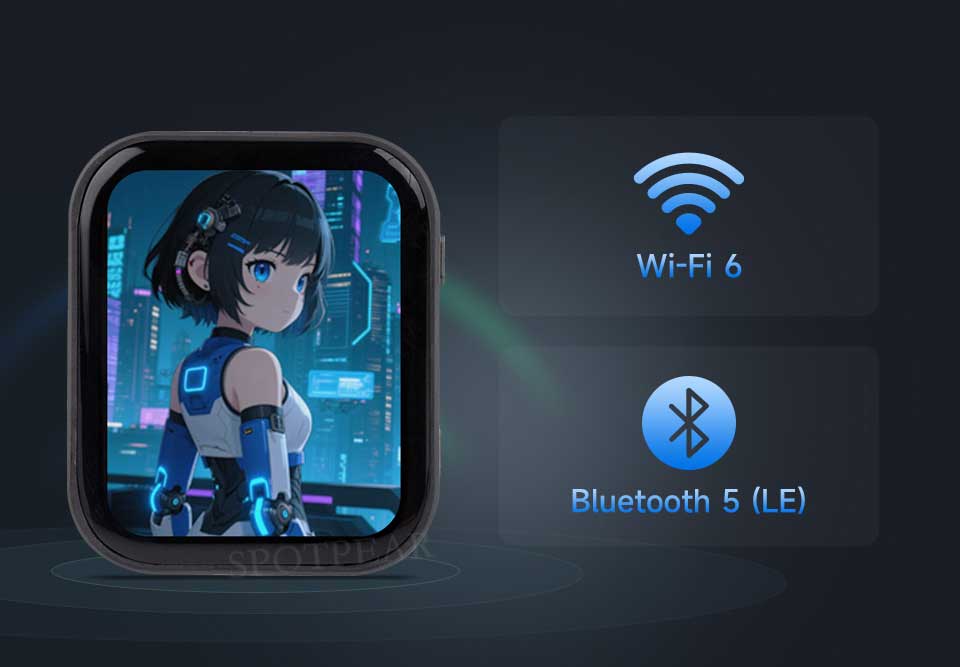

Supports Wi-Fi 6 and BLE 5

Supports Wi-Fi 6, Bluetooth 5, and IEEE 802.15.4 (Zigbee 3.0 and Thread).
Its Bluetooth Low Energy (BLE) subsystem supports Bluetooth 5 (LE) and Bluetooth Mesh.

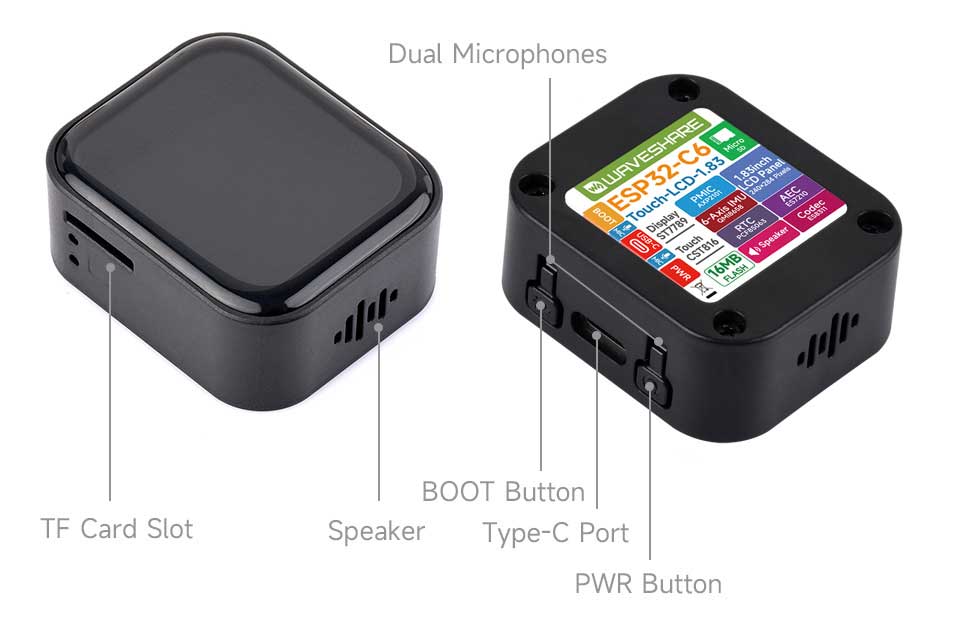

Function Introduction

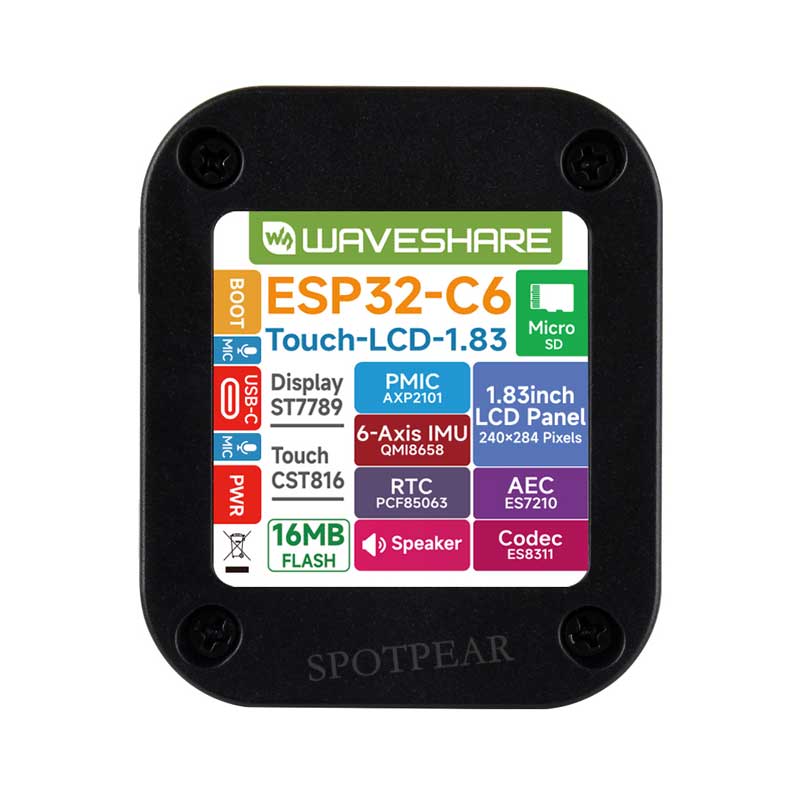

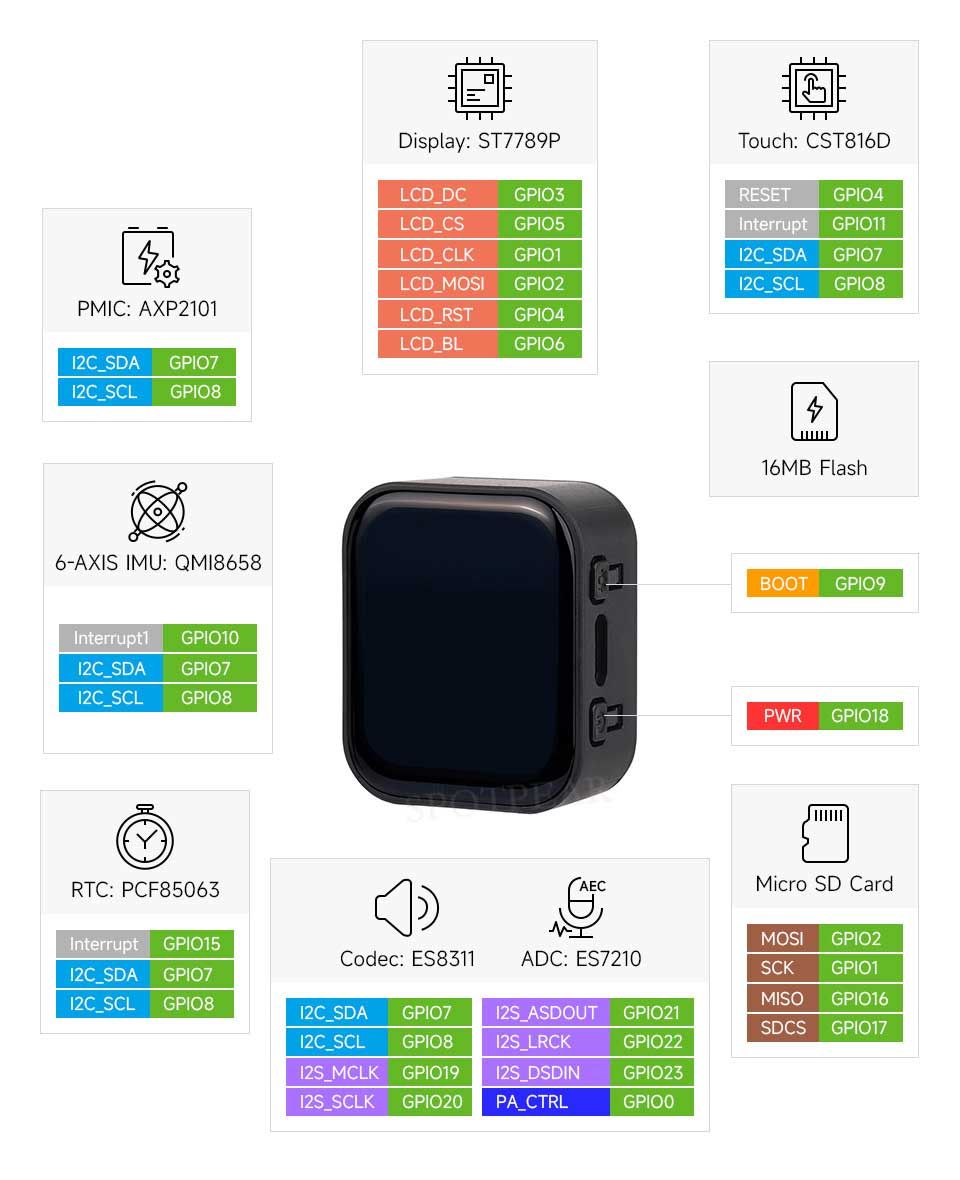

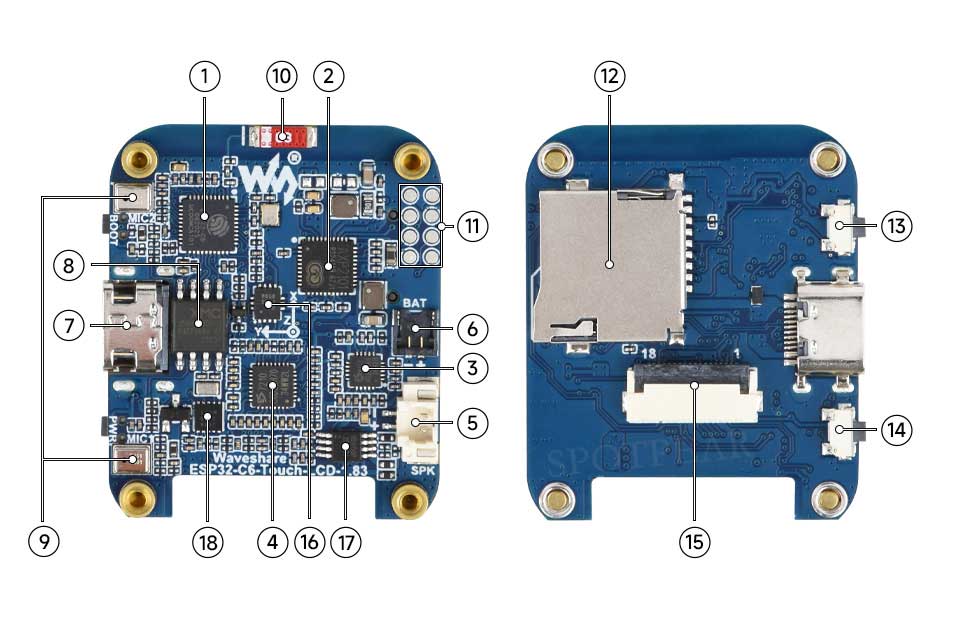

What's On Board

ESP32-C6
Supports Wi-Fi and Bluetooth SoC with a 160MHz operating frequency.
AXP2101
Highly integrated power management chip
ES8311
Low-power audio codec chip
ES7210
The ADC chip implements an echo cancellation circuit.
MX1.25 Speaker Interface
Polarity-insensitive
1.2mm Lithium Battery Interface
1.2mm 2PIN connector, usable for connecting a 3.7V lithium battery and supporting charging and discharging.Used with a housing, a 6 × 25 × 25 specification battery is recommended for internal installation.
Type-C Interface
USB Interface, used for program burning and log printing.
16MB NOR-Flash
Used for data storage.

SMD Microphone Array
Microphone input and echo cancellation
On-board SMD Antenna
Supports 2.4GHz Wi-Fi (802.11 b/g/n) to Bluetooth 5 (LE)
Reserved GPIO Pads
Leads out available IO function pins for easy expansion.
Micro SD
BOOT Button
Used for device startup and function debugging.
PWR Power Button
Long press for 6 seconds to shut down, short press to power on, and custom functions are supported.
1.83-inch Screen Terminal
QMI8658
Six-axis Inertial Measurement Unit (IMU), including a 3-axis gyroscope and a 3-axis accelerometer.
Speaker Power Amplifier Chip
PCF85063
RTC Clock Chip
