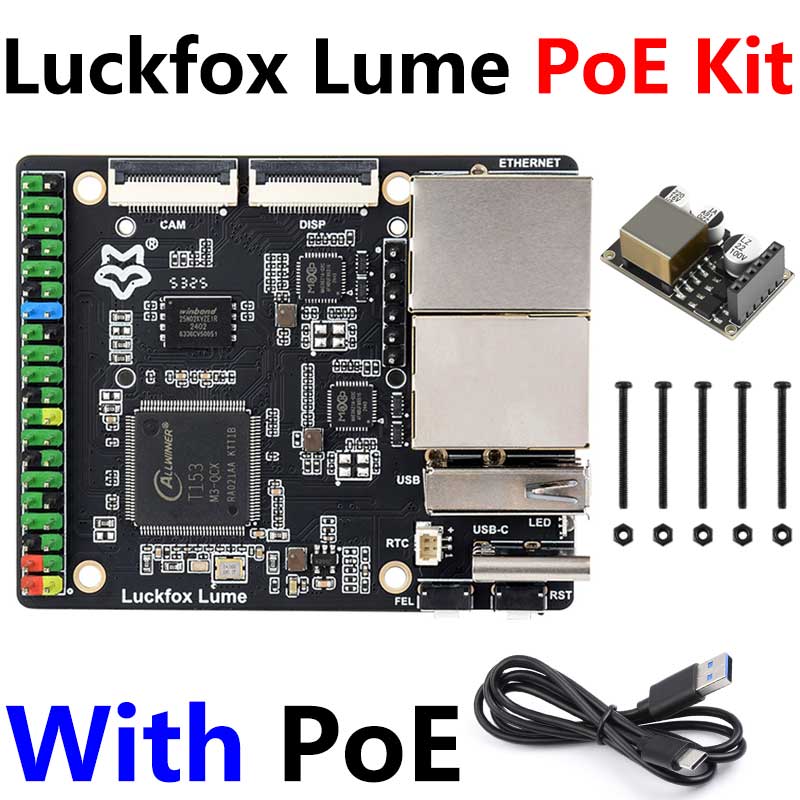

Luckfox Lume Allwinner T153 Linux Development Board 128MB DDR3 Dual Gigabit Ethernet Ports

Luckfox Lume Allwinner T153 Linux Development Board 128MB DDR3 Dual Gigabit Ethernet Ports

$34.9

Brand：Luckfox

SKU：010536900000

Date：2026-03-28 13:43

Part Number：

Luckfox Lume【No PoE】 Luckfox Lume PoE Kit【With PoE】

No：

- +

In Stock

Buy It Now

Add to cart

Ask a Question

Copy Link

Luckfox Lume High-Performance Linux Development Board, Based On The Allwinner T153 Multi-core Heterogeneous Industrial Processor, Dual Gigabit Ethernet Ports, 128MB DDR3 Memory And 256MB Flash

Luckfox Lume

Based On The Allwinner T153 Multi-Core Heterogeneous Industrial Processor

Version Options

Specifications

Processor	Quad-core Arm Cortex-A7 + Single-core RISC-V E907
Memory	128MB DDR3
Storage	SPI NAND FLASH (256MB)
Display Interface	MIPI DSI 4-lane
Camera Interface	MIPI CSI 2-lane
USB	USB2.0 Type-C port × 1, USB2.0 Type-A port × 1
GPIO	40PIN GPIO header
Ethernet	1000M Ethernet port × 2
External Storage	onboard TF card slot
Power Input	5V DC
Others	2PIN SH1.0 RTC batt header

High-Performance Industrial Processor

Features A Quad-Core Arm Cortex-A7 And A Single-Core RISC-V E907

MIPI DSI 4-Lane Interface

Powerful Performance, Easy To Drive Large Screens

* Supports up to 1920 × 1080 at 60Hz resolution.
For reference only, the 10.1-DSI-TOUCH-A is NOT included.

Dual Gigabit Ethernet Ports

Supports dual-port policy-based routing, enabling physical isolation between internal and external network traffic, ensuring critical data security and improving management efficiency

* Note: the PoE module is required for ETH0 PoE power supply function.

Onboard TF Card Slot

Allows Storage Expansion Via TF Card

Suitable For More Application Examples

Pin Definition

What's On Board

T153M3-QCX
SPI NAND FLASH (256MB)
CSI camera interface
DSI display interface
RJ45 1000M Ethernet port with indicator
with PoE support
RJ45 1000M Ethernet port with indicator
PoE module header
USB2.0 HOST Type-A port
Dual-color status LED
The red light indicates power supply status, and the green light indicates system operation status in the default image.

Type-C port
for power supply and program burning
RESET button
FEL button
Press it when powering on or resetting to enter download mode
RTC Batt header
40PIN GPIO header
TF card slot

Outline Dimensions

[] Luckfox Lume

[] Luckfox Lume PoE Kit
