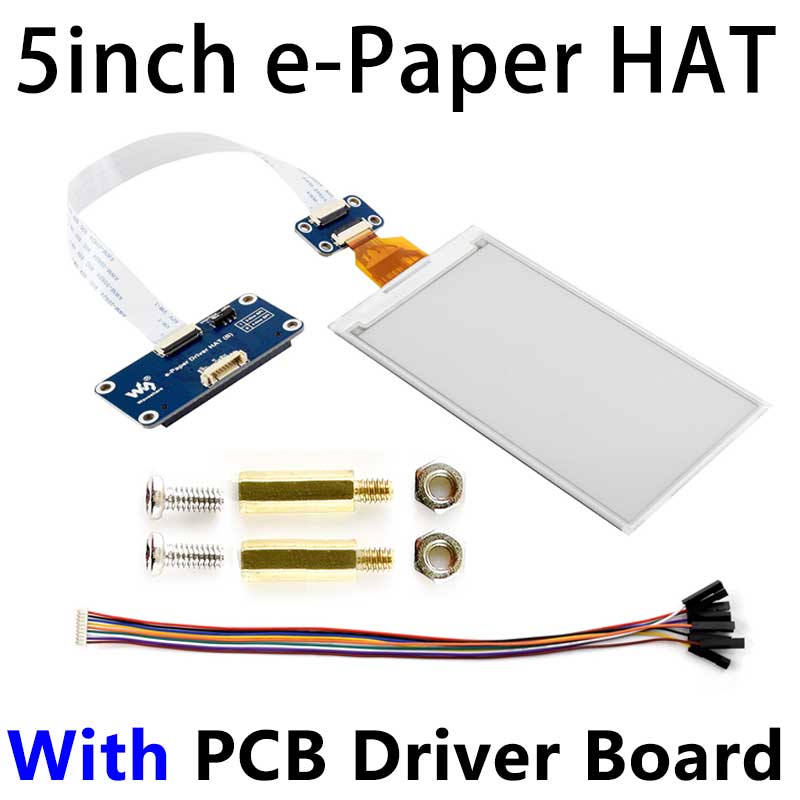

Raspberry Pi 5 inch e-Paper ink screen display black white 960×552 For Arduino /Jetson /STM32 /ESP32
$38.9
5inch e-Paper display, e-ink display, 960 × 552, Black / White, SPI Interface, Based On Raspberry Pi 40PIN GPIO Header
5″ E-Paper Display
Low Power, Wide Viewing Angle, Paper-Like Effect Without Electricity
Ideal for price tags, shelf labels, industrial instruments...
Version Options
- No backlight, keeps displaying last content for a long time even when power down
- Ultra low power consumption, basically power is only required for refreshing
- Comes with online development resources and manual (e-Paper Driver HAT circuit diagram, examples for Raspberry Pi / Jetson Nano / Arduino / STM32 / ESP32)
- Optional for e-Paper Driver HAT:
- Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano
- Adapting SPI interface for connecting with controller boards like Raspberry Pi / Arduino / STM32 / ESP32, etc.
- Onboard voltage translator, compatible with 3.3V / 5V MCUs
| OPERATING VOLTAGE | Raw display: 3.3V | DISPLAY COLOR | Black/White |
|---|---|---|---|
| with driver HAT: 3.3V/5V | |||
| INTERFACE | 3-wire SPI, 4-wire SPI | GREY SCALE | 2 |
| OUTLINE DIMENSIONS | Raw display: 126.38 × 71.19 × 0.79 (mm) | PARTIAL REFRESH TIME | 0.7s |
| e-Paper Driver HAT: 30.50 × 65.00 (mm) | FULL REFRESH TIME | 1.8s | |
| DISPLAY SIZE | 110.59 × 62.65 (mm) | REFRESH POWER | <50mW |
| DOT PITCH | 0.1833 × 0.1833 (mm) | STANDBY CURRENT | <0.01uA (almost none) |
| RESOLUTION | 960 × 552 pixels | VIEWING ANGLE | >170° |
E-paper display utilizes microcapsule electrophoretic technology for displaying, the principle is: charged particles suspended in clear fluid will move to sides of microcapsule when electric field is applied, making the microcapsule become visible by reflecting ambient light, just as traditional printed paper.
E-paper display will clearly display images/texts under lamplight or natural light, requires no backlight, and features nearly up to 180° viewing angle. It is usually used as e-reader due to its paper-like effect.
Onboard SPI Control Interface, For Use With Controller Boards Like Raspberry Pi / Arduino / STM32 / ESP32
| PWR | Power control pin |
|---|---|
| BUSY | Busy status output |
| RST | External reset, low active |
| DC | Data / Command selection (high for data, low for command) |
| CS | SPI chip selection, low active |
| SCLK | SPI CLK pin |
| DIN | SPI MOSI pin |
| GND | Ground |
| VCC | 3.3V/5V |
Compatible With 3.3V / 5V MCUs
Standard Raspberry Pi 40PIN GPIO Header
Compatible With Raspberry Pi Series Boards, Jetson Nano
* for reference only, the Raspberry Pi and Jetson Nano in the pictures are NOT included.
Suitable For Price Tags, Asset/Equipment Tags, Shelf Labels, Conference Name Tags...
