ESP32 e-Paper Driver Board can not upload demo code macbook

2024-04-06 14:00:37 Ask

Hi,

I have bought the product :

https://www.aliexpress.com/item/1005001408165904.html?spm=a2g0o.order_list.order_list_main.17.21ef1802ifVbHu

I have followed the document :

https://www.waveshare.com/wiki/E-Paper_ESP32_Driver_Board#

and

https://files.waveshare.com/upload/1/1a/CH34X_DRV_INSTALL_INSTRUCTIONS.pdf

I am using macbook pro with m1 pro chip and os is sonoma 14.2.1.

On Arduino IDE, I only the port : /dev/cu.Bluetooth-Incoming-Port

and I can not upload demo code using this port (Failed to connect to ESP32: No serial data received.)

When I execute the code : ls /dev/tty*

I can not see tty.wchusbserialx

The result is :

/dev/tty				/dev/ttyra				/dev/ttyu5

/dev/tty.Bluetooth-Incoming-Port	/dev/ttyrb				/dev/ttyu6

/dev/ttyp0				/dev/ttyrc				/dev/ttyu7

/dev/ttyp1				/dev/ttyrd				/dev/ttyu8

/dev/ttyp2				/dev/ttyre				/dev/ttyu9

/dev/ttyp3				/dev/ttyrf				/dev/ttyua

/dev/ttyp4				/dev/ttys0				/dev/ttyub

/dev/ttyp5				/dev/ttys000				/dev/ttyuc

/dev/ttyp6				/dev/ttys1				/dev/ttyud

/dev/ttyp7				/dev/ttys2				/dev/ttyue

/dev/ttyp8				/dev/ttys3				/dev/ttyuf

/dev/ttyp9				/dev/ttys4				/dev/ttyv0

/dev/ttypa				/dev/ttys5				/dev/ttyv1

/dev/ttypb				/dev/ttys6				/dev/ttyv2

/dev/ttypc				/dev/ttys7				/dev/ttyv3

/dev/ttypd				/dev/ttys8				/dev/ttyv4

/dev/ttype				/dev/ttys9				/dev/ttyv5

/dev/ttypf				/dev/ttysa				/dev/ttyv6

/dev/ttyq0				/dev/ttysb				/dev/ttyv7

/dev/ttyq1				/dev/ttysc				/dev/ttyv8

/dev/ttyq2				/dev/ttysd				/dev/ttyv9

/dev/ttyq3				/dev/ttyse				/dev/ttyva

/dev/ttyq4				/dev/ttysf				/dev/ttyvb

/dev/ttyq5				/dev/ttyt0				/dev/ttyvc

/dev/ttyq6				/dev/ttyt1				/dev/ttyvd

/dev/ttyq7				/dev/ttyt2				/dev/ttyve

/dev/ttyq8				/dev/ttyt3				/dev/ttyvf

/dev/ttyq9				/dev/ttyt4				/dev/ttyw0

/dev/ttyqa				/dev/ttyt5				/dev/ttyw1

/dev/ttyqb				/dev/ttyt6				/dev/ttyw2

/dev/ttyqc				/dev/ttyt7				/dev/ttyw3

/dev/ttyqd				/dev/ttyt8				/dev/ttyw4

/dev/ttyqe				/dev/ttyt9				/dev/ttyw5

/dev/ttyqf				/dev/ttyta				/dev/ttyw6

/dev/ttyr0				/dev/ttytb				/dev/ttyw7

/dev/ttyr1				/dev/ttytc				/dev/ttyw8

/dev/ttyr2				/dev/ttytd				/dev/ttyw9

/dev/ttyr3				/dev/ttyte				/dev/ttywa

/dev/ttyr4				/dev/ttytf				/dev/ttywb

/dev/ttyr5				/dev/ttyu0				/dev/ttywc

/dev/ttyr6				/dev/ttyu1				/dev/ttywd

/dev/ttyr7				/dev/ttyu2				/dev/ttywe

/dev/ttyr8				/dev/ttyu3				/dev/ttywf

/dev/ttyr9				/dev/ttyu4

Could you please help me about executing the demo code?

Best regards,

ESP32 e-Paper Driver Board can not upload demo code macbook
9answers
SpotPearGuest49792
Answer time:
2024-04-07 09:39:58

https://spotpear.com/index/study/detail/id/375.html

Do you install driver?

If still can not work , You can try to change a USB cable

Like0

report

SpotPearGuest49792
Answer time:
2024-04-08 09:55:35

Hi,

I have tried to install the driver (CH343 - Nev version) and get the attached error message "A program tried to load new system extension(s) signed by “Nanjing Qinheng Microelectronics Co., Ltd.” that need to be updated by the developer."

I also changed the USB cable, but the situation is the same.

I can not find "tty.wchusbserialx"  when I execute command "ls /dev/tty*"

It seems that the driver is not suitable with my system.

Besides that, I have a question : is it possible that the driver board is an old version, so I need to install CP2102 driver?

Best regards,

Like0

report

SpotPearGuest49792
Answer time:
2024-04-09 09:30:58

Thank you for your help, but installing the driver you sent did not solve the problem.

The result of the command "ls /dev/tty*" is same and I cannot find the port on Arduino IDE.

I have tried a third cable by the way.

Like0

report

SpotPearUser4
Answer time:
2024-04-09 10:17:34

Will there still be errors with the new firmware installation? Could you take a photo to show the hardware connection? In most cases we encounter, the issue tends to be with the data cable, either being faulty, leading to recognition but no data transfer, or only capable of supplying power, resulting in no recognition or data transfer.

Like0

report

SpotPearUser4
Answer time:
2024-04-09 10:32:39

Could you try it on a Windows system? Switch to a computer with Windows. I suspect your Mac system might not be compatible with this module temporarily.

Like0

report

SpotPearGuest49792
Answer time:
2024-04-16 09:20:27

Hi,

I have tried two different PCs running on Windows and unfortunately could not successfully connect to the device.

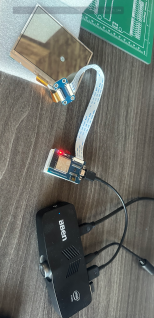

Please find attached images showing the device connection to mini PC and Arduino IDE showing only COM1 on the port list.

Best regards,

Like0

report

SpotPearGuest49792
Answer time:
2024-04-16 09:23:35

check

Like0

report

SpotPearUser4
Answer time:
2024-04-16 09:48:48

It wasn't recognized; you also need to install drivers on Windows.

https://www.waveshare.com/wiki/E-Paper_ESP32_Driver_Board#Software_Driver

Like0

report
