HI, I am trying to get my EYE 0.71 to work with a ESP32-WROOM-32 module. I used the example code that was supplied in the resource tab, but I still cannot get it to work. Can you give me the pinning that I need to use to get it to work?
- sales/support
Google Chat: zj734465502@gmail.com
- sales
+86-0755-88291180
- sales01
sales01@spotpear.com
- sales02
dragon_manager@163.com
- support
services01@spotpear.com
- CEO-Complaints
manager01@spotpear.com
- sales/support
WhatsApp:13246739196
0.71inch-EYE-Board How to connect EYE 0.71 inch to a ESP32-WROOM-32 module
2024-09-19 04:59:02 Ask
1answers
SpotPearGuest9a52c
- Answer time:

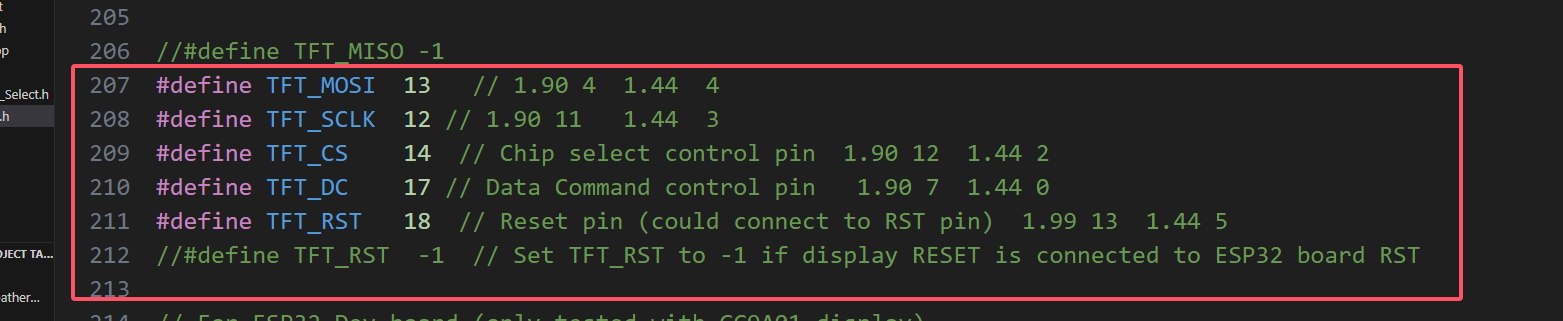

Open the User_Setup.h file in the TFT_eSPI folder under the library folder and modify the pin
Modify the pins here
Like0
report
