Why my Raspberry Pi Zero's onboard LED Indicator Lights don't Flash when I power it?

2024-11-29 10:23:00 Ask

When I powered my Raspberry Pi Zero, the LED indicator on the Raspberry Pi Zero did not light up.

The current detected by the current check was very small and almost

This is my connection，this is a bad Raspberry Pi Zero ？

Raspberry Pi Zero bad LED Indicator Light not Flash

1answers

SpotPearGuest732ef

Answer time:2024-11-29 11:46:22

】From your picture，I find your problem, You do not insert a SD card with official OS

Sorry，May I ask if this is your first time using a Raspberry Pi Zero?

Many beginners have basic misunderstandings,

I need tell you the following information

】If the SD card does not have the correct image or if there's an issue with the SD card itself,

The indicator light LED on the Raspberry Pi Zero will not turn on.

】You can download the latest operating system that supports Raspberry Pi Zero from the official website：

https://www.raspberrypi.com/software/operating-systems/

See user guide from here：

https://www.raspberrypi.com/documentation/computers/getting-started.html

】To prove what I said. Here is the test thing

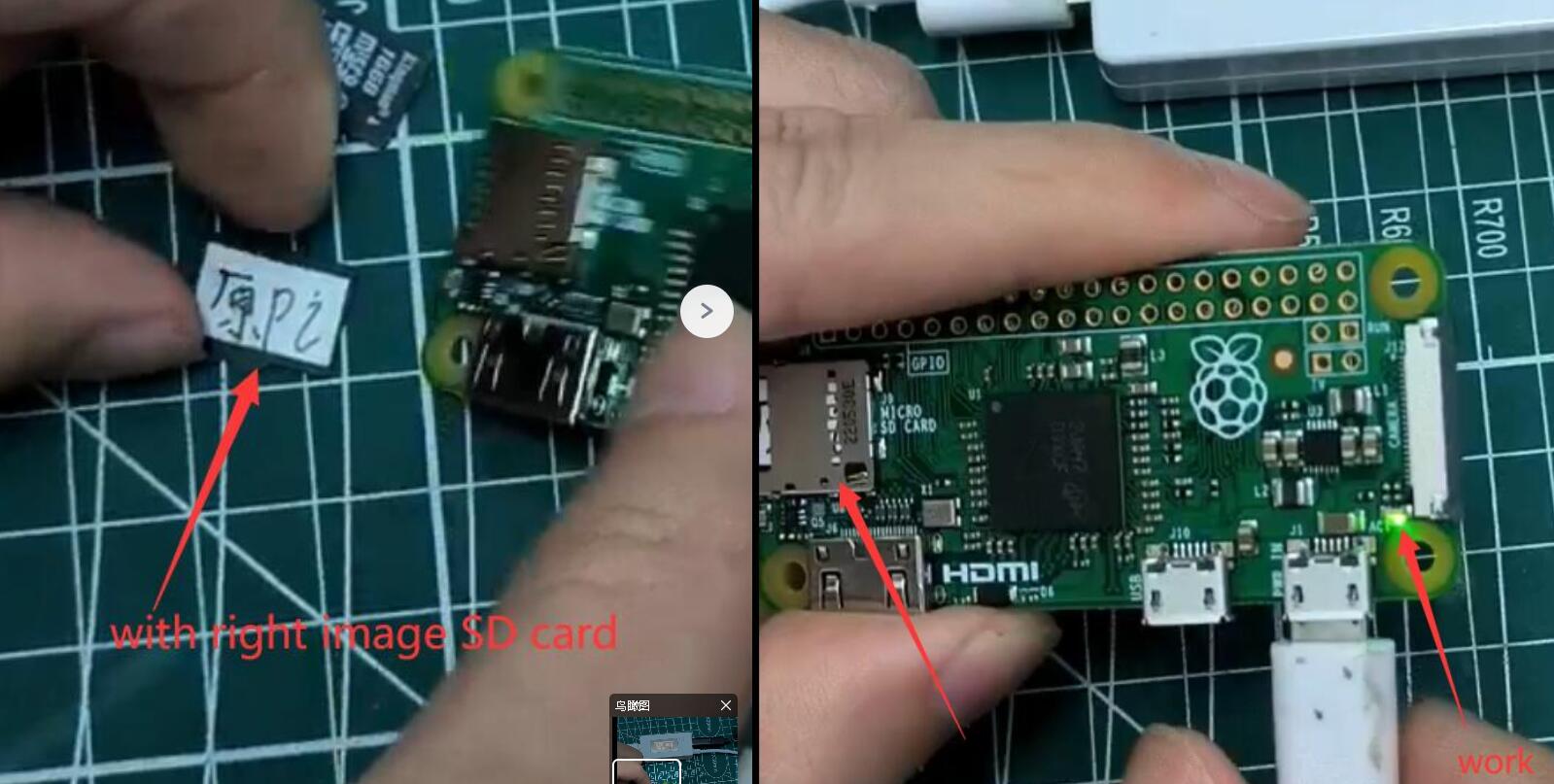

From the video. This is the correct phenomenon （With good SD and right official OS）

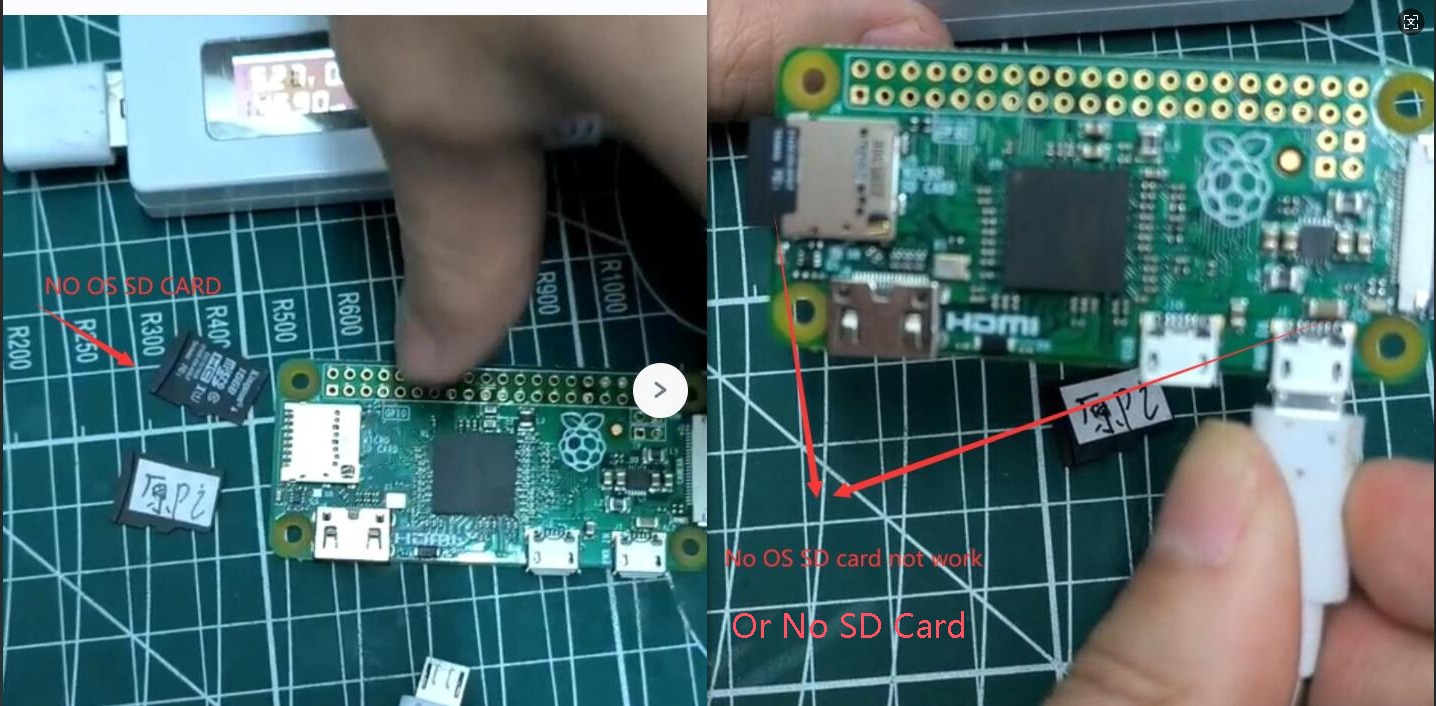

From the video. This is the error phenomenon （With bad SD or error/bad OS or Not insert a SD）
