Hello,

I would like to install two such displays in a figure as eyes. To do this, I would have to rotate the displays 90 degrees, once clockwise and once counterclockwise, so that the connections face the center. Can they be configured this way ? Is this possible with one control board, or do I need a separate one for each display ?

Or can I also control the displays with another circuit board, such as the Raspberry Pi Pico ?

thanks and best Regards

Markus

APost Reply

Like0| report

4answers

SpotPearGuest55fca

Answer time:2026-01-02 18:09:14

I should also mention that I want to save animated eyes so that you can see the eyelids opening and closing.

Like0

report

SpotPearGuestc387a

Answer time:2026-01-03 14:14:01

As long as there are enough GPIOs to separately control two independent displays, a single control board can be used to control the displays.

Like0

report

SpotPearGuest55fca

Answer time:2026-01-04 01:01:58

ok,thanks for the answer

Like0

report

SpotPearUser3019

Answer time:2026-01-07 09:15:53

That's an interesting project! Thinking about rotating those displays makes me feel like I'm strategizing in Bitlife , carefully planning my character's life choices. It sounds like you need a flexible control system. While I'm not an expert on display hardware, I'd guess that whether you can control both with one board depends on its capabilities. Check the specs or maybe ask in a hardware-focused forum.

Like0

report

APost Reply

Some Question

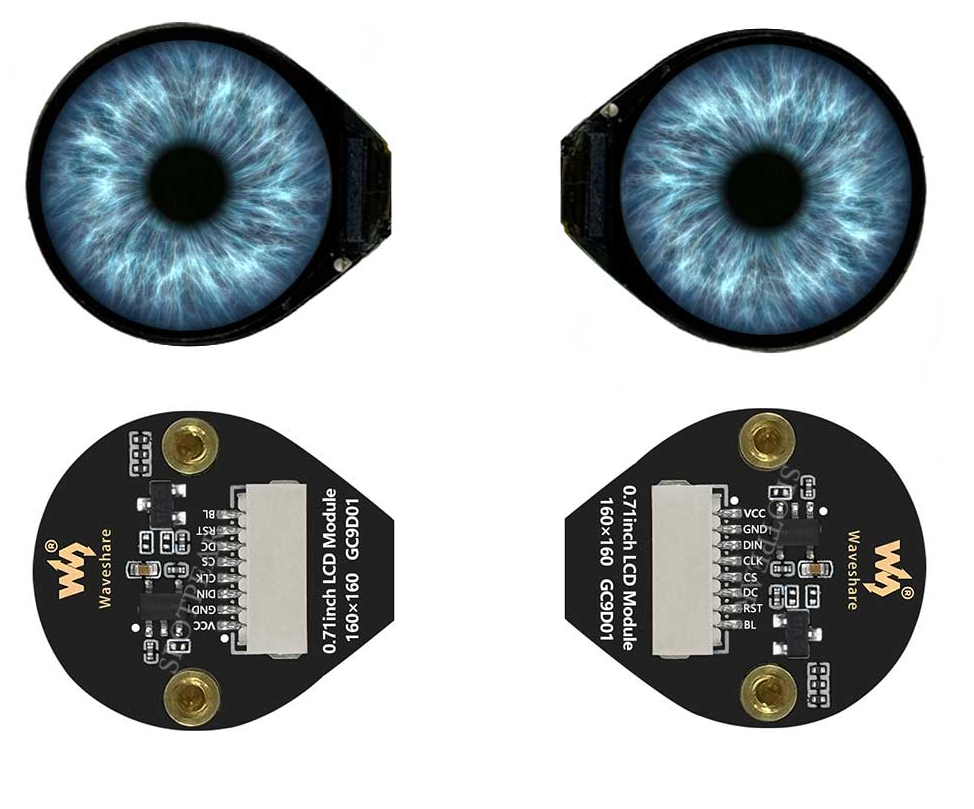

Electronic EYE 0.71 inch Round LCD Display Screen For Arduino Raspberry Pi ESP32 Pico STM32
