Raspberry Pi 10.1inch dsi display not work with pi5

2024-04-07 11:50:16 Ask

I downloaded Pre-installed image.

I screwed the board to the display.

I connected everything according to the instructions from here:

https://www.spotpear.com/index.php/index/study/detail/id/833.html?spm=a2g0s.imconversation.0.0.74223e5f1gi07G

but the display still doesn't work.

kmsprint and xrandr attached

Raspberry Pi 10.1inch dsi display not work with pi5
7answers
SpotPearGuestf9576
Answer time:
2024-04-07 11:59:21

】Check your system version with "uname -a", and if it's the 6.6.20 kernel, run

sudo rpi-update pulls/6050

to perform the fix.

Remember to back up any important data before updating to prevent loss in case of any issues.

Add the following code to config.txt

dtoverlay=vc4-kms-dsi-waveshare-panel,10_1_inch


】Try this our pre-configured  image

https://drive.google.com/file/d/17dR27YgMWdooZstDSJWwnHL3j9TukPpU/view?usp=drive_link

Add the following code to config.txt

dtoverlay=vc4-kms-dsi-waveshare-panel,10_1_inch


Reference from this link

https://github.com/raspberrypi/linux/pull/6050


Like0

report

SpotPearGuest49792
Answer time:
2024-04-07 20:03:26

https://drive.google.com/file/d/17o3XsEUdJn1xNYPBTWarNBOyZ1BP-jGi/view?usp=sharing

try this image , just write it , No need other configured code The LCD will display on PI5

Like0

report

SpotPearGuest7a0b1
Answer time:
2024-04-09 11:02:04

still can not work

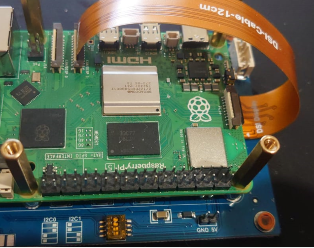

I connect LCD like this

Like0

report

SpotPearUser4
Answer time:
2024-04-09 11:02:54

The image and configuration I sent by default use I2C0.

This is erro

Like0

report

SpotPearUser4
Answer time:
2024-04-09 11:03:43

You need set switch like this

Power off, change the dip switch back to the I2C0 position, then restart, and it should be fine.

Like0

report

SpotPearGuest7a0b1
Answer time:
2024-04-09 11:05:04

It's working)))

How now i can to enter password?

Where screen keyboard?

Like0

report

SpotPearUser4
Answer time:
2024-04-09 11:05:27
pi
raspberry

You need use a extra keyboard to USB

Like0

report
