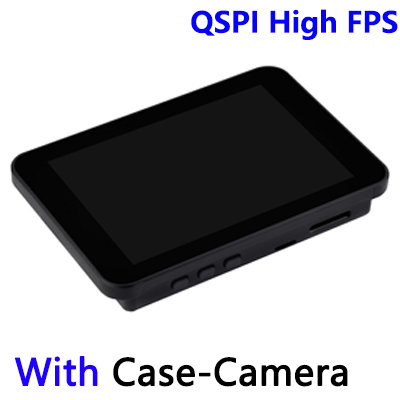

DeepSeek XiaoZhi AI Voice Chat Robot BOX ESP32-S3 Development Board 3.5 inch QSPI LCD N16R8 Touchscreen Display 6-Axis /Camera /SD
$33.9
ESP32-S3 3.5 inch IPS 262K color LCD touch screen with camera development board 320×480 resolution support Wi-Fi Bluetooth with case support Xiaozhi AI DeepSeek
EPS32 DeepSeek AI Recommend
ESP32 Display Recommend
ESP32-S3
3.5-inch rounded corner LCD screen development board
QSPI display, integrated audio input and output module, enabling AI interaction and offline voice control
Version selection
Product Features
This product is a high-performance, highly integrated microcontroller development board designed by Waveshare. It is equipped with a 3.5-inch capacitive high-definition IPS screen, a highly integrated power management chip, a six-axis sensor (three-axis accelerometer and three-axis gyroscope), RTC, and low-power audio codec chips and other peripherals, making it easy to develop and embed into products. No assembly or wiring is required, and you can easily play with Xiaozhi AI.
- Equipped with ESP32-S3R8 high-performance Xtensa 32-bit LX7 dual-core processor, with a main frequency of up to 240MHz
- Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE), onboard antenna
- Built-in 512KB SRAM and 384KB ROM, stacked 8MB PSRAM and external 16MB Flash
- The Type-C interface improves user convenience and device compatibility
- Onboard 3.5-inch capacitive touch HD IPS screen, 320 × 480 resolution, 262K color, can clearly display color images
- Built-in AXS15231B display driver integrated chip, using QSPI and I2C interface communication
- Onboard QMI8658 six-axis inertial measurement unit (3-axis acceleration, 3-axis gyroscope) can detect device deflection status, step counting and other functions
- Onboard PCF85063 RTC chip, connected to the battery through AXP2101, to achieve uninterrupted power supply, and reserve a backup battery pad to ensure that the RTC function continues to work when the main battery is replaced
- Onboard PWR and BOOT two customizable side buttons, convenient for custom function development using buttons
- Onboard 3.7V MX1.25 lithium battery charging and discharging interface
- Lead out I2C, UART, USB and multiple GPIOs for external devices and debugging, and flexibly configure peripheral functions
- Onboard Micro SD card slot provides expanded storage, fast data transfer and flexibility for data logging and media playback, simplifying circuit design
- Onboard camera interface, supports mainstream cameras such as OV5640, OV2640, etc.
- The advantages of using AXP2101 are efficient power management, support for multiple output voltages, charge management and battery management functions, and optimization of battery life
LCD screen parameters
| Display Panel | IPS | Display size | 3.5 in |
|---|---|---|---|
| Resolution | 320 × 480 pixels | Display Color | 262K |
| brightness | 210 cd/㎡ | Contrast | 1000:1 |
| Driver chip | AXS15231B | Touch Type | Capacitive Sensing |
| Display Interface | QSPI | Touch interface | I2C |
Support AI voice interaction
No need for complicated assembly and wiring steps, quickly connect to Xiaozhi AI
Transformed into your exclusive intelligent AI partner
Supports a number of domestic large language models such as DeepSeek, Doubao and Tongyi Qianwen
Capacitive touch
Applicable to the development of various intelligent devices and can realize human-computer interaction functions
IPS display panel
Excellent display performance, 262K color, wide viewing angle
Onboard audio codec chip
Supports high-quality audio processing, providing clear, high-quality audio input and output
Support OV2640 / OV5640 etc.
Mainstream cameras
The version with OV5640 camera is optional. The OV5640 camera supports 5 million pixels and is suitable for image acquisition, video surveillance and other application scenarios to meet diverse needs.
(Only the housing version includes the OV5640 camera)
Support ESP-IDF, Arduino
Equipped with a complete SDK and open source tutorials, it is easy to get started and can be quickly embedded into the application
Supports Wi-Fi and BLE 5
ESP32-S3 integrates 2.4GHz Wi-Fi (802.11 b/g/n) with 40MHz bandwidth, and its low-power Bluetooth subsystem supports Bluetooth 5 (LE) and Bluetooth Mesh
Resource Overview
- ESP32-S3R8
Wi-Fi and Bluetooth SoC, running at 240MHz, with 8MB PSRAM on-package
- Onboard patch antenna
- W25Q128JVSIQ
16MB NOR-Flash
- Camera interface
Support mainstream cameras such as OV5640 / OV2640
- Micro SD card slot
- IPEX 1st generation transposon
Can be switched to use external antenna by unsoldering resistor
- MX1.25 speaker port
- BOOT button
- RESET button
- PWR button
- AXP2101
Highly integrated power management chip
- Charging indicator
- Type-C port
- ES8311
Low power audio codec chip
- Power indicator
- microphone
- SH1.0 RTC battery interface
Access to rechargeable RTC battery
- MX1.25 Li-ion battery port
MX1.25 2PIN connector, can be used to connect 3.7V lithium battery, support charging and discharging
- 2.54mm header interface
Lead out available IO function pins for easy expansion
- PCF85063
RTC clock chip
- QMI8658
Six-axis inertial measurement unit (IMU), including a 3-axis gyroscope and a 3-axis accelerometer
