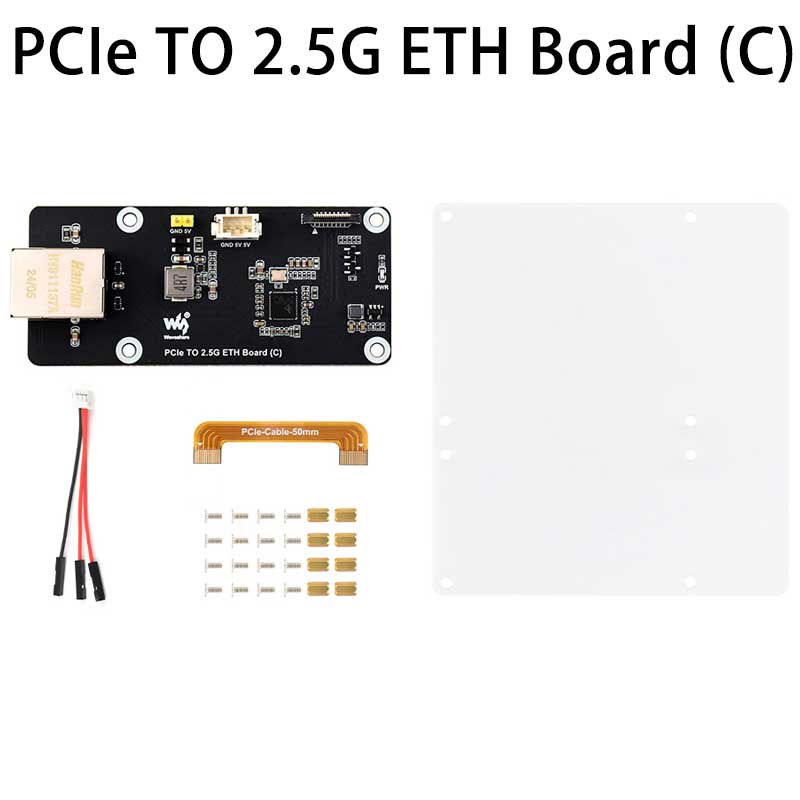

Raspberry Pi 5 PCIe to 2.5G Ethernet Adapter Board Plug and Play
$11.99
Brand：SpotPear
SKU：010147700000
Date：2025-11-28 13:50
Part Number：
Raspberry Pi 5 PCIe to 2.5G Ethernet Adapter Board – Pi 5 Dedicated, Driver-Free & Plug-and-Play for Raspberry Pi OS
PCIe to 2.5G Ethernet Adapter Board
Designed Exclusively for Raspberry Pi 5
Driver-Free & Plug-and-Play Support for Raspberry Pi OS
Product Specifications
| Main Control Chip | RTL8125 |
|---|---|
| Ethernet Port Type | RJ45 2.5G |
| PCIe Interface | PCIe ×1 Gen2 |
| Power Supply | 5V |
| Network Standard | 10/100/1000/2500Mbps |
| Status LED | Green LED: Blinking during communication Yellow LED: Steady On When Connected |
Connect to Pi5 via 16PIN Ribbon Cable
Designed for Pi 5's 16PIN PCIe Interface
Images are for illustrative purposes only. For detailed configurations, refer to the configuration list.
High-Performance Chip
Equipped with the Original High-Performance Realtek RTL8125 Main Control Chip
Driver-Free & Plug-and-Play for Raspberry Pi OS
With Acrylic Transparent Support Base Plate
Side-Mounted Design, No Occupancy of the Motherboard's Top Space
Images are for illustrative purposes only. For detailed configurations, refer to the configuration list.
Power Supply Mode
PCIe Ribbon Cable Power Supply is Used by Default
Images are for illustrative purposes only. For detailed configurations, refer to the configuration list.
Product Dimensions
