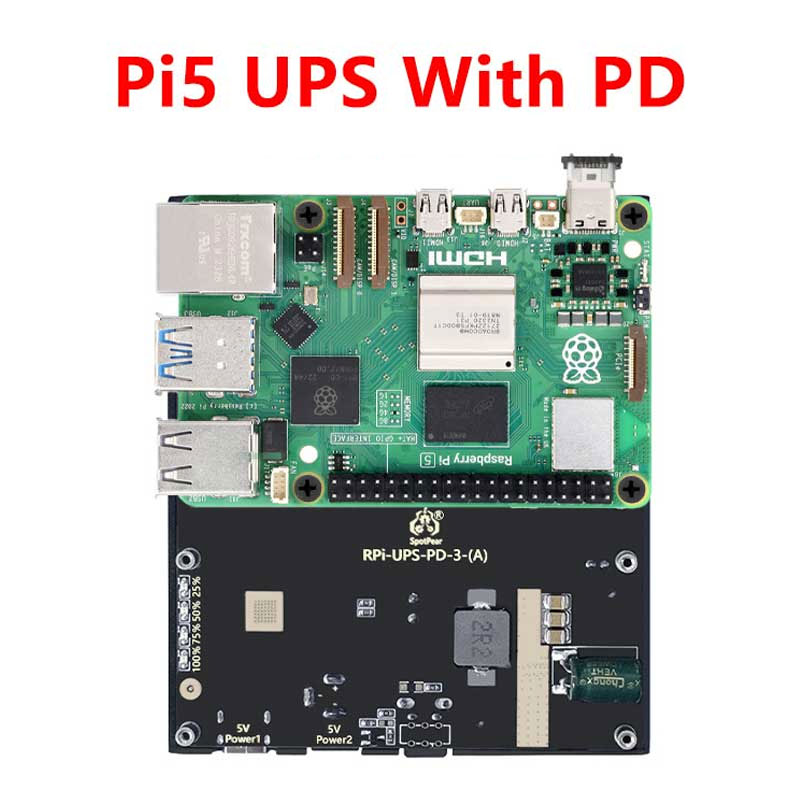

Raspberry Pi 5 / 4B UPS With PD Trigger Activation Uninterruptible Power Bank Supply 9600mAh 5V/5A 25W Also For Phone/Mini Computer PC

$29

Brand:SpotPear
SKU:0101053
Date:2024-09-03 19:02
Part Number:
No:
In Stock



Raspberry Pi 5 / 4B UPS With PD Trigger Activation Uninterruptible Power Supply 9600mAh 5V/5A 25W Power-Bank Also For Phone / Mini Computer PC

【Note】

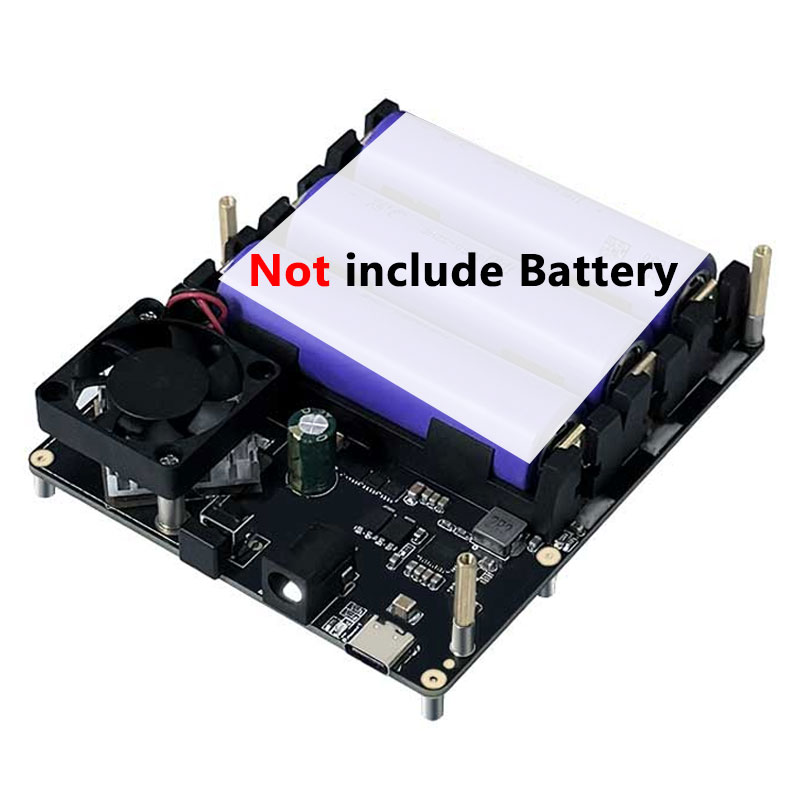

[] Not attempt to remove or replace the battery yourself. Any fire, explosion, or other incidents caused by reversing the battery polarity due to improper reassembly after self-replacement of the battery will be the customer's responsibility

【Overview】

[] Raspberry Pi 5 / 4B UPS With PD Trigger Activation Uninterruptible Power Supply 9600mAh 5V/5A 25W Power-Bank Also For Phone / Mini Computer PC

【Product Features】

[] TypeC PD Output For Raspberry Pi 5 /4B / Mobile phone / Mini PC, etc.

[] TypeC/DC Two Power Port (Recommend DC-5.5/2.5 5V/10A power. Supports Raspberry Pi 5 official PD power)

[] Onboard LED charging and power indicator

[] Total 9600mAh close to 10000mAh

[] Output:  5V 5A

[] The product includes a PD protocol IC to prevent the 5A warning at Raspberry Pi 5 startup.


[] Onboard dedicated battery power meter chip I2C interface communication, supports reading battery voltage, remaining power and other parameters

【What's On Board】

1. Input Power 1 Type C :  5V/5A (power & charge)
6. MAX17043G: battery status read IC
2. Input Power 2 DC-5.5/2.5 :  5V/>=10A (power & charge)
7. PD Active IC
3. Key: Power control (Single-click Turn on/ Double-click Turn off)
8. Output indicator LEDs
4. Charge indicator LEDs
9.  I2C port, battery status read
5. I2C port:  battery status read
10. Output Port Type C  : 5V/5A


【Outline Dimensions】
