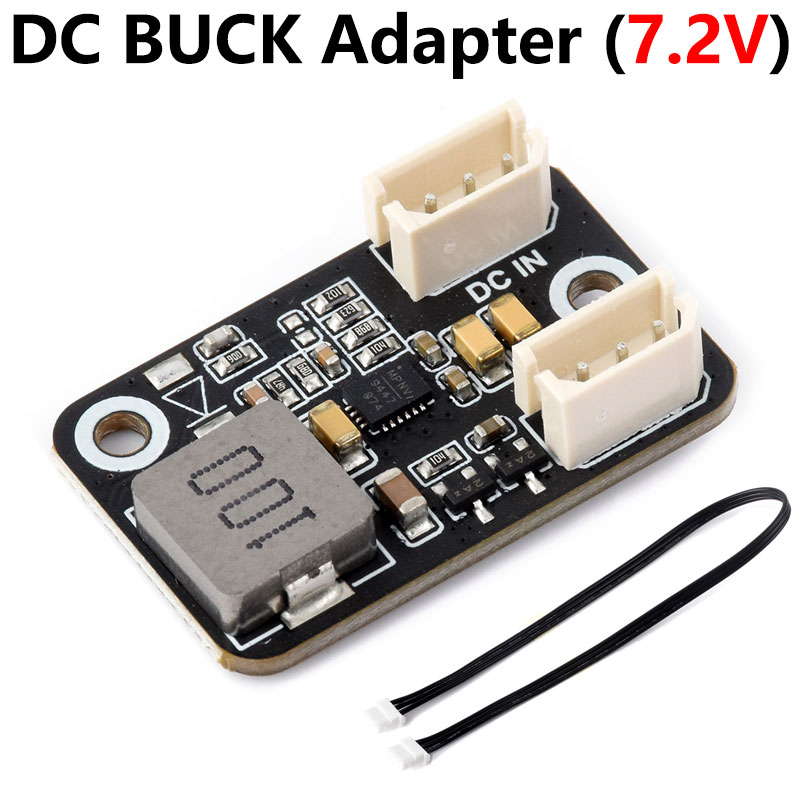

Bus Servo DC-BUCK-Adapter 7.2V/6V Voltage mini module For SC15/SC09 Servo

Bus Servo DC-BUCK-Adapter 7.2V/6V Voltage mini module For SC15/SC09 Servo

$3.49

Brand：Spotpear

SKU：0210005

Date：2024-05-30 16:15

Part Number：

DC-BUCK-Adapter-7.2V DC BUCK Adapter (6V)

No：

- +

In Stock

Buy It Now

Add to cart

Ask a Question

Copy Link

Serial Bus Servo DC Buck Adapter, Mini Module, Design for Serial Bus Servos, Easy to Use, 7.2V Buck Regulator

Servo Motor Recommend

MG90S-Servo

MG996R-Servo

WP90-Servo

WP5320-WP5335

SG90-Servo

SC09-Servo

SC15-Servo

ST3215-Servo

ST3215-HS-Servo-Motor

ST3020-Servo

ST3025-Servo

ST3215 Servo

ST3235-Servo

CF35-12

RSBL120-24

RSBL85-12/24

RSBL35-24-HS

RSBL45-24

DC-BUCK-Adapter-7.2V

Servo-Driver-with-ESP32

Bus-Servo-Adapter-A

DDSM-Driver-HAT-(A)

DDSM Driver HAT (B)

DDSM115

DDSM210

DDSM315

DDSM400

Metal-Flat-Key-Shaft-Flange-Plate-A

【Note】

】Work with General Driver for Robots，Can not use it alone

】For SC15 Servo、SC09 Servo SC/ST series 526 4-3P Port Bus Servo

Serial Bus Servo DC Buck Adapter

7.2V / 6V Buck Regulator Designed for Serial Bus Servos

Version Options

Features At A Glance

7.2V buck regulator, suitable for the servos such as SC15 Servo
6V buck regulator, suitable for the servos such as SC09 Servo
Mini size, more space-saving, easy to integrate into the projects
9 ~ 36V wide voltage input for more flexible project power selection
Simply connect it in series in the servo circuit to use

Specifications

INPUT VOLTAGE	DC 9 ~ 36V
OUTPUT VOLTAGE	DC 7.2V / 6V
INTERFACE	SC/ST series servo 5264-3P header
DIMENSIONS	21.50 × 34.00mm
MOUNTING HOLE SIZE	2.70mm
PEAK CURRENT	3A

Application Examples

Working With General Driver For Robots Driver Board, More Flexible For Project Power Selection, Suitable For Serial Bus Servos Such As SC15 Servo And SC09 Servo
